Product Description
API 150lb Cast Steel High Pressure Knife Gate Valve
Specifications
Design standard :DIN3352
Face to face dimensions:DIN3202(equal TO ISO5752)
Application:U-PVC,PE pipe,especially suitable for u
More Details
Design standard :DIN3352
Face to face dimensions:DIN3202(equal TO ISO5752)
Testing standard:DIN3352 Part 4
Application:U-PVC,PE pipe,especially suitable for underground pipe system
Working temperature:NBR <80°C
EPDM<120°C
FPM <160°C

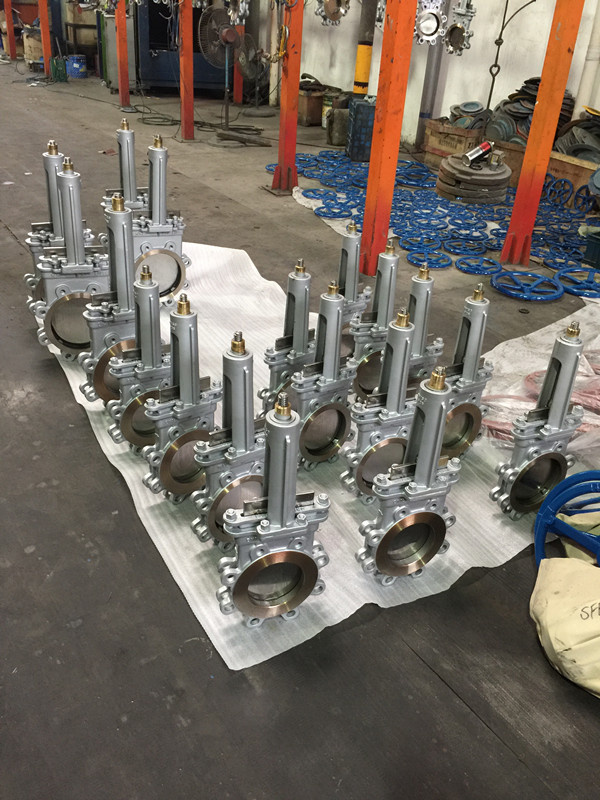

API 150lb Cast Steel High Pressure Knife Gate Valve
API 150lb Cast Steel High Pressure Knife Gate Valve
Technical characteristics:
Nominal pressure
1.6Mpa
1.0Mpa
Strength testing
2.4Mpa
1.5Mpa
Sealing testing
1.76Mpa
1.1Mpa
Main components and their materials:
No.
Name
Material
1
Body /bonnet,
Connection plate
Gray cast iron or ductile iron with internal and external epoxy resin coatings
2
Stem,disc,bolt rod
Stainless steel
3
Stem nut
ZCuAl10Fe3 Bronze
4
Shim
PTFE
5
Rack
ABS
6
U-shape seal,cover
NBR,EPDM or FPM
7
Connection bolt
Carbon steel
Kaiweixi (KVC) specializes in the development, research, manufacture, and sales of valves. Established in 2003 with a registered capital USD7, 000, 000, Kaiweixicovers an area of 104, 000 square meters and has 360 employees, with 51 advanced technicians and 11 senior engineers. Our products covering plug valves, ball valves, check valves, globe valves, gate valves and hydraulic control valves conforming to ANSI/API, DIN, BS, JIS, EN and GB standards have been welcomed by clients in China and abroad.
