Material: ASTM A105, 45# steel or 35CrMo alloy steel or as customer requested
(1) Standard: API 16A
(2) DN: 1"--4"
(3) Working Pressure: 2000psi--15000psi
(4) Working service: Oil, gas
(5) Working Temperature: -29c-121c (PU)
Certification Certification Number
ISO9001 02911Q20388R1S
API 16C 0166
API 16A 0274
API 6A 1198

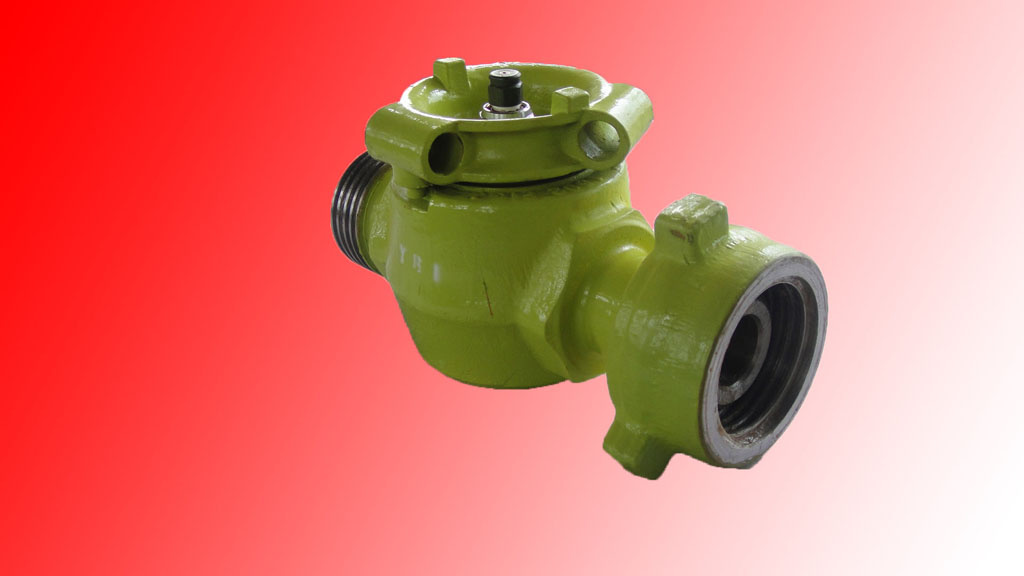

The plug valve is a necessary part that is utilized on the high pressure manifold for the cementing and fracturing operations in oil field and also suitable to control over the similar high pressure fluid. Featuring the compact structure, easy maintenance, small torque, rapid opening and easy operation, the plug valve is ideal for the cementing and fracturing manifolds.
The plug valve consists of the valve body, plug cap, plug and etc. The plug valve is available with the union 1502 inlet and outlet preparations (also available upon customer request). The cylinder body inner wall and side segments work together with the rubber seal segments to provide sealing.
The metal to metal sealing is available between the side segments and cylinder plug, featuring high precision and reliability.
The valve can be easily opened or closed even under the 10000psi high pressure.
Yancheng Runwei Petrochemical Machinery Co., Ltd. Was established in February 2000. Through the two standardized measurement assurance confirmations of GB/T19001: 2000 and ISO9001: 2000 quality certifications, our company won a total quality management standards issued by the Ministry of Agriculture. Furthermore, we have applied for American Petroleum Institute API6A, 16C certification, China International Patent & Brand Expo Seal Mud Gate Valve Special Gold Award, the Tenth China Patent New Technologies, New Products Expo Gold High-Pressure Elbows, Private Technology Enterprises in Jiangsu Province and AAA Credit Rating Certificate. Our company was named as Contract and Trustworthy Enterprise.
Our company mainly produces high pressure series valves, oil (gas) wellhead throttle kill manifolds, high-pressure mud manifold pressure plug valves, GB, American standard high-pressure oil azelaic, high pressure elbows, drilling, solid well products and accessories.
