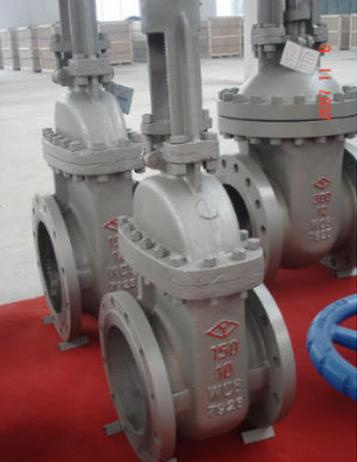

API 600 Cast Steel Flanged Raised Face Gate Valve

Price:	US $ 113.73/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Shijiazhuang Guang Man Long Valve Co., Ltd.

Showroom Product Company Profile

Cast steel API gate valve

MATERIAL

Body: ASTM A216 WCB
Disc: ASTM A216 WCB
Seat: ASTM A29M 1035
Stem: ASTM A276 420
Gasket: 304+graphite
Bonnet: ASTM A216 WCB
Upper sealing: ASTM A276 420
Filling: 304+graphite
York nut: ASTM A439-D2
Handwheel: ASTM A536 F33100

STANDARD

Design and manufacture: API600, ANSI B16.34
Face to face: ANSI B16.10
Flange end: ANSI B16.5
Inspection: API 598
Pressure-temp rating: ANSI B16.34
TEST PRESSURE
Shell test: 3.1mpa
Seal test: 2.2mpa
Back seal test: 2.2mpa

Prod Model:	Z41H
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Dn(Mm):	15mm-600mm
Connection Form:	Flange
Material:	Carbon Steel
Seal Surface:	Wedge Gate Valve
Thread Position Of Valve Rod:	Outside Gate Valve
Application:	Household Usage
