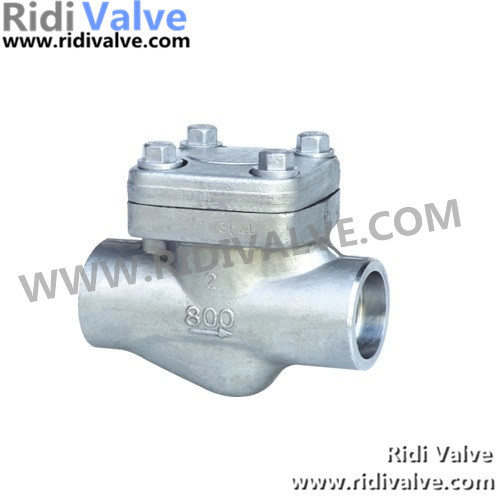

API 602 Forged Stainless Steel Piston Check Valve
Price: |
US $ 26/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,Western Union |
Forged Steel Stainless Steel Check Valves: Design API 602, ANSI B 16.34, Forged Steel Material, Pressure Class 800LB to 2500LB, Threaded & Socket Weld End, Size 1/2" to 2", Piston / Lift Type, Test Standard API 598.
Standards:
Design & Manufacture | API 602 |
Inspection & Test | API 598 |
Socket-weld Dimension | ASME B16.11 |
End Threads Dimension | ASME B1.20.1 |
Pressure-temperature Ratings | ASME B16.34 |
Standard Material Specifications
Part Name | Material |
1 | Body | ASTM A105 | ASTM A 182 F304 | ASTM A182 F316 |
2 | Disc | ASTM A105 | ASTM A 182 F304 | ASTM A182 F316 |
3 | Gasket | Graphite+SS304 | Graphite+SS316 | Graphite+SS316 |
4 | Bonnet | ASTM A105 | ASTM A 182 F304 | ASTM A182 F316 |
5 | Bolt | A193 B7 | A193 B8 | A193 B8 |
6 | Nut | A194 2H | A194 8 | A194 8 |
Prod Model: |
H61H |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Design Standard: |
API 602, ANSI B 16.34 |
Size: |
1/2" - 2" |
Test Standard: |
API 598 |
Function: |
Nrvg Silence |
Application: |
Household Usage |
Connection Form: |
Threaded End, Socket Weld End |
Structure: |
Lift / Piston Type |
Material: |
A105, A105n, F11, F304, F316 |
Pressure: |
Class 800lb - 2500lb |
ZHEJIANG RIDI VALVE Co., Ltd, Located in Chinese famous "Pumps & Valves Hometown" - Oubei Town, Wenzhou. It is a well-know valve producing enterprise including Valve Design, Development, Manufacture, Sales and After-sales Service.
RIDI mainly produce Gate Valves, Globe Valves, Check Valves, Ball Valves, Y Strainers and Bellow Sealed Valves. The Products are in accordance with international design & manufacturing standards. Such as API, ANSI, JPI, JIS, DIN, BS etc. Materials are available as WCB, WC6, WC9, LCB, CF8, CF8M, CF3, CF3M and so on.
The company covers an area of more than 3000 square meters. It has advanced manufacturing & processing equipments, inspection & testing facilities, paint lines etc. It has an experienced staff, from raw material to finished products, every process is strictly controlled and tested to ensure excellent quality.
RIDI has been in valve export business for about more than 10 years. The sales network spreads all over the world. Such as America, The United Kingdom, Germany, France, Japan, Italy, Spain, Holland, Korea, Turkey, Malaysia, Indonesia, India, Pakistan, Singapore, Arab, United Arab Emirates etc. The products are very salable and popular to most of our clients.
Welcome each new & old customer to visit RIDI, we will serve you wholeheartedly!
