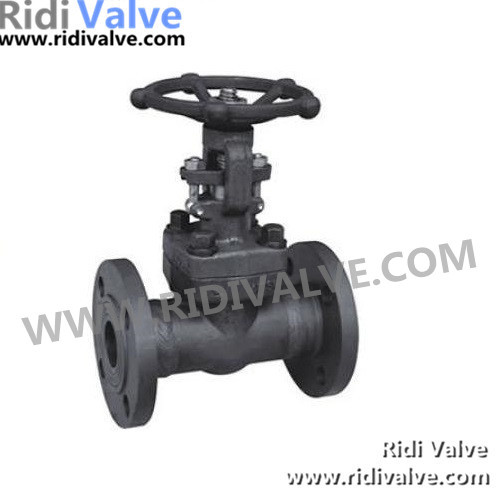

API 602 Forged Steel Flanged Gate Valve (Z41H)
Price: |
US $ 15/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,Western Union |
Forged Steel Flanged Gate Valves: API 602 Design, Bolted or Weled Bonnet, Flanged End ASME B 16.5, Size 1/2 - 2 Inch, Pressure Rating Class 150LB - 1500 LB or as customer required.
Part Name | Materials |
1 | Body | ASTM A105 | ASTM A 182 F304 | ASTM A182 F316 |
2 | Disc | ASTM A105 | ASTM A 182 F304 | ASTM A182 F316 |
3 | Stem | ASTM A182 F6 | ASTM A 182 F304 | ASTM A182 F316 |
4 | Bonnet | ASTM A105 | ASTM A 182 F304 | ASTM A182 F316 |
5 | Gland Flange | ASTM A105 | ASTM A 182 F304 | ASTM A182 F316 |
6 | Stem Nut | ASTM A276 410 |
7 | Hand Wheel | ASTM A197 |
Prod Model: |
Z41H |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Design: |
API 602, ANSI B 16.34 |
Face To Face Dimension: |
ANSI B 16.10 |
End Flange Dimension: |
ANSI B 16.5 |
Structures: |
Bolted Bonnet, Outside Screwed & Yoke (OS&Y) |
Size: |
1/2" - 2" |
Test Standard: |
API 598 |
Connection Form: |
Flange |
Seal Surface: |
Wedge Gate Valve |
Application: |
Household Usage |
Material: |
A105, A105n, F11, F304, F316 |
Thread Position Of Valve Rod: |
OS & Y |
Standard: |
API 602, Asme B 16.34 |
Pressure: |
Class 150lb - 1500lb |
ZHEJIANG RIDI VALVE Co., Ltd, Located in Chinese famous "Pumps & Valves Hometown" - Oubei Town, Wenzhou. It is a well-know valve producing enterprise including Valve Design, Development, Manufacture, Sales and After-sales Service.
RIDI mainly produce Gate Valves, Globe Valves, Check Valves, Ball Valves, Y Strainers and Bellow Sealed Valves. The Products are in accordance with international design & manufacturing standards. Such as API, ANSI, JPI, JIS, DIN, BS etc. Materials are available as WCB, WC6, WC9, LCB, CF8, CF8M, CF3, CF3M and so on.
The company covers an area of more than 3000 square meters. It has advanced manufacturing & processing equipments, inspection & testing facilities, paint lines etc. It has an experienced staff, from raw material to finished products, every process is strictly controlled and tested to ensure excellent quality.
RIDI has been in valve export business for about more than 10 years. The sales network spreads all over the world. Such as America, The United Kingdom, Germany, France, Japan, Italy, Spain, Holland, Korea, Turkey, Malaysia, Indonesia, India, Pakistan, Singapore, Arab, United Arab Emirates etc. The products are very salable and popular to most of our clients.
Welcome each new & old customer to visit RIDI, we will serve you wholeheartedly!
