Specifications:
1. BB - Bolted bonnet
2. OS&Y - outside screw and yoke
3. Bolted Gland
4. Metal-graphite Spiral wound gasket between the Bonnet & Body
5. Graphite stem packing
6. Socket welding: ANSI B16.11
Screw ends: ANSI B1.20.1
Butt welding: ANSI B16.25

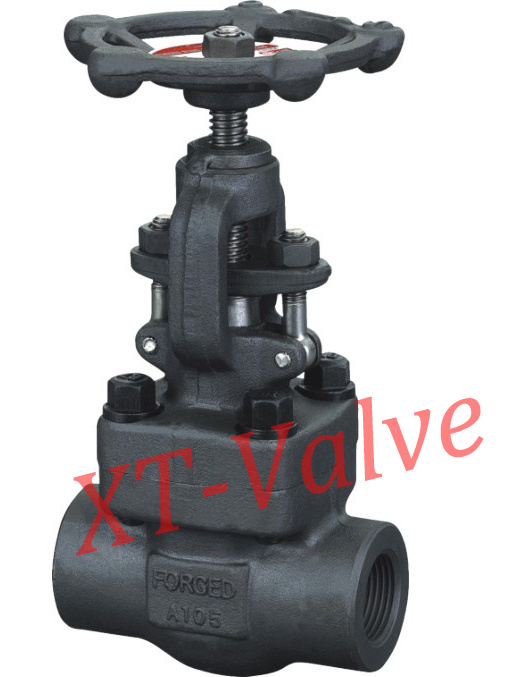

7. Forged Steel Gate Valves conform to API 602, BS5352 and ASME B 16.34. Each valve is inspected and tested in accordance with API 598, and marked per MSS SP25.
8. Main materials: A105, LF2, F5, F22, F304, F316, F347, F321, F51, Monel, 20# Alloy
|
NPS |
Conv. |
3/8" |
1/2" |
3/4" |
1" |
11/4" |
11/2" |
2" |
|
|
Full |
|
3/8" |
1/2" |
3/4" |
1" |
11/4" |
11/2" |
2" |
|
L |
79 |
79 |
92 |
111 |
120 |
120 |
140 |
178 |
|
H() |
158 |
158 |
169 |
197 |
236 |
246 |
283 |
330 |
|
W |
100 |
100 |
100 |
125 |
160 |
160 |
180 |
200 |
|
Weight |
Bolted |
2.1 |
2.0 |
2.3 |
4.3 |
5.9 |
6.9 |
11.1 |
15.2 |
|
Welded |
1.8 |
1.7 |
2.0 |
3.8 |
5.1 |
6.1 |
10.2 |
14.2
|
|
NO. |
Part Name |
CStoASTM |
AStoASTM |
SStoASTM |
|
A105 |
F22 |
F304(L) |
F316(L) |
|
1 |
Body |
A105 |
A182F22 |
A182F304(L) |
A182F316(L) |
|
2 |
Seat Ring |
A276420 |
A276304 |
A276304(L) |
A276316(L) |
|
3 |
Wedge |
A182F430&410 |
A182F304 |
A182F304(L) |
A182F316(L) |
|
4 |
Stem |
A182F6 |
A182F304 |
A182F304(L) |
A182F316(L) |
|
5 |
Gasket |
Corrugated SS+graphite |
SS+PTFE |
|
6 |
Bonnet |
A105 |
A276f304 |
A276F304(L) |
A276F316(L) |
|
7 |
Bonnet Bolt |
A193B7 |
A193B16 |
A193B8 |
A193B8M |
|
8 |
Pin |
A276420 |
A276 304 |
|
9 |
Gland |
A276410 |
A182F304(L) |
A182F316(L) |
|
10 |
Gland Eyebole |
A193B7 |
A193B16 |
A193B8 |
A193B8M |
|
11 |
Gland Flange |
A105 |
A182F11 |
A182F304(L) |
A182F316(L) |
|
12 |
Gland Nut |
A1942H |
A1944 |
A1948 |
A1948M |
|
13 |
Yoke Nut |
A276420 |
|
14 |
H.W.Lock Nut |
A1942H |
A1944 |
A1948 |
A1948M |
|
15 |
Nameplate |
SS |
|
16 |
Handwheel |
A197 |
|
17 |
Bearing Gasken |
A473431 |
|
|
18 |
Stem Packing |
Flexible |
PTFE |
|
Suitable Medium |
W.O.G.etc |
W.O.G.etc |
HNO 3 ,CH 3 OOH etc |
|
Suitable Temperature |
_29~425 degrees Celsius |
_29~550 degrees Celsius |
_29~200 degrees Celsius |
