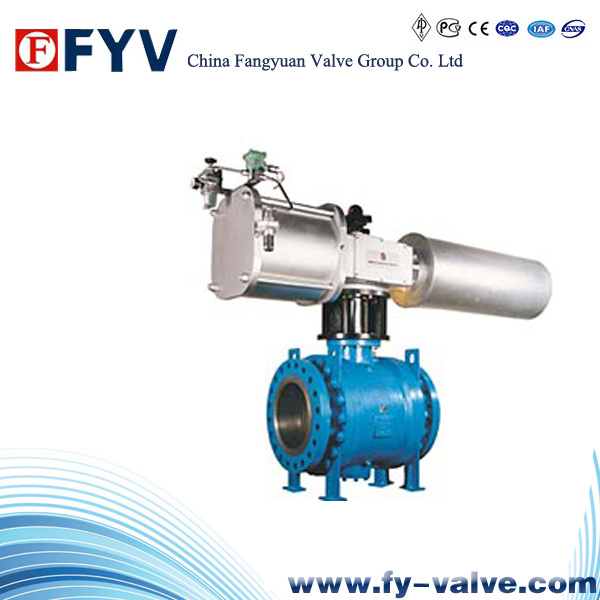

Type:
Welded Body construction, Fire Safe, Full / Reduced Port, Soft or Metal Seated, Antistatic device, Blowout proof stem, Lever operated, Gear Operated or Actuated.
Product Range*:
API pressure classes 2, 000 psi to 10, 000 psi also available.
Ends:
Flanged RF / RTJ; Butt Weld Ends; Hub Ends
Materials of Construction:
Carbon Steel, Stainless Steel, Low Temp Carbon Steel, Duplex, Super Duplex, Super Austenitic Stainless Steel and exotics like Inconel, Monel, Hastelloy etc.
Features:
Welded Body Construction eliminates body flanges, reduces potential leak paths and increases resistance to pipeline stresses. Also beneficial in fugitive emission and vacuum applications.
Double Body Sealing ensures positive body joint sealing against pipeline stresses. Also beneficial in fugitive emission and vacuum applications.
Multiple Sealing Stem with O-rings enhances stem sealing capabilities to atmosphere assisting in fugitive emission and vacuum applications.
ISO-5211 Top flange is available on all valves, enabling on-site actuator mounting and use of standard mounting hardware.
Blow out proof stem using a machined shoulder which ensures stem cannot "blow out" under pressure.
Antistatic design using spring loaded balls in stem which ensures constant contact between ball & stem and stem & body dissipating any static charge generated.
Fire Safe design valves are conforming to API 607 and API 6FA. Valves are tested and Fire Safe certified by Lloyds Register.
Double Block and Bleed Design.
Self Relieving seats for body cavity pressure relief.
Emergency Seat and Stem sealant injection systems offered on most valves.
Specially designed seats and seals in a variety of materials to suit specific applications.
Valves with extended stems, valves for underground applications etc. Also available.
| Size | ANSI Class Rating |
| 6'' to 60'' | 150#,300#,600# |
| 6'' to 48'' | 900#,1500# |
| 6'' to 24'' | 2500# |
| API pressure classes 2,000 psi to 10,000 psi also available. |
|
Fangyuan Valve Group Co. Ltd, seated at Wuxing Industrial Zone, Oubei, Yongjia County, so called as "Pump & Valve Village of China", close to the national scenic spot Nanxijiang River to the east and facing the downtown of Wenzhou City to the south, and established in 1998 with the former as Zhejiang Fangyuan Valve Manufacturing Co. Ltd, has got a great achievement via hard work and continual going forth ahead and become a magnate of plate gate valve from an unknown small enterprise and leads the future of this industry. Fangyuan Valve Group Co. Ltd was derived from Zhejiang Fangyuan Valve Manufacturing Co. Ltd in 2005 and holds 5 stock subsidiaries, three production bases in Wenzhou, Shanghai and Lishui and a cast base in Lishui, a total registered capital up to 4, 000, 000 USD, a total land area 110000m2, over 600 staff members, 60 of which are technicians, a digital process center and more than 350 sets of various middle and large equipments and an annual output up to 12000 tons.
This Group comes as a key enterprise among the said"Pump & Valve Village of China"and a well known enterprise in the national valve industry and specializes in the production of plate gate valve, gas valve, electric station valve etc., with the development, design and invention patent know-how up to the advanced technical level of the world and the leading level of the nation and some of the products used to replace the imported ones. This Group has been accredited to ISO9001, API6A/6D, CE, AZ etc., won the first prize of scientific advance of Zhejiang Province and elected as a member of the first-grade supply network of China Petroleum, a member of China Petrochemical Resource Market, a member of No. 1 Energy Network, a member for supply of the national electric power system, an appointed production enterprise by Chemical Equipment General Corp., a Wenzhou high-tech enterprise, a start enterprise of Yongjia County, one of the 30 powerful enterprises among the said village and a banking credit AAA grade enterprise in the successive recent years. It holds a powerful strength in the technical, management and market etc. Respects and a notable superiority in the severe market competition.
The products, approved by the nation and province early or late, have been elected as quality products of Zhejiang Province and well-known ones of Wenzhou. This Group follows the guide policy of"takeing people as the base, managing the company with laws, prospecting the enterprise with quality, continuing innovations"and makes the products well sold to all over the country and USA, Canada, the Middle East, Europe etc. World markets, greatly favored by the users therein. Therefore a solid basis has been made for the further open-up of the world market, for the making of Fangyuan brand, for the national industrial progression and for the great target to create a valve magnate of China and step forward to the 50 powerful valve companies of the world.
Slab gate valve: Slab gate and expanding gate, double sealed upstream and downstream design, double block and bleed open and closed design. Size: DN50~DN1400, pressure: PN16~PN420, handwheel, gear, electric, pneumatic.
Fully welded ball valve.
Forged steel valve. Material: A105, LF2, F11, F22, F5, F304, F316, F321 etc.
