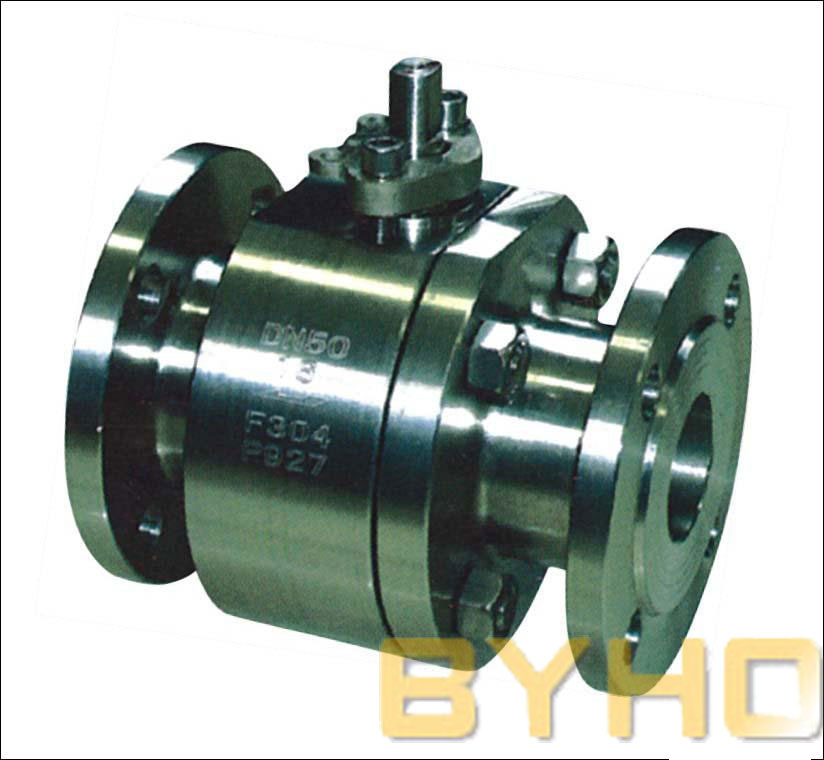

API 608 Forged Steel Flanged Floating Ball Valve

API 608 Forged Steel Flanged Floating Ball Valve
Price: US $ 28-285/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T

Bolted bonnet,Two-piece Body,Floating Ball
Full or Reduced bore,Blowout Proof Stem
Fire safe and Anti static
Stainless steel ball
ASTM A216 WCB,A351 CF8,A351 CF8M,
A351 CF3,A351 CF3M,A351 CN7M


Materials

NO.

Part name

Material

13

Handle

Carbon steel

12

Lock nut

Carbon steel

11

Gland nut

Carbon steel

10

Thrust washer

PTFE/NYLON

09

Gland bush

Stainless steel

08

Stem

Stainless steel



NO.

Part name

WCB

LCB

07

Stud and nut

A193 Gr B7/A194 Gr 2H

A320 Gr L7/A194 Gr 4

06

Packing

Graphite/ptfe

Graphite/ptfe

05

Ball seat

PTFE/RPTFE/NYLON

SPTFE/RPTFE/NYLON

04

Gasket

Grafoil/spiral wound

Grafoil/spiral wound

03

Ball

A182 F6a

A182 F304

02

R-body

A216 Gr WCB

A352 Gr LCB

01

L-body

A216 Gr WCB

A352 Gr LCB



NO.

Part name

CF8

CF8M

07

Stud and nut

A193 Gr B16/A194 Gr 4/7

A193 Gr B7/A194 Gr 2H

06

Packing

Graphite/ptfe

Graphite/ptfe

05

Ball seat

PTFE/RPTFE/NYLON

PTFE/RPTFE/NYLON

04

Gasket

Grafoil/spiral wound

Grafoil/spiral wound

03

Ball

A182 F304

A182 F316

02

R-body

A351 Gr CF8

A351 Gr CF8M

01

L-body

A351 Gr CF8

A351 Gr CF8M


CLASS 150~300 FLOATING BALL VALVE


Dimensions

Class 150

Size

inch

1/2

3/4

1

1-1/2

2

2-1/2

3

4

6

8

L-RF

mm

108

117

127

165

178

191

203

229

394

457

L1-BW

mm

140

152

165

190

216

241

283

305

457

521

L2-RTJ

mm

-

-

140

178

191

203

216

241

406

470

B

mm

13

19

25

38

51

64

76

102

152

203

H

mm

65

70

80

95

110

135

145

170

235

275

K

mm

150

155

160

180

200

225

325

350

500

600

WT.

Kg

3

4

5

8

12

21

26

43

80

155



Dimensions

Class 300

Size

inch

1/2

3/4

1

1-1/2

2

2-1/2

3

4

6

8

L-RF

mm

140

152

165

190

216

241

283

305

403

502

L1-BW

mm

140

152

165

191

216

241

283

305

457

521

L2-RTJ

mm

151

165

178

203

232

257

298

321

419

518

B

mm

13

19

25

38

51

64

76

102

152

203

H

mm

70

85

90

105

120

145

160

195

250

290

K

mm

155

160

180

200

225

325

350

500

600

700

WT.

Kg

3

5

7

13

15

28

32

55

105

170



Prod Model: Q41F
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Design And Manufacture: API 608,API 6D,BS5351
Face To Face: ANSI B16.10,API 6D
Flanged End: ANSI B16.5
Fire-Safe: API 607,API 6fa
Test And Inspection: API 598, API 6D
Connection Form: Flange
Channel: Straight Through Type
Structure: Floating Ball Valve
Type: Floating Ball Valve
Application: Household Usage
Material: F304,F316,F321,F51
Zhejiang BYHO Valve Co., Ltd. is located in Ou Bei Twon of Wenzhou City, China known as China Pump & Valve country. Our company has advanced manufacturing equipment such as CNC center, large-scale vertical lathe, borer as well as professional testing equipment.

Our company professionally produce gate valves, globe valves, check valves, ball valves, butterfly valves, plug valves and strainers in accordance with the standards like API 6D, API 600, API 602, API 607 DIN, and so on. Such special materials as WCB, LCB, LCC, WC6, WC9, C5, C12, CF8, CF8M, CN7M, F51, F11, F22, F51 or F53 can be selected according to customers' requirements.

Our company focus on informational construction, and consider everything from the angel of customers and work on information collection and resource share issues. Our company adopts leading management software to monitor the whole course of production and sales part and informs customers of product information and production schedule that customers mostly concerned about so that customer can get to know production schedule of the order.

Our company always put our attention on the development of the valve industry and take the lead to maintain the trace and pursuit of the latest technology in this industry and play an important role in the industry information promoter and technology service disseminator.
