Specifications
API 6A Adjustable Choke Valve
1,Working Pressure:5000-15000 PSI
2,Temp:L,N,P,S,T,U,V
3,Material: FF
4,API Level:PSL1~ PSL

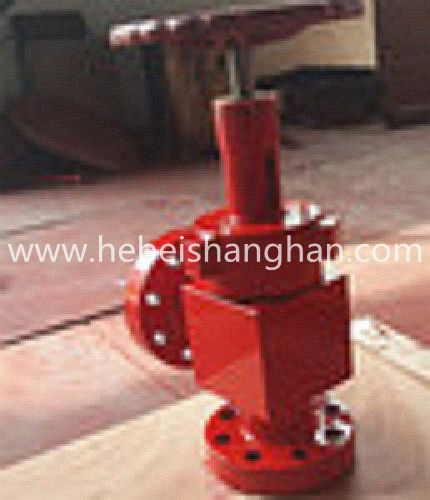

API 6A Adjustable Choke Valve
Brief Introduciton
Choke valves fall into five types: fixed choke valve, needle choke valve, plunger choke valve, cage-type choke valve, orifice choke valve. The materials of the main body and the components strictly comply with the API Spec 6A standards and NACE MR-0175 standards. These valves are widely appliced to off-shore and land oil well drilling operations and to oil production.
Features
1. Fitted with a valve-opening indicator;
2. Designed with relief valve;
3. Designed with plane thrust bearing structure;
4. Designed with metal-to-metal sealing structure;
5. Fitted with valve stem sealed by lip-shaped packing made from special material;
6. Made of high wear-resisting and corrosion-resisting materials, both the valce core and bean being durable;
7. Designed and manufactured strictly in accordance with API Spec 6A and NACE MR-0175 standards.
Technical Parameter
ND | 1 13/16" - 4 1/16" | Spec. Level | PSL3-3G |
| Operatng Pressure | 2000-15000psi | Performance Requirement | PR1-2 |
| Valve Opening | 1", 1 13/16" , 2 1/2" | Product Standards | API 6A, NACE MR-0175 |
| Material Grade | AA-HH | Applicable Operating Media | Oil, natural gas, killing fluid, water |
| Rated Temperature Level | K, L, P, R, S, T, U | Tyoe of Connection | Flange/union |
Specification | PSI | Size |
| A | B | Ring |
| 1"Maximum Orifice |
| 2 1/16"-5000 Flange | 5000 | 203 | 175 | R24 |
| 2 9/16"-5000 Flange | 5000 | 210 | 176 | R27 |
| 2 1/16"-10000 Flange | 10000 | 224 | 195 | Bx152 |
| 2 9/16"-10000 Flange | 10000 | 237 | 208 | Bx153 |
| 2 1/16"-15000 Flange | 15000 | 262 | 225 | Bx152 |
| 2 9/16"-15000 Flange | 15000 | 298 | 267 | Bx153 |
| 2"Maximum Orifice |
| 2 9/16"-5000 Flange | 5000 | 265 | 195 | R27 |
| 2 9/16"-10000 Flange | 10000 | 298 | 264 | Bx153 |
| 2 9/16"-15000 Flange | 15000 | 298 | 264 | Bx153 |
| 3 1/8"-3000 Flange | 3000 | 298 | 225 | R31 |
| 3 1/8"-5000 Flange | 5000 | 298 | 225 | R35 |
| 3 1/16"-10000 Flange | 10000 | 298 | 264 | Bx154 |
| 3 1/16"-15000 Flange | 15000 | 298 | 264 | Bx154 |
| 4 1/16"-3000 Flange | 3000 | 298 | 264 | R37 |
| 4 1/16"-5000 Flange | 5000 | 298 | 264 | R39 |
| 4 1/16"-10000 Flange | 10000 | 350 | 289 | Bx155 |
| 3"Maximum Orifice |
| 4 1/16"-3000 Flange | 3000 | 298 | 264 | R37 |
| 4 1/16"-5000 Flange | 5000 | 298 | 264 |
|
