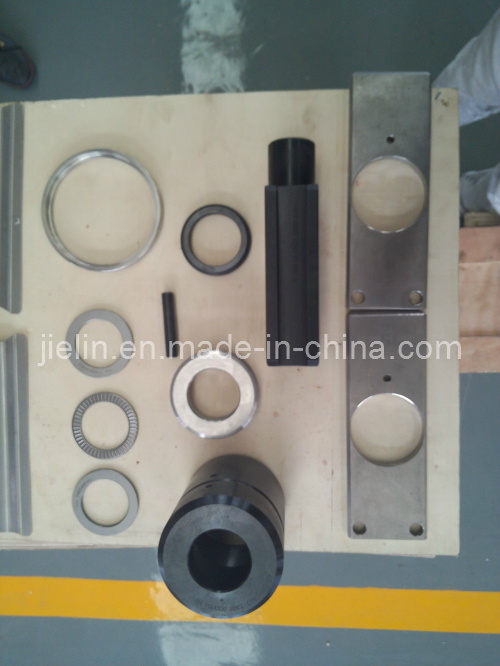

API 6A Gate Valve Body Parts

API 6A Gate Valve Body Parts
Price: Negotiable/Piece
Trade Terms: FOB,CIF
Min Order: 1/Set
Pay Type: L/C,T/T
API 6A FC gate valves are designed and manufactured according to API 6A and NACE MRO175 Standards. Our gate valves can be interchangeable with Cameron FC series gate valves. The sealing surface of valve seat and gate is overlaid (surfaced) with hard alloy, resistant to corrosion and abrasion. It is available in flanged or threaded ends in standard bore sizes from 1-13/16"-7-1/16" with working pressure of 3000 psi to 15000 psi. Stem is designed to be rising stem and non-rising type, and the stem sealing can be changed under pressure. Besides, drive mode falls into manual, hydraulic and gear.



DIMENTIONS Size (inch)
1-13/16 2-1/16 2-9/16 3-1/16 3-1/8 4-1/16 5-1/8 7-1/16
A-End to End 3000 psi Screwed   10-5/8 12-3/8   13-5/8
3000 psi Flanged   14-5/8 16-5/8   17-1/8 20-1/8
5000 psi Screwed   10-5/8 12-3/8   13-5/8
5000 psi Flanged   14-5/8 16-5/8   18-5/8 21-5/8
10000 psi Flanged 18-1/4 20-1/2 22-1/4 24-3/8   26-3/8 29-1/4 35-3/8
15000 psi Flanged 18 19 21 23-9/16   29 35-3/8
B-Extreme Width of Body 3000 psi Flanged   6-3/4 7-5/8   7-1/2 10-1/2
5000 psi Flanged   7 8-3/16   9-1/4 10-13/16
10000 psi Flanged 9-1/16 9-3/8 9-13/16 10-1/4   12-13/16 15-1/4 18-13/16
15000 psi Flanged 9-7/8 9-7/8 11-1/2 13-9/16   15-3/8 16-3/8 19-4/5
C-Center of Bore to Top of Stem Adapter 3000 psi Flanged   13 15-13/16   16 18-7/16
5000 psi Flanged   15-1/8 15-15/16   13/16 18-7/16
10000 psi Flanged 15-1/8 15-1/8 15-13/16 16-7/8 16 19-11/16 22 30-1/2
15000 psi Flanged 15-1/8 15-1/8 17-3/16 20-15/16 13/16 22-13/16 13-13/16 31
D-Center of Bore to Bottom of Body 3000 psi Flanged   5-5/8 6-1/2     9-1/8
5000 psi Flanged   5-5/8 6-1/2     9-1/8
10000 psi Flanged 5-3/4 5-7/8 6-13/16 8-1/16 7-3/8 10-1/16 12-1/2 16-3/8
15000 psi Flanged 5-7/8 6-1/8 7-5/16 9-1/4 7-3/8 10-3/16 13-13/16 17-3/8
E-Center of Bore to Top of Handwheel 3000 psi Flanged   15-3/8 16-1/8     20-11/16
5000 psi Flanged   17-3/8 18-1/8     20-11/16
10000 psi Flanged 17-3/8 17-3/8 18-1/8 18-1/16 19-1/16 20-15/16 26 34-3/8
15000 psi Flanged 17-3/8 17-3/8 19-9-16 22-3/16 19-1/16 24-1/16 26-13/16 35-1/2
F-Handwhell O.D 3000 psi Flanged   14 14     18-1/2
5000 psi Flanged   14 14     18-1/2
10000 psi Flanged 14 18-1/2 18-1/2 24 14 24 24-1/2 33
15000 psi Flanged 18-1/2 18-1/2 18-1/2 24 18-1/2 24 24-1/2 34-1/4
G-Noof Turms Open or Close 3000 psi Flanged   12-1/2 15-1/4     23-1/2
5000 psi Flanged   12-1/2 15-1/4     23-1/2
10000 psi Flanged 12-1/2 12-1/2 15-1/4 18-1/4 18-1/4 23-1/2
15000 psi Flanged 12-1/2 12-1/2 15-1/4 15-1/4 18-1/4 29-1/4
Prod Model: api 6a
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Specification: API 6A
Model: FC
Connection Form: Flange
Material: Stainless Steel
Seal Surface: Wedge Gate Valve
Thread Position Of Valve Rod: Inside Gate Valve
Application: Water Industrial Usage
Jianhu jielin petrochemical machinery Co., Ltd. is located in jianhu private industrial park, jiangsu province, known as a land flowing with milk and honey. It is a modern large-sized enterprise specialized in researching and developing, manufacturing and selling various oilfield machines and spare parts. Our company has been authorized by China classification society for application of ship products and accessories as well as certificates of API-6A, 16A and 16c, etc. We mainly produces API 6A high and middle pressure valves, with the technical performance being that nominal working pressure is pn2.5-105MPa and nominal diameter is dn3-1000mm; In addition, our company also manufactures API 6A wellhead equipment for oil (gas) extraction, choke and kill manifold, mud manifold, drilling accessories and blowout preventer, etc.

With advanced technological equipment and a strong technical strength, our products in accordance with international standard ISO/df, u. S. ANSI and API, national standard GB and other professional standards. Also our products are widely used in oilfield, chemical, shipbuilding, metallurgic and power station, etc., besides, special products can also be provided according to user demand.

Our company always adheres to the concept of "management enhancement, quality emphasis, market exploitation and brand establishmen". With quality products, favorable prices and premium services, we sincerely seek cooperation with friends from home and abroad.
