API 6A Gate Valve

API 6A Gate Valve
Price: Negotiable
Min Order: 1
TEC gate valves are designed to successfully meet customer demands for performance, endurance, ease of maintenance and cost-effectiveness. TEC valves meet or exceed the requirements of API Specifications 6A, 6A SSV/USV and 17D with working pressures from 2, 000 to 20, 000 psi. The trims come in for all types of oil and gas service. These valves are available in sizes from 2 1/6" to 4 1/6", in a temperature range from -60 deg. C to +120 deg. C (-75 deg. F to +250 deg. F), and qualifies by API 6A PR2 App F.

The floating seat allows bi-directional use, quick and easy field repair and low torque for opening/closing. The one-piece precision-machined floating slab gate utilizes floating seats that co-opt line pressure to supply the sealing force. Excessive force is not required for closing and sealing and smooth operation can be assured during extreme thermal cycles. Selective Backseat provides unparalleled safety during venting, lubrication, allows stem packing replacement without removing valve from service. A routine maintenance program keeps repairs to a minimum, and vital valve components may be replaced when necessary without the use of special tools.

Features & Benefits

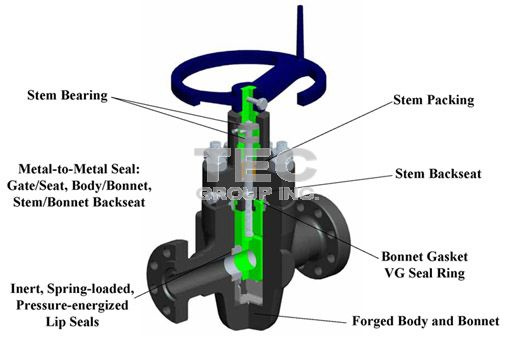

1. Metal-to-Metal Seals
Seat-to-gate Seat-to-body Bonnet/bonnet Stem backseat

2. Seat to Body Seal
Inert, spring-loaded, pressure-energized lip seals which are installed between each seat and body. These seals assist in low-pressure sealing and protect the body and seal areas from particle contaminants.

3. Selective Backseat
Provides unparalleled safety during venting, lubrication, and stem packing replacement
Premature backseating is prevented by a positive stop in the bearing cap that controls stem travel.
This design feature also protects the metal-to-metal sealing surface
Allows stem packing replacement without removing valve from service
Backseat can be employed without shifting position of the gate

4. Full Bore through conduit design

5. QPQ treatment, tungsten carbide coating and lapping on gate and seat provide extended life expectancy

6. Stem packing is unaffected by H2S, CO2, amines and chlorides

7. Stem Shear Pin Protects valve stem from being damaged due to excessive torque

8. Non-rising Stem Reduces tearing of stem packing; ACME thread enhances durability and lowers torque requirements

9. Heavy duty bearing (tapered roller bearing) for low torque and easy operation

10. Threaded Packing Gland
Transfers stem packing loads to the bonnet, protecting the bearing assemblies and allowing replacement of bearings and shear pin at full pressure differential
TEC Gate Valve Trim Chart
Service Conditions

API Trims

Body & Bonnet

Gates & Seats

Stem

Bonnet Gasket seal

General Service
Non-corrosive

AA

4130

AlloyNitrided

Alloy Nitrided

304 or 316SS

General Service
Slightly Corrosive

BB

4130

410SS Nitrided

17-4PHSS

304 or 316SS

General Service
Moderately Corrosive

CC

410SS

410SS Nitrided

17-4PHSS

304 or 316SS

Sour Service
Non-corrosive

DD

4130

Alloy Nitrided

Alloy Nitrided

304 or 316SS

Sour Service
Slightly Corrosive

EE

4130

410SS Nitrided

17-4PHSS

304 or 316SS

Sour Service
Highly Corrosive

EE-1

4130

410SS w/Hardfacing
& 410SS Nitrided

Inconel 718

304 or 316SS

Sour Service
Moderately Corrosive

FF

410

410SS Nitrided

17-4PHSS

304 or 316SS

Sour Service
Highly Corrosive,

FF-1

410 Stainless steel

410SS w/Hardfacing
& 410SS Nitrided

Inconel 718

304 or 316SS

Sour Service
Highly Corrosive

HH

Alloy Steel w/625 Claded

Inconel 718/625 w/Hard facing

Inconel 718

825

Custom trim valves may be ordered for your specific application. When ordering custom trim valves, provide the minimal information to facilitate recommendation of the trim that best suits your needs
1) Temperature Range      2) Corrosive or Abrasive Conditions
3) Pressure Rating             4) Operating Environment

Oilfield Equipments and Machinery

TEC GROUP INC. Has focused business in Designing and Manufacturing of Oilfield Products, including the Wellhead & Christmas Tree Production Equipments, Pressure and Flow Control Products, Drilling Tools, Oil Steel Pipes, Downhole Completion Tools, Drilling Rig and Components, Wireline and Coiled Tubing Tools, Piping Materials, Special Alloy Materials Supply and Forging, to name a few.

Highlights

Since oil well drilling conditions are becoming more and more hostile with high pressure and highly corrosive environment, oilfield equipments demand advanced design and materials. TEC has developed many equipments and tools for high-pressure and/or high-corrosion applications.

Wellhead/Tree production and Pressure Control equipments and components are engineered for operating pressure up to 20, 000 PSI, PSL1~4, PR1~2. Besides conventional design, we have developed advanced products, for example Solid Block X-mas Tree system, which has less leak paths to withstand greater external forces. We are able to produce equipments for Sulfide Service in compliance with NACE MR 01-75. We have developed many kinds of CRA products for extremely corrosive environment, such as Inconel 718 Tubing Hanger, Incoloy 825 Sealing Ring, Inconel 625 Ring Joint Gaskets, Hastelloy Flange, Incoloy 825 Hydraulic Control Line, Incoloy 825 Sliding Sleeve, to name a few.

All of our Downhole Completion Tools are designed for maximum erosion resistance and all are 10, 000 PSI differentially rated. TEC's Tubing Retrievable Subsurface Safety Valve is developed to 3S (anti-sulfur stress fracture operation) downhole operational mode as stated in API standard.

Manufacturing Abilities/Quality Control

Producing processes of some special equipments and components are very difficult to control, such as those in Compact Design, and those made of special alloy (Inconel, Incoloy, Hastelloy etc. ) for Sulfide Service. Such cases are exactly where our power is manifested.

We have extensive forging and machining experience for those components, such as Solid Block Valve (over 12 tons, for Solid block X-mass Tree as mentioned above) and our CRA products (Inconel 718 Tubing Hangers, 400Kg etc., as mentioned above); And we also have produced many high quality drilling tools by well controlled forging process. Therefore, whatever your needed products are, we know exactly how to select good raw material, to closely controlled remelting procedures, to do the exact time-temperature-forging cycles, and to control the forging ratios, we know when and how to perform a rigorous inspection to avoid any structural defects. By the experiences and quality control process, as well as our in-depth understanding of the API and other related standards, we are able to ensure the final product with superior metallurgical properties and thus a maximum strength, toughness and corrosion resistance.

Another example of our manufacturing ability is to produce tubular products made of high strength steel X80, for API 5L Line Pipes, Risers etc. Which has properties of high yield strength, high tensile strength, high elongation and high impact etc. And therefore is very difficult to process.

Yet another example is, for corrosion services, technology of Weld Cladding with CRA, which is applied to equipment such as Wellhead/Tree, chokes, valves, Blowout Preventers etc. We are able to produce a weld deposit of consistent high quality and depth with close dimensional tolerances and surface finish of 500 microns.

We do believe that, whether your primary consideration in selecting oilfield equipments is cost, safety, or corrosion resistance, we have them for you.
