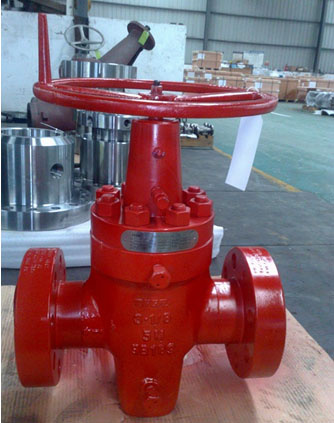

API 6A Gate Valve
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P |
Gate valves can be interchanged with Cameron FC style gate valve and fully in accordance with API Spec. 6A, made from modern materials and manufacturing techniques. They are robust, easy to maintain in ther field. Reasonable price and low cost of spares make them the most cost effective valve on the market.
Features
Manufactured and Tested in Accordance with API. 6A and supplied with Full Certification
Simple structure and renewable gate and seat assembly
Forged body and bonnet
A True Bi-Directional Valve
Gate to seat, seat to body, bonnet seal and stem backseat are metal to metal sealing
The sealing surface of the gate and seat are hardfaced for wear and corrosion resistance.
Grease fitting in bonnet for easy lubrication
One-piece and double-acting gate with long service life
Both thrust bearings with large load capacity and composite rubber-plastic stem lip packing reduces operating torque
Stem packing replaceable under full line pressure when valve is in closed position
Working Pressure: 2000PSI~20000PSI
Nominal Bore: 1.13/16"~9" (46mm~230mm)
Working Medium: Oil\natural gas\mud and gas containing H2S\CO2
Working Temperature: -46° C~121° C(Class LU)
Material Class: AA\BB\CC\DD\EE\FF\HH
Specification level: PSL1-4
Performance Requirement: PR1-2
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Connection Form: |
Flange |
| Material: |
Carbon Steel |
| Seal Surface: |
Parallel Gate Valve |
| Thread Position Of Valve Rod: |
Outside Gate Valve |
| Application: |
Industrial Usage |
Teer Valve Co., Ltd, a specialized export-oriented valve manufacturer, is located in Oubei, Wenzhou, the home town of pump & valve in China. Established in 2001 with a registration capital of 38, 800, 000.00 RMB, Teer valve covers a total construction area of 48800 m2 with three factories, that is one Ball, Gate, Globe & Check valve factory, one API 602 forged valve factory and one share holding ball factory.
Integrating R&D, manufacture, sales and after-sales service as a whole, Teer' mainly produce Ball valves, Gate valves, Globe valves, Check valves, Butterfly valves and Plug valves with diameter, working pressure and temperature range up to DN1500(60"), PN42Mpa (Class2500) and -196° To 650° Respectively, employing materials from conventional carbon steel, stainless steel, alloy steel, to alloy, such as WCB, A105, WCC, LCB, LCC, LF2, WC1, WC5, WC6, WC9, C5, C12, F11, LF2, F22, 304, 316, 304L, 316L, CF8, CF8M, CF3, CF8C, CN7M, CF3M, Inconel and Monel, etc.
Teer possesses advanced machining and manufacturing facilities, such as CNC lathe, CNC miller, CNC driller, heat treatment furnace, plasma spray welding, painting & drying line, ultrasonic cleaner and other common NDT equipments. It has also set up tool, pattern, finished and semi-finished product warehouses.
Capable of adopting many international standards such as Chinese GB, ANSI, API, BS, DIN, JIS to it's product design and manufacturing and due to persistent pursuit and accumulation to quality, Teer's Quality Management System and products have passed ISO9001-2008 Quality System Certification (DNV), ISO14001-2004, OHSAS18001-1999, API 6D & API600 certification of American Petroleum Institute, CE certification of EU (TUV), Manufacture License of Special Equipemnt (TS) of P. R. China. Teer uses tailor-designed ERP system to control it's daily operation, workshop management and QA & QC procedure.
Teer products are widely used in petroleum, gas, chemical and power industries and over 95% of its products are exported to overseas markets, such as Europe, Middle East, Southeast Asia and South America. It has been approved by Oman PDO, Valve Supply Network for National Power System (China), CHEMCHINA as network supplier.
