API 6A Hydraulic Drive Safety Valve

API 6A Hydraulic Drive Safety Valve
Price: US $ 500-5000/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: T/T

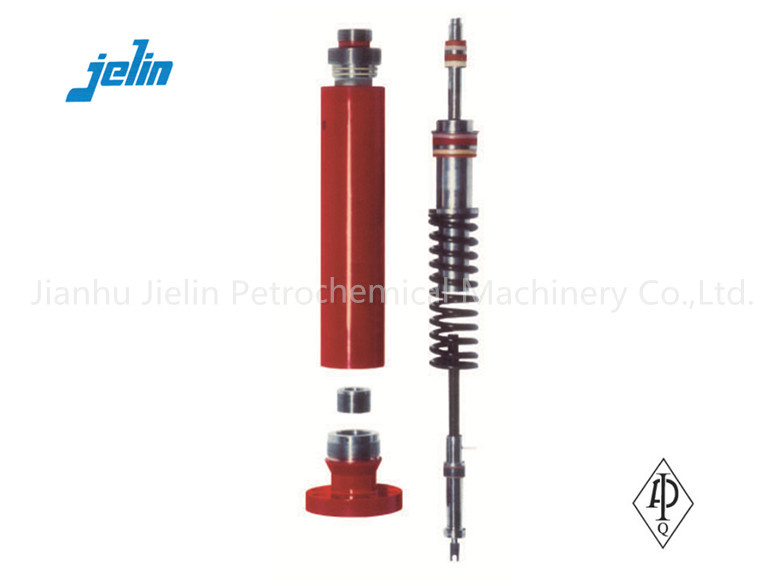

Hydraulic drive safety valve is an execution unit in security system, divided into two parts: safety valve and hydraulic unit driver. High pressure oil enters the cavity on top of driver, thus compressing the spring below to open the valveWhen well head equipment bears dangerous pressure, control gear releases the pressure in hydraulic cylinder according to the signal transmitted by sensor, and the spring pushes valve stem to close valve and well head equipment, to ensure the security of flow equipment.
With advanced technological equipment and a strong technical strength, our products in accordance with international standard ISO/DF, U.S. ANSI and API, national standard GB and other professional standards. Also our products are widely used in oilfield, chemical, shipbuilding, metallurgic and power station, etc., besides, special products can also be provided according to user demand.
Our company always adheres to the concept of "management enhancement, quality emphasis, market exploitation and brand establishment". With quality products, favorable prices and premium services, we sincerely seek cooperation with friends from home and abroad.
Working Pressure Psi2000~20000
Nominal bore1 13/16"~471/16"
Working mediumoil,natural gas,mud and gas
Working temperature-46~+121
Material classAA~HH
Specification levelPSL1~4
Performance LevelPR1~2

Prod Model: api6a
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Working Pressure Psi: 2000~20000
Nominal Bore: 1 13/16"~471/16"
Working Medium: Oil,Natural Gas,Mud and Gas
Working Temperature: -46~+121
Material Class: AA~Hh
Specification Level: Psl1~4
Performance Level: Pr1~2
Jianhu jielin petrochemical machinery Co., Ltd. is located in jianhu private industrial park, jiangsu province, known as a land flowing with milk and honey. It is a modern large-sized enterprise specialized in researching and developing, manufacturing and selling various oilfield machines and spare parts. Our company has been authorized by China classification society for application of ship products and accessories as well as certificates of API-6A, 16A and 16c, etc. We mainly produces API 6A high and middle pressure valves, with the technical performance being that nominal working pressure is pn2.5-105MPa and nominal diameter is dn3-1000mm; In addition, our company also manufactures API 6A wellhead equipment for oil (gas) extraction, choke and kill manifold, mud manifold, drilling accessories and blowout preventer, etc.

With advanced technological equipment and a strong technical strength, our products in accordance with international standard ISO/df, u. S. ANSI and API, national standard GB and other professional standards. Also our products are widely used in oilfield, chemical, shipbuilding, metallurgic and power station, etc., besides, special products can also be provided according to user demand.

Our company always adheres to the concept of "management enhancement, quality emphasis, market exploitation and brand establishmen". With quality products, favorable prices and premium services, we sincerely seek cooperation with friends from home and abroad.
