API 6A Hydraulic Surface Safety Valve - Ssv

API 6A Hydraulic Surface Safety Valve - Ssv
Price: US $ 10/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Paypal,Money Gram
Size:1-13/16" ~ 7-1/16"
Temperature:K ~ Y
Pressure:2000 ~ 20000psi
PR:1 ~ 2
PSL:1 ~ 3
Matl:AA/DD, BB/EE, CC/FF
Hits:32

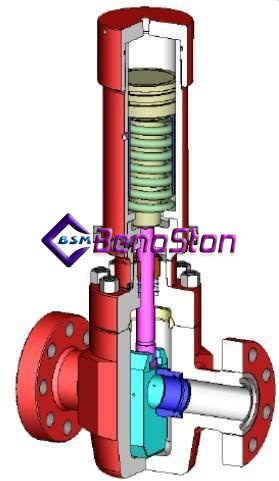

Hydraulic Surface Safety Valve - SSV is designed to quick closure due
to a pipe leak or burst, equipment malfunction, fire, or similar emergency.
The Surface safety valve (ssv) is normally closed,pressure needs to be applied t
o the actuator to compress the spring and open the valve.

BENOSTON's Hydraulic Surface Safety Valve feature:
1. Visual position indicator.


2. Optional fire protection (fusible loop).


3. Separate stems can make them easy disassembling and maintaining.


4. Has a compoud-springs designing to improve its stability.
The pressure needed to keep the valve open can be provided with a simple
hand pump which, in an emergency, is bled off on the rig floor. However,
a more sophisticated system called an emergency shut down (ESD) is
recommended because it allows the actuator to be activated remotely.

BENOSTON designs and manufactures hydraulic actuator and slab gate
valve,assembled safety valve with consideration of optimal safety and economic.
The available safety valve sizes from 1-13/16" through to 7-1/16",of pressure
rating from 2000psi to 20000psi.
SIZE10000 psi15000 psi20000 psi
1-13/16″----
2-1/16″----
2-9/16″----
3-1/16″--
4-1/16″
5-1/8″
7-1/16″x 6-3/8″
7-1/16″
Prod Model: BSM-7
Size: 1-13/16" ~ 7-1/16"
Temperature: K ~ Y
Psl: 1 ~ 3
Pr: 1 ~ 2
Hits: 32
BenoSton is a factory specialized in manufacturing wellhead valves and petroleum equipment. And We are very interested in OEM processing. With more than 150 of experienced working staffs including around 10 technicians, our factory is the professional manufacturing enterprise combined of R&D, production, and distribution.

The main products of BenoSton are wellhead parts, valves and Christmas tree. Our factory has adopted the API standards to all products. The overseas sale volume now account for above 80% of total sale volume of our factory with customers in more than 20 countries around the world.

With the belief that a factory can't have sound development without good quality, our factory has a well-established system of quality control and assurance and has been granted with the certificates of ISO 9001, API 6A.

In addition, our factory possesses the first-class processing facilities such as high-precision CNC machining center of both vertical and horizontal type, milling machine. And inspection facilities of our factory include material inspection equipment for tension and impact testing, non-destructive inspection equipments of ultra-sonic wave, magnetic powder and liquor penetrating, three-dimensional measurement instrument and specialized testing equipment for low temperature, fire-proof, and leakage and vacuum testing.

Backed by strong R&D capability, and first-class processing facilities, complete system of quality management and cooperative work team, our factory is effectively providing products of good performance, better quality, and on-time delivery to customers both at home and abroad. We are looking forward to creating a win-win future together with partners around the world.
