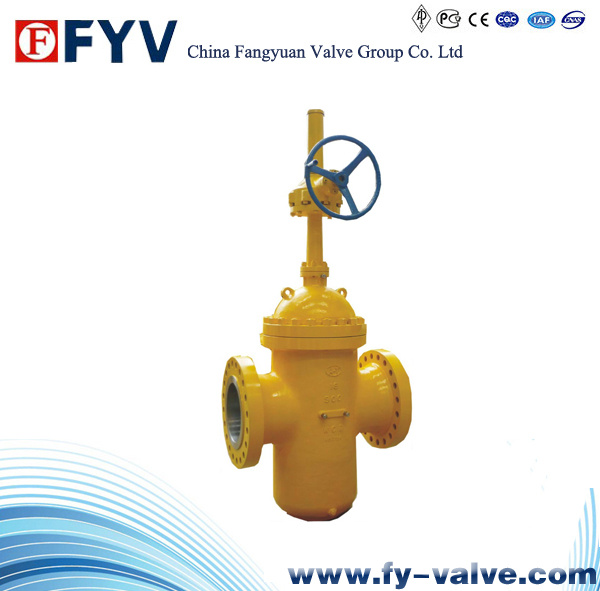

API 6D Carbon Steel 150lb~2500lb Gate Valve

API 6D Carbon Steel 150lb~2500lb Gate Valve
Price: US $ 99-290/Piece
Trade Terms: FOB,CIF,EXW
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Paypal,Money Gram

Technical Details

Valve Type: Wedge gate valve, Parallel gate valve, Knife gate valve

Design: API 6D, API 600, API 603, ISO 10434, BS 1414, DIN 3352, JIS B2071BG/12235, JB/T7749, OCT5761, 10421, 19192, 23230, ASMEB16.34, AP1602, BS1873

Face to Face: ASME B16.10, BS 2080, ISO 5752, DIN 3202, JIS B2002

Flange End: ASME B16.5, ASME B16.47, MSS SP-44, BS EN 1092, ISO 7005, DIN 2502,

BW End: ASME B16.25

Inspection & Test: API 6D, API 598, BS EN 12266, ISO 5208, JIS B2003

Body Material: WCA, WCB, WCC, WC6, WC9, LCB, LCC, CF8, CF8M, etc.

Pressure Rating: Class150-2500LB; PN 16-420

Size: NPS2-40; DN50-1000

Working Temp.: -46 degrees to +598 degrees

Actuation: Hand wheel, Worm Gear, Electric, Pneumatic, Hydraulic

Design referenceAPI
Design standardAPI 6D  ASME B16.34
Structual lengthFlanged endsAPI 6D  ASME B16.10
Welded connection
Flanged endsASME B16.5  MSS SP44
Butt-welding endsASME B16.25
Test &inspectionAPI 6D  API598
Note:valve can be designed according to customers' request.
Major parts material form
Accessory Name
1- BodyA216-WCB
2-Gate discA216-WCB
3-Wedge blockA216-WCB+STL
4- SeatA105+STL
7-Packing press-sleeveA276-420
13-Packing glandA276-WCB
14-Back seatA276-410
16-Stem nutC95500
18-Hand wheelA536-60-40-18
19-Indicating coverA105
Prod Model: FYV
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: Dn50-600mm
Connection Form: Flange
Material: Carbon Steel
Seal Surface: Parallel Gate Valve
Thread Position Of Valve Rod: Outside Gate Valve
Application: Household Usage
Fangyuan Valve Group Co. Ltd, seated at Wuxing Industrial Zone, Oubei, Yongjia County, so called as "Pump & Valve Village of China", close to the national scenic spot Nanxijiang River to the east and facing the downtown of Wenzhou City to the south, and established in 1998 with the former as Zhejiang Fangyuan Valve Manufacturing Co. Ltd, has got a great achievement via hard work and continual going forth ahead and become a magnate of plate gate valve from an unknown small enterprise and leads the future of this industry. Fangyuan Valve Group Co. Ltd was derived from Zhejiang Fangyuan Valve Manufacturing Co. Ltd in 2005 and holds 5 stock subsidiaries, three production bases in Wenzhou, Shanghai and Lishui and a cast base in Lishui, a total registered capital up to 4, 000, 000 USD, a total land area 110000m2, over 600 staff members, 60 of which are technicians, a digital process center and more than 350 sets of various middle and large equipments and an annual output up to 12000 tons.

This Group comes as a key enterprise among the said"Pump & Valve Village of China"and a well known enterprise in the national valve industry and specializes in the production of plate gate valve, gas valve, electric station valve etc., with the development, design and invention patent know-how up to the advanced technical level of the world and the leading level of the nation and some of the products used to replace the imported ones. This Group has been accredited to ISO9001, API6A/6D, CE, AZ etc., won the first prize of scientific advance of Zhejiang Province and elected as a member of the first-grade supply network of China Petroleum, a member of China Petrochemical Resource Market, a member of No. 1 Energy Network, a member for supply of the national electric power system, an appointed production enterprise by Chemical Equipment General Corp., a Wenzhou high-tech enterprise, a start enterprise of Yongjia County, one of the 30 powerful enterprises among the said village and a banking credit AAA grade enterprise in the successive recent years. It holds a powerful strength in the technical, management and market etc. Respects and a notable superiority in the severe market competition.

The products, approved by the nation and province early or late, have been elected as quality products of Zhejiang Province and well-known ones of Wenzhou. This Group follows the guide policy of"takeing people as the base, managing the company with laws, prospecting the enterprise with quality, continuing innovations"and makes the products well sold to all over the country and USA, Canada, the Middle East, Europe etc. World markets, greatly favored by the users therein. Therefore a solid basis has been made for the further open-up of the world market, for the making of Fangyuan brand, for the national industrial progression and for the great target to create a valve magnate of China and step forward to the 50 powerful valve companies of the world.

Slab gate valve: Slab gate and expanding gate, double sealed upstream and downstream design, double block and bleed open and closed design. Size: DN50~DN1400, pressure: PN16~PN420, handwheel, gear, electric, pneumatic.

Fully welded ball valve.

Forged steel valve. Material: A105, LF2, F11, F22, F5, F304, F316, F321 etc.
