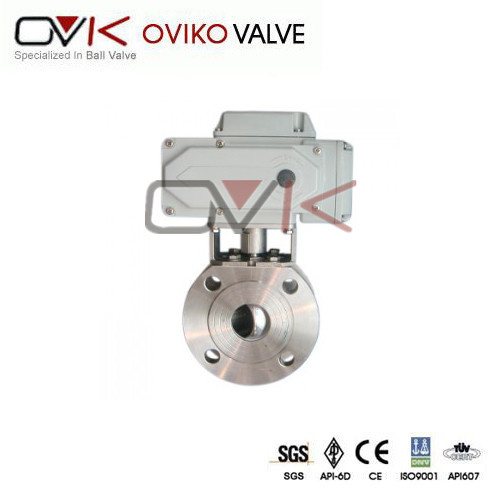

API 6D Cast Steel Floating Flanged Wafer Ball Valve

API 6D Cast Steel Floating Flanged Wafer Ball Valve
Price: US $ 20-1000/Piece
Trade Terms: FOB,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T
Wafer ball valve
Wafer ball valve is simple structure, small volum, light weight and constitute by servel parts. Jus trotate 90°,the valve would be open.
Wafer type ball valve has short distance between the valve seat and the end flange, low remains, superior in sealing, long service life etc.
have 2-way and 3-way body version,
It is widely used in the light industries as daily chemicals, pharmaceuticals, beer, grease etc., and can be used to transport the medium containing thin and soft particles and also used on the vacuum pipelines. It is one of the best ideal valves for modern industry.

1-PC Body Type(2-PC Body for DN125 and Over)
DN15-DN100 for Forged Body;DN125-DN200 for Cast Body
DN15-DN100 for 1-PC body Type;DN125 and over for 2-PC Body Type
Full Bore
Size:1/2"-10"
Materials: WCB, CF8, CF8M
Working Pressure:1.6MPa, 2.5Mpa
Working Temperature:<200°
Applicable Medium: Water, Oil, Gas, Acid, etc
Face to Face: GB/T 9113 Q/SYF012-96
Flanged Standard to ANSI B 16.5

Main Material
NO.Part nameMaterails
1ValveCF8M/CF8WCB
2Ball316/304SS304
3Sealing gasketPTFEPTFE
4Stem316/304SS304
5PackingPTFEPTFE
6Positioning lockSS304SS304
7LeverSS304SS304
8Stem NutSS304SS304
9Packing glandSS304SS304
10Lever sleevePlasticPlastic
11Sealing nut316/304SS304
12WasherPTFEPTFE

Main Size and weight
Size1/2″3/4″1″1 1/4″1 1/2″2″2 1/2″3″4″5″6″
d151923.5303645586776100125
L3238.54555627295120145200225
D95105115135145160180195215245280
D1657585100110125145160180210240
D24555657885100120135155185210
H6270798692102158172187200240
E110125135150150180250300350650840
b1414161618202224242626
z-d14-144-144-144-184-184-184-184-184-184-184-23
f22233333333

Prod Model: OVK-150427
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: 1/2"-10"
Pressure: 150lb-2500lb
Flange Standard: ANSI B16.5
Certificate: API 6D,ISO9001,CE
Connection Form: Flange
Channel: Straight Through Type
Structure: Fixed Ball Valve
Type: Flexible Ball Valve
Material: Stainless Steel
Application: Household Usage
Driving Mode: Lever,Pneumatic,etc
Function: Cut-off and Control Medium
OVIKO is one of leading all kinds of ball valve and ball valve parts manufacturers. The products included Trunnion mounted ball valves, floating ball valves, top entry ball valves, fully welded ball valves, metal to metal ball valves, 3 way ball valves, V port ball valves, etc. Also we can make ball valves' parts according to customer drawings.

Our products nominal dia is 1/4"--48". Pressure grade is 150LB-2500LB. Working temperature is -196ºC-450ºC. The material are carbon steel, alloy steel, stainless steel, and so on. To guarantee the products quality, we passed ISO 9001 International Quality Assurance System, CE, API 6D, API607, API6FA, etc. High quality and excellent after-service get our products good market nearly every parts of the world, such as U. S. A, Spain, UK, Italy, Canada, Mexico, MID-east, India, etc. With years of exporting experience, we are good at manufacturing to standards: GB, DIN, ANSI, BS, AS, JIS, ISO, API etc.

We insist on the concept of "Quality first, prestige important", and after continuous innovation and development, the products have been widely used in many fields, range from oil plants, chemical plants, fertilizer plants, smelters, medical factories and power stations. Not only the products sold well in the world's market, but also have enjoyed a good reputation in the markets. We offers the customers with valves of excellent quality and best service, hope to build a new brilliant with you in the future.
