API 6D Fully Welded Pipeline Ball Valves
| Price: |
US $ 99-199/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal |
- Full port or reduced port API 6D ball valves
- Forged body, fully welded to significantly reduce or eliminate fugitive emissions
- Trunnion mounting and bearing plates design
- Primary metal-to-metal seal and protected secondary O-ring seal
- Double Block and Bleed
- Fire safe design
- Blowout-proof stem
- Anti-static design
- Emergency sealant injection
- Self relieving seat rings
- Stem extension for underground service
- NACE 01-75 Standard
- Connection: Flange and Butt Weld
- Available sizes: 2''-60''
- Available rating: Class 150-2500
- Material: Carbon Steel, Stainless Steel, Low Alloy Steels, Duplex
- Operation: Gear, Electric Actuator, Pneumatic Actuator
- Coating: ENP, Stellite, Tungsten and Chromium Carbide
Electric actuators have been designed, developed and tested incorporating the latest technology and materials with our innovative design.Actuators available for applications requiring multi-turn, quarter-turn and linear actuation. With compact design and excellent performance, our actuators are widely used in Oil & Gas, Petrochemical, Mining, Waterworks and Pulp & Paper industry.
After heat treatment, grind the worm surface so that roughness can reach 0.8 and mechanical efficiency and service life can be increased. Worm gear using high quality bronze material has high wear resistance and high strength mechanical features.Involute spline connected between worm and gear so that during maintenance can directly open the front cover and take out the worm for easy repair. Front and back side of the worm using cone shaped roller bearings can increase the load capacity
Handwheel gearbox using gear structure has advantages such as small size and high efficiency up to 97%
Double seal, high-strength aluminum alloy case
Gearbox inside regular filling is grease
Lightning protection-special electric circuit inside can protect the actuator from thunderstorm damage
Remote valve status detection: Periodical anti-jamming test has be to done to the valves on site.Our electric actuators can receive IPC signal and automatically perform this test and transmit the result to IPC
Actuator comes with high capacity lithium battery can detect and indicate valve position during power outage and can automatically recharge when connected to power
Using high-precision encoder to detect valve position-12 bit magnetic encoder, high accuracy
57 ports of wire connection plate help to expand users and hermetic design isolates the inside and outside body
Correcting software output—when output electric current has error, correction can be done by changing parameters directly from the setting, no need to disassemble the actuator, safe, fast and reliable
Variety of fieldbus communication
Torque range: 35Nm~280000Nm
Thrust range: 10kN~120kN
IP rating: IP68
Ambient temperature range is-40ºC~70ºC ( -40 ºF~158 ºF)
| Prod Model: |
FYV |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
2''-60'' |
| Class: |
150~1500 |
| Ends Con.: |
Rtj,RF,Bw,Sw |
| O-Ring Sealing: |
PTFE,NBR,Rptfe |
| Connection Form: |
Welding |
| Channel: |
Straight Through Type |
| Structure: |
Fixed Ball Valve |
| Type: |
Fixed Ball Valve |
| Material: |
Stainless Steel |
| Application: |
Household Usage |
Fangyuan Valve Group Co. Ltd, seated at Wuxing Industrial Zone, Oubei, Yongjia County, so called as "Pump & Valve Village of China", close to the national scenic spot Nanxijiang River to the east and facing the downtown of Wenzhou City to the south, and established in 1998 with the former as Zhejiang Fangyuan Valve Manufacturing Co. Ltd, has got a great achievement via hard work and continual going forth ahead and become a magnate of plate gate valve from an unknown small enterprise and leads the future of this industry. Fangyuan Valve Group Co. Ltd was derived from Zhejiang Fangyuan Valve Manufacturing Co. Ltd in 2005 and holds 5 stock subsidiaries, three production bases in Wenzhou, Shanghai and Lishui and a cast base in Lishui, a total registered capital up to 4, 000, 000 USD, a total land area 110000m2, over 600 staff members, 60 of which are technicians, a digital process center and more than 350 sets of various middle and large equipments and an annual output up to 12000 tons.
This Group comes as a key enterprise among the said"Pump & Valve Village of China"and a well known enterprise in the national valve industry and specializes in the production of plate gate valve, gas valve, electric station valve etc., with the development, design and invention patent know-how up to the advanced technical level of the world and the leading level of the nation and some of the products used to replace the imported ones. This Group has been accredited to ISO9001, API6A/6D, CE, AZ etc., won the first prize of scientific advance of Zhejiang Province and elected as a member of the first-grade supply network of China Petroleum, a member of China Petrochemical Resource Market, a member of No. 1 Energy Network, a member for supply of the national electric power system, an appointed production enterprise by Chemical Equipment General Corp., a Wenzhou high-tech enterprise, a start enterprise of Yongjia County, one of the 30 powerful enterprises among the said village and a banking credit AAA grade enterprise in the successive recent years. It holds a powerful strength in the technical, management and market etc. Respects and a notable superiority in the severe market competition.
The products, approved by the nation and province early or late, have been elected as quality products of Zhejiang Province and well-known ones of Wenzhou. This Group follows the guide policy of"takeing people as the base, managing the company with laws, prospecting the enterprise with quality, continuing innovations"and makes the products well sold to all over the country and USA, Canada, the Middle East, Europe etc. World markets, greatly favored by the users therein. Therefore a solid basis has been made for the further open-up of the world market, for the making of Fangyuan brand, for the national industrial progression and for the great target to create a valve magnate of China and step forward to the 50 powerful valve companies of the world.

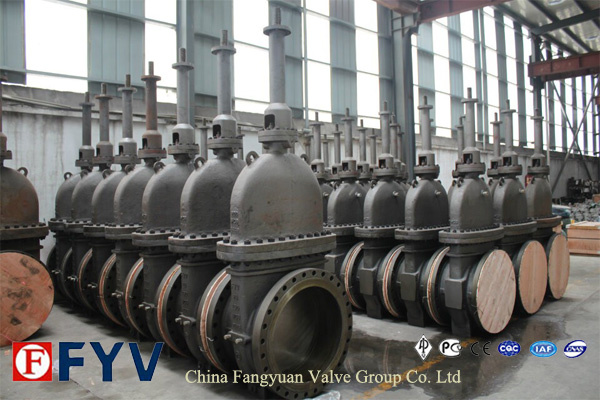

Slab gate valve: Slab gate and expanding gate, double sealed upstream and downstream design, double block and bleed open and closed design. Size: DN50~DN1400, pressure: PN16~PN420, handwheel, gear, electric, pneumatic.
Fully welded ball valve.
Forged steel valve. Material: A105, LF2, F11, F22, F5, F304, F316, F321 etc.
