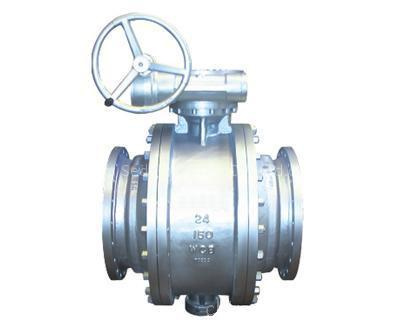

Name: API 6D Trunnion Mounted Ball Valve 3PC/2PC
Main Applications
API 6D Trunnion Mounted Ball Valve
Features:
Sizes 2"-24".
Class 150Lbs, 300Lbs, 600Lbs, 900Lbs, 1500Lbs as specified in B16.34
FP. Full port design / RP. Regular Port / Reduced Port
Bolted body, side entry, Two piece body / split body / Three piece body
Blow out proof stem
Flanged end, raised face
CAPI / ISO5211 Mounting pad
Double block & bleed on request
Trunnion mounted
Level or wormgear actuator
Standards:
Design & Mamufacture: API 6D
Face-to-Face or End-to-End: ANSI B16.10
Pressure temperature ratings: ASME B16.34Flange dimension(RF): ANSI B16.5 for NPS≤ 24"
Inspection & Test: API598
Materials: Cast Steel: ASTM A216 WCA, WCB, WCC
Stainless Steel: ASTM A351 CF3, CF3M, CF8, CF8M, CF8C, CG8M, CF10, CF10M, F304, F316, F304L, F316L, F321, F347, F317, F304H, F316H
Cr-Mo Steel: ASTM A217 WC1, WC6, WC9, C5, C12, C12A, F11, F22, F1, F5, F9, F91, F92
Low Temperature Steel: ASTM A352 LCA, LCB, LCC, LC1, LC2, LC2-1, LC3, LC4, LC9, CA6NM
Currency: USD
Packaging Details: FOB
Price Terms: WOODEN CASE
Payment Terms: 100% by T/T and 30% in advance or by irrevocable L/C
Supply Ability: 50
Minimum Order: 1
Zhejiang Anneng Valve Co., Ltd. is an export-oriented valve manufacturing enterprise which integrates designing. Manufacturing & processing, and marketing.
It covered an area of over 20, 000 square meters The company boasts of strong technical force is well equipped with more than 200 set of CNC lathes, high-accuracy processing apparatus, physical/chemical equipments, and inspection equipments. And inspection equipment, the company has gradually passed the DNVISO90001, TUV CE and TS pressuring piping certifications.
Our company mainly produces all kinds of forged and cast steel gate valves, globe valves, check valves, ball valves, butterfly valves. Driving types: Manual, worm-gear operated, electric operated, pneumatic operated.
