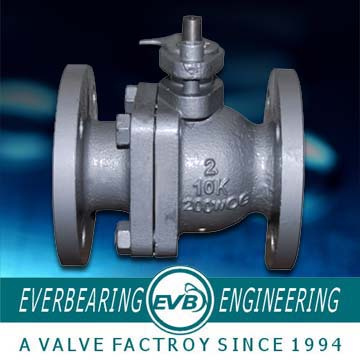

API Ball Valve
1. Nominal Diameter: 2"~40"
2. Nominal Pressure: PN less than 900Lb.
|
Fixed Ball Valve |
Unit: mm |
DN
DN |
Main external and connectiong dimensions |
WT
(kg) |
L |
D |
D1 |
D2 |
b |
Z-Φ d |
H |
H1 |
Do |
Q47F-16C Q67F-16C Q47F-16P Q347F-16C Q367F-16C Q347F-16P Q647F-16C Q667F-16C Q647F-16P
Q747F-16C Q767F-16C Q747F-16P Q9B47F-16C Q9B67F-16C Q9B47F-16P |
50 |
178 |
160 |
125 |
100 |
16 |
4-Φ 18 |
177 |
120 |
- |
15 |
65 |
191 |
180 |
145 |
120 |
18 |
4-Φ 18 |
190 |
140 |
- |
19 |
80 |
203 |
195 |
160 |
136 |
20 |
8-Φ 18 |
210 |
150 |
- |
27 |
100 |
229 |
215 |
180 |
155 |
20 |
8-Φ 18 |
235 |
172 |
- |
38 |
125 |
356 |
245 |
210 |
185 |
24 |
8-Φ 18 |
350 |
215 |
- |
58 |
150 |
394 |
280 |
240 |
210 |
24 |
8-Φ 23 |
530 |
250 |
- |
81 |
200 |
457 |
335 |
295 |
320 |
30 |
12-Φ 23 |
620 |
290 |
600 |
140 |
250 |
533 |
405 |
355 |
320 |
30 |
12-Φ 25 |
650 |
320 |
600 |
160 |
300 |
610 |
460 |
410 |
375 |
30 |
12-Φ 25 |
780 |
360 |
600 |
205 |
350 |
686 |
520 |
470 |
435 |
34 |
16-Φ 25 |
790 |
395 |
800 |
260 |
400 |
762 |
580 |
525 |
485 |
36 |
16-Φ 30 |
920 |
450 |
800 |
390 |
450 |
864 |
640 |
585 |
545 |
40 |
20-Φ 30 |
970 |
490 |
800 |
510 |
500 |
914 |
705 |
650 |
608 |
44 |
20-Φ 34 |
1100 |
530 |
800 |
750 |
600 |
1067 |
840 |
770 |
718 |
48 |
20-Φ 41 |
1150 |
590 |
800 |
1200 |
700 |
1245 |
910 |
840 |
788 |
50 |
24-Φ 41 |
1850 |
700 |
800 |
2100 |
|
Everbearing Engineering Co., Ltd. is a manufacturer of various valves with well-equipped testing equipment and strong technical force.
Since 1994, We have passed API-Q1, and gotten the ISO 9001: 2000 certification. And after years of experience in supplying valves abroad, Everbearing has been recognized as a skilled and credible supplier with most-trusted, highest-quality products.
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in water, oil, gas and other industries.
Sincerely, we hope to make Everbearing brand as a famous brand with domestic and international customers. And we do our best to improve Everbearing as a high-class valve manufacturer.
We are looking forward to establishing relationships with you in the near future.
