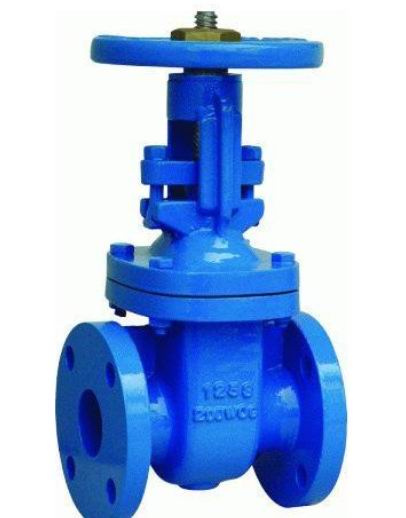

API Bolted Handwheel Rising Stem Gate Valve

Name: API Bolted Handwheel Rising Stem Gate Valve
Brand: Valve Industry
SKU: 742276555
Availability: InStock
Rating: 4.7 (97 reviews)

Price:	US $ 75-80/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Zhejiang Liangyi Valve Co., Ltd.

Showroom Product Company Profile

Specifications

Stem Gate Valves
API 600, ASME B16.34, DIN 3202, API 598
Size: 1/2"~60"
Class:150~2500
Nonrising and rising stem

Non Rising Stem and Rising Stem Gate Valves in Forged and Cast Body are designed and manufactured strictly to International Standards API 600, ASME B16.34 or DIN3202, Featured with compact structure & Low emission service.

» Standards Compliance:

- Design & Manufactured to API 600, ASME B16.34 or DIN3202

- P.T Ratings to ASME B16.34

- Face to Face dimensions to ASME B16.10

- Flanged Ends to ASME B16.5, ASME B16.47

- Butt-weld Ends to ASME B16.25

- Valves Marking to MSS SP-25

- Inspect & Tested to API 598

» Sizes Ranges from 1 1/2" thru 60"

» Pressure Ratings from Class 150 to Class 1500, PN16 to PN260

» Structured in Bolted Cover, Outside Screw and York, Optional Non-rising Stem

» Ends Connections in Flanged R.F or RTJ, Butt-welded and Grooved

» Body Materials available in Carbon Steel A216 WCB, WCC, Low Carbon Steel LCB, LCC, Alloy Steel A217 WC6, WC9, Stainless Steel A351 CF3, CF8, CF3M, CF8M, Duplex & Super Duplex Steel A890 GR. 4A, GR. 5A, Special Materials in Monel, Alu. Bronze C95800, 95600 etc.

» Trim Materials available in 13%Cr, F11, F22, SS304, SS304L, SS316, SS316L and other specials

» Actuations can be equipped with Handwheel, Gear Devices, Electric / Pneumatic or Hydraulic Actuators

» Optional Bypass system, Live Loading Packing & O-ring Seal available upon request.

Prod Model:	Z41Y
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	1"-60"
Place Of Origin:	China
End:	Flanged
Temp:	Ordinary
Connection Form:	Flange
Material:	Carbon Steel
Seal Surface:	Wedge Gate Valve
Thread Position Of Valve Rod:	Outside Gate Valve
Application:	Household Usage

Welcome to Liangyi Valve! Liangyi Valve is a major production base of TIP valve. Both Liangyi Valve and TIP valve are operated by the same board of directors. As a professional valve manufacturer and supplier, Liangyi Valve can offer a wide range of flow control products for the oil, gas and related industries. With more than 20 years of experience and ceaseless creation in the field, we have integrated Design, Quality control, Technical development and Sales service.

We have been certified to ISO9001-2000, CE, and API6D. Our products conform to various well accepted industry quality and safety standards such as ANSI, ASME, API, API 6FA, API 607, API 609, API 598 and etc. We can customize different kinds of standard and non-standard valves. With reliable quality and reasonable price as the foundation of our constant development, our products are exported to many countries and regions all over the world, especially the Middle East. Even during the period of economic crisis, our company still has developed rapidly. To cater for the increasing demand for valves, we built new workshops with the floor space of 14000 square metres in 2011. Our products enjoy a good reputation among our customers.

Liangyi Valve values work safety and places high emphasis on product quality and standards. We provide customers with a complete service before, during and after sales. We welcome customers, business associators and friends from all parts of the world to contact us and seek cooperation for mutual benefits.

To serve the customers with qualified products and get recognized for all the effort and hard work is our mission.

We believe in long-term association with our customers and their continued confidence in our Company is our achievement.
