API Cast Steel Gate Valve

API Cast Steel Gate Valve
Price: Negotiable/Piece
Trade Terms: FOB,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T
Design Standard: API 600, BS1414, DIN3352
Face to Face: ASME B16.10, EN 558, DIN3202
End Flange: ASME B16.5, ASME B16.47, DIN2533
Buttwelding Ends: ASME B16.25, DIN3239
Inspection and Test: API 598, DIN3230

Size: 1/2" ~ 36"(DN50 ~ DN900)
Rating: ANSI 150lb ~ 2500lb


Body Materials: Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel
Trim: Per API 600
Operation: Handwheel, Gear, Electric, Pneumatic, Hydraulic

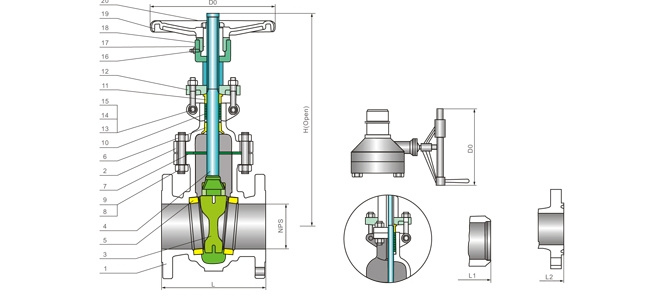

Stem stainless steel gate valve Design Features:
Full port design
OS&Y, outside and screw
Bolted bonnet, back seal structure
Flexible wedge, fully guided
Choice of Solid or split wedge
Extended stem design for low temperature
Flanged or butt-welding ends
Prod Model: Z40H/Y
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Connection Form: Flange
Material: Carbon Steel
Seal Surface: Wedge Gate Valve
Thread Position Of Valve Rod: Outside Gate Valve
Application: Household Usage
WENZHOU GDIGGER ENERGY ENGINEERING Co., Ltd. Located in Wenzhou, the area of head office is 45, 000 square meters, which is a professional manufacturer specializing in Pressure Vessels, Storage Tanks, LPG Spherical Tanks, LPG Tanks, and various quality ball valves, gate valves, check valves, globe valves and valve accessories. Our diverse products are used for handling a wide variety of applications in gas, oil, refining, chemical, shipbuilding, power generation and pipeline transmission industries.

We supply Storage Tank and Spherical Tank on any projects for different medium (LPG, LNG, Oxygen, Nitrogen, Natural Gas, Hydrogen, Liquefied Gas, etc). Cubage dimension from 5m³ To 10000 m³ With experienced installation teams for your tanks if need. GDIGGER provides an in-depth knowledge and widespread International experience from design, supply, construction, Installation & training of EPC Projects. Our products are used for handling a wide variety of applications in gas, oil, refining, chemical, shipbuilding, power generation and pipeline transmission industries.

In order to provide satisfactory products to the customs, we emphasize on our quality control to meet the customer's specification and requirements. We utilize modern CNC lathes and machining centers, precision grinders and a full complement of manual lathes and mills to produce high quality parts.

GDIGGER products are made in accordance with ISO, ANSI, API, ASME and other international standards. With qualifications of specialized contracting and Grade I of installation of steel structure, and qualified as Grade A2 and A3 of special equipment. We obtained some important international authentication certificates such as NK, BV, and ASME. Meanwhile we have been awarded U Stamp and U2 Stamp of ASME authentication as well as the NB Stamp of America Boiler and Pressure Vessel Supervisory Commission. Our main focus is on offering outstanding products to our customers and sticking to timely delivery schedules with top quality and competitive prices, which will be your reliable partner.

GDIGGER is your one stop solution partner on oil and gas industry. We welcome valuable customers to visit our company.
