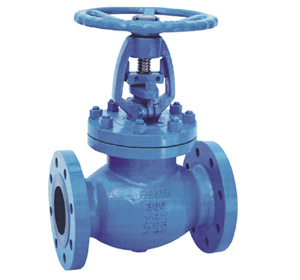

ANSI Globe Valve Applicable Standards
1. Steel Globe Valve, BS EN 13709, API600
2. Steel Valve, ASME B16.34
3. Face to Face, ASME B16.10
4. Flange end, ASME B16.5
5. Butt welded ends, ASME B16.25
6. Inspection and Test, API598
ANSI Globe Valve Design Description
1. Straight Pattern Body Design
2. OS&Y, Outside Screw and Yoke
3. BB, Bolted Bonnet
4. Yoke Integral with Bonnet
5. Rising Stem and Handwheel
6. Loose Disc, Choice of Plug or Ball
7. Renewable Seat Ring
8. Impact handwheel for 10" & Above
9. Horizontal Service
10. Flanged or Buttwelding ends
11. Available with BG Operator
We're one of leading supplier of valve in China and can also produce gate valve, check valve, ball valve, butterfly valve, safty valve etc. Waiting for your kind enquiry of valves.
NPS
d |
in |
2 |
2-1/2 |
3 |
4 |
5 |
6 |
8 |
10 |
12 |
14 |
16 |
|
mm |
51 |
64 |
76 |
102 |
127 |
152 |
203 |
254 |
305 |
337 |
387 |
L-L1
(RF-BW) |
in |
8.00 |
8.50 |
9.50 |
11.50 |
14.00 |
16.00 |
19.50 |
24.50 |
27.50 |
31.00 |
36.00 |
|
mm |
203 |
216 |
241 |
292 |
356 |
406 |
495 |
622 |
698 |
787 |
914 |
L2
(RTJ) |
in |
8.50 |
9.00 |
10.00 |
12.00 |
14.50 |
16.50 |
20.00 |
25.00 |
28.00 |
31.50 |
36.50 |
|
mm |
216 |
229 |
254 |
305 |
368 |
419 |
508 |
635 |
711 |
800 |
927 |
H
(open) |
in |
13.43 |
14.45 |
14.76 |
19.02 |
21.14 |
20.35 |
23.23 |
29.69 |
37.05 |
42.72 |
38.03 |
|
mm |
341 |
367 |
375 |
483 |
537 |
517 |
590 |
754 |
941 |
1085 |
966 |
|
W |
in |
7.87 |
9.84 |
9.84 |
11.81 |
11.81 |
13.78 |
15.75 |
17.72 |
25.20 |
25.20 |
18.11 |
|
mm |
200 |
250 |
250 |
300 |
300 |
350 |
400 |
450 |
640 |
640 |
460 |
WT
(Kg) |
BF |
22 |
29 |
42 |
64 |
77 |
105 |
154 |
288 |
507 |
617 |
810 |
|
BW |
19 |
25 |
34 |
49 |
65 |
82 |
131 |
249 |
430 |
580 |
763 |
