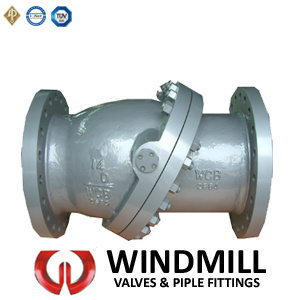

API Cast Steel Tilted Disc Check Valve 14"150lb (H44H)
| Price: |
US $ 68-19014/Piece |
| Trade Terms: |
FOB,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
Applicable standards:
Steel check valves: DIN / API / ANSI / MSS
Steel valves: API6D / API600 / DIN
Face to face, ASME B16.10, DIN3202
Flanges end, ASME B16.5, DIN2543 2545 2546
Buttwelding ends, ASME B16.25 / DIN
Inspection and test, API 598 / API 6D / DIN3230
Design description:
BB, Bolted bonnet cap
Swing type, Anti-rotation disc
Renewable seat rings
Non-penetrate disc shaft
Horizontal servece
Flanged or buttwelding ends
Size: 2"-32"
Pressure: 150LB-2500LB
Material: Carbon Steel, Stainless Steel, Duplex Steel
| Prod Model: |
H44H |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
14" |
| Pressure: |
150lb |
| Connection Form: |
Flange |
| Material: |
Stainless Steel |
| Structure: |
Swing |
| Function: |
Ddcv Double Lobe |
| Application: |
Industrial Usage |
Wenzhou Windmill Valve Co., Ltd., a valve manufacturer, located at China famous Pump&Valve Town--Oubei, Wenzhou. Our factory specialized in all kinds of
industrial valves, consistent conformed to international and national standards, we have gained worldwide market. The past years, 90% of our products offered for Europe, America, Middle East, Southeast Asia.
Product quality and service reliability are essential to the success of our business, we stric tly control every procession such as the purchasing of raw material, the development of innovative designs and the advanced checking method and so on, we consider it is our company's life to give every customer fully satisfaction.
Products range: ball valve, gate valve, check valve, globe valve, ect.
Pressure range: Class150-Class2500, Size range: 1/2"-42"
Temperature: -196 to 649 (-3200F to 12000F)
Operation type: manual, gearbox, chain wheel, pneumatic, electronic, hydraul IC-pneumatic etc.
Connection End: RF, BW, SW, NPT, wafer type, etc.
Materials (casting): WCB, WCC, LCB, LCC, LC1~3, CF8, CF3, CF8M, CF3M, CF8C, CN7M,
CA15, C5, WC5, WC6, WC9, GR4A, etc.
Materials (forging): A105, LF1, LF2, F11, F22, F5, F304, F304L, F316, F316L, F316H, F321,
F347, F51, F60, etc.
According to the different project and different medium, we effectively meet customer's
requirments with RT, UT, MT, PT test standard. The remarkable quality and service are the
WINDMILL person's forever pursue.
