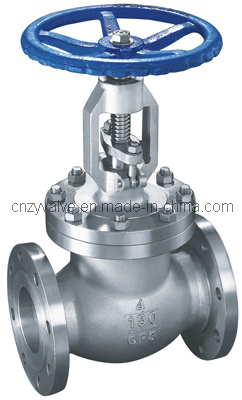

API Class150 4'' Stainless Steel Globe Valve
| Price: |
US $ 15-10000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
pecifications:
Stainless Steel Globe Valve.
1-Flanged Globe Valve
2-Size: 1/2"-24"
3-Pressure: Class150LB-1500LB
4-Material: CF8, CF8M, CF3, CF3M
5-Design & Manufacture Std.: API600, API 6D, ASME B16.34, BS 1873
6-Face to Face Std.: ASMEB16.10, API 6D, JISB2002, DIN3202, BS2080
7-End Connection Std.: ASME B16.5, ASME B16.47, JISB2212-JISB2214, DIN2543-2550
8-Test Standard: ISO5208, API598, API 6D, JISB2003, BS 6755
9-Structure Type: Rising stem(wedge and paralled), Non-rising stem wedge, single disc, double disc
10-Operated way: Handwheel, Gear, Pneumatic, Electric.
|
Name |
Stainless Steel Globe Valve |
|
1. Size |
1/2" --24" |
|
2. Pressure |
Class150--1500 |
|
3. Material |
A) 1/2" -2" : A105, LF2, F11, F22, F5, F304, F316, F304L, F316L
B) 2" -12" : WCB, LCB, WC6, WC9, C12, C5, CF8, CF3, CF3M, CF8M |
|
4. Design and Manufacture Standard |
BS 1873, ASME B16.34 |
|
5. Face to Face Standard |
ASME B16.10, DIN 3202, BS2080 |
|
6. End Connection Standard |
ASME B16.11, ASME B1.20.1, ASME B16.5, DIN2543-2551 |
|
7. Test Standard |
ISO5208, BS 6755 |
|
8. Structure Type |
S-pattern, oval pattern, throttle pattern |
|
9. Operated Way |
Handwheel, bevel gear, pneumatic, electric |
| Prod Model: |
J41W-150LB-NPS4'' |
| Size: |
1/2''-24'' |
| Temperature: |
Medium Temperature |
| Connection: |
Flange |
| Structure: |
Through Way Globe Valve |
| Stem Thread Position: |
Outside Screw Stem Globe Valve |
| Sealing Form: |
Gland Packings Globe Valve |
| Standard: |
JIS |
| Application: |
Forged Steel Globe Valve |

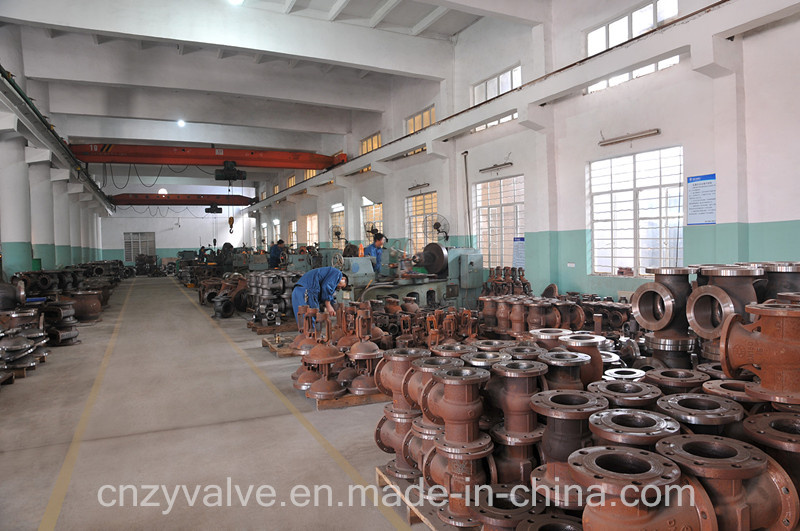

China zhongya valve Co., Ltd. is a collection research and development, manufacturing, sales and integrated high-tech enterprises. The company is located in NO. 3511 Yongqiang Avenue Longwan District Wenzhou city Zhejiang China...The company introduces advanced technology from abroad, the modern scale production, and equips Germany processing center, Taiwan CNC machine, super precision vertical lathe, automatic painting line and special equipment, machining center, CNC machine tools, special molding, slinging cleaning, passivation treatment, ultrasonic cleaning equipment and a variety of valve pressure testing equipments. As well as equipped with photoelectric direct reading analyzer, thickness tester, radiographic, ultrasonic and liquid penetrant ect, non-destructive testing equipment to ensure that the company's products can be manufactured strictly in accordance with clients'requirements of related standard, to meet the different demands of them.

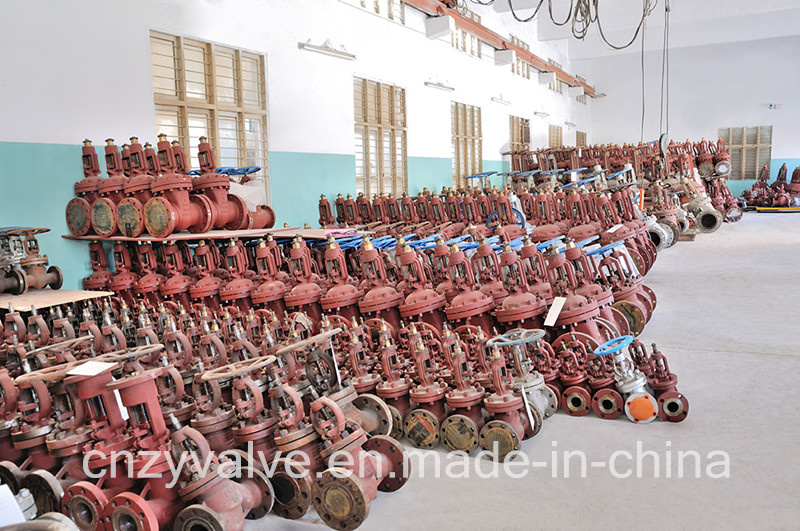

The company mainly in producing gate valve, globe valve, ball valve, check valve, butterfly valve, hydraulic control valve, supply and drainage water equipment and a variety of special non-standard special valves.
The company implements API (USA) and EN (European Union), ISO (international organization for standardization), BS (British), JIS (Japan) and GB (China) and other major advanced industrial countries and the latest standards of the national standard designing production. Valve body materials are used of carbon steel, alloy steel, chrome molybdenum steel, stainless steel, low-temperature steel, high-temperature steel, nickel base and cobalt base alloy and other materials, and materials specified by the user. Products are widely used in petroleum, chemical, natural gas, coal chemical industry, electric power, shipbuilding, pharmaceutical, paper making, beer industry, food, building, water supply, prevent pollution, and a large number of them are exported to the United States, Europe, Russia, Middle East, Japan, South Korea and southeast Asia and other regions.
