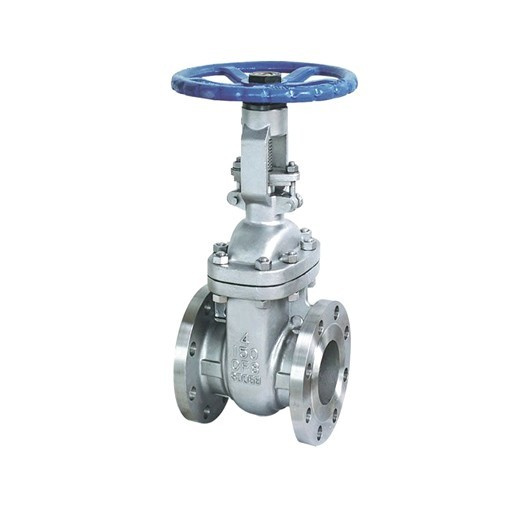

Gate Valve (Z40H)
Gate Valve, Gate Valves, API Gate Valve, API Gate Valves, Slide Valve
Design standard: API6D
Material Pressure-Temp Standard: ASME B16.34
Flanged ends: ASME B16.5.
Test &inspection: API6D, API598.
Thread ends: ASME B16.11
Socket welded ends: ASME B1.20.1
Material: ASTM A216 WCB. ASTM 351 CF8 /CF8M. 304SS. 316SS Carbon steel.
Design Description
Full port design
OS&Y Outside screw and yoke
BB. Bolted Bonnet
Flexible wedge, Fully guided
Choice of solid or split wedge
Renewable seat rings
Forged T-head stem
Rising stem and non-rising handwheel
Flanged or butt welding ends
Class150LB--2500LB 2"--48"
|
PARTS NAME |
MATERIAL |
|
WCB/TRIM1 |
WCB/TRIM5 |
WCB/TRIM8 |
CF8/304 |
CF8M/316 |
|
Body |
A216-WCB |
A216-WCB |
A216-WCB |
A351-CF8 |
A351-CF8M |
|
Gasket |
Soft Iron+Graphite Or 304+Graphite |
304+Graphite |
304+Graphite |
|
Seat Ring |
A105+13Cr |
A105+STL |
A105+STL |
A351-CF8 |
A351-CF8M |
|
Gate |
A216-WCB+13Cr |
A216-WCB+STL |
A216-WCB+STL |
A351-CF8 |
A351-CF8M |
|
Stem |
A182 F6A |
A182 F6A |
A182 F6A |
A182 F304 |
A182 F316 |
|
Backseat Ring |
A182 F6A |
A182 F6A |
A182 F6A |
A351-CF8 |
A351-CF8M |
|
Stem Packing |
Graphite |
|
Gland |
A182 F6A |
A182 F6A |
A182 F6A |
A182 F304 |
A182 F316 |
|
Gland Eyebolt |
A193 B7 |
A193 B7 |
A193 B7 |
A193 B8 |
A193 B8M |
|
Eyebolt Nut |
A194 2H |
A194 2H |
A194 2H |
A194 8 |
A194 8M |
|
Eyebotl Pin |
ASTM A36 |
ASTM A36 |
ASTM A36 |
SS304 |
SS316 |
|
Gland Flange |
A216-WCB |
A216-WCB |
A216-WCB |
A351-CF8 |
A351-CF8M |
|
Bonnet Bolt |
A193 B7 |
A193 B7 |
A193 B7 |
A193 B8 |
A193 B8M |
|
Bonnet Nut |
A194 2H |
A194 2H |
A194 2H |
A194 8 |
A194 8M |
|
Bonnet |
A216-WCB |
A216-WCB |
A216-WCB |
A351-CF8 |
A351-CF8M |
|
Nipple |
Carbon Steel |
|
Stem Nut |
A439 D2 |
|
Yoke Sleeve Nut |
Carbon Steel |
|
Hand Wheel |
Ductile Iron |
|
Hand wheel Nut |
Carbon Steel |
|
Set Screw |
A193 B7 |
