Flange Globe Valve
Product Description

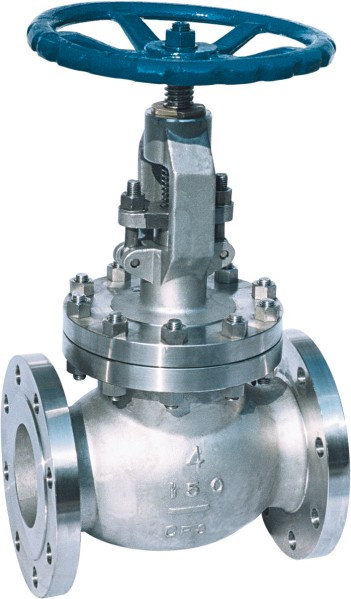

Class150-1500 flange type cast steel globe valve
API600 OS&Y, Rising stem, Plug Disc Bolted Bonnet,
Threaded or welded seat ring with handwheel/bevel gear operator.
ASTM A216 WCB, A217 WC6, A351 CF8, A351 CF8M, A351 CF3, A351 CF3M, A351 CN7M
Standards compliance
Design and Manufacture: ANSI B16.34, BS1873
Face to face(end to end): ANSI B16.10
Flanged connection: To ANSI B16.5
Butt welded end: ANSI B16.25
Test and inspection: API598
A. Anti-friction ball thrust bearing: Reduces friction between mating parts to ensure smooth operation
B. Grub screw: Secures yoke nut in the bonnet
C. Grease nipple: Supplies lubricant to the mating parts
Wenzhou Hugong Valve Manufacture Factory, is located in Shacheng Industrial Zone, Longwan District, Wenzhou City, with convenient communication and advantageous environment. Integrating R&D, production, sales and service, we own sophisticated equipment, advanced, technology, a complete range of specifications and timely delivery.
Our main products include gate valve, globe valve, check valve, ball valve, slurry valve, and dump valve, as well as nonstandard special valves. According to different medium and temperature, the material has high quality carbon steel, stainless steel, low temperature steel, alloy steel, high-temperature and superhigh-temperature special steel and so on.
We strictly according to ISO9001 to manufacture and adopt advanced manufacturing technology and strict management control to guarantee our product quality. Hugong Valve always insist the operational concept of " customer and credit first" and following the quality policy of "leading technology, higher quality, sincere service and building up brand" to provide ideal products and satisfactory service for all users.
We sincerely invite both old and new customers to cooperate with us to make glories together!
