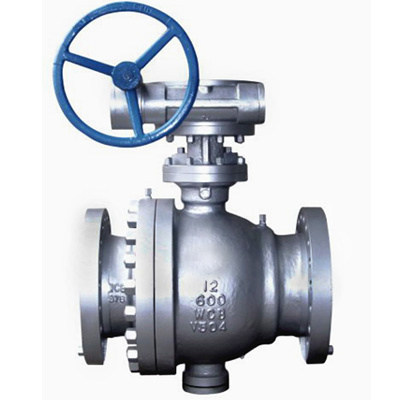

API Flanged Trunnion Mounted Ball Valve
| Price: |
US $ 50-500/Piece |
| Trade Terms: |
FOB,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Money Gram,Western Union |
API Flanged Trunnion Mounted Ball ValveMain SpecificationBall Valve is a form of quarter-turn valve which uses a hollow, perforated and pivoting ball to control flow through it. It is open when the ball's hole is in line with the flow and closed when it is pivoted 90-degrees by the valve handle. Ball valves are durable, performing well after many cycles, and reliable, closing securely even after long periods of disuse. Easy to operate, repair, and versatility, ball valves are extensively used in industrial fluid control.Supporting pressure up to 1000 bar and temperatures up to 752°F (500°C), depending on design and materials used. Sizes typically range from 0.2 to 48 inches (0.5 cm to 121 cm). Valve bodies are made of metal, plastic, or metal with a ceramic; floating balls are often chrome plated for durability.
Normal Feature
Size Range | NPS2"~48" DN50~1200mm |
| Class | 150LB~1500LB |
| Material | WCB,WC6,LCB,WC9,CF8,CF8M,CF3 and CF3M |
| Connection | Flanged |
| Feature | Bolt bonnet, full port design,Trunnion ball,blow-out proof stem,fire durable construction,anti static device,flanged or butt welding ends,avaible with worm gear operator. |
| Temperature | -160ºC~550ºC |
| Actuator | Hand wheel, Gear, Electric, Pneumatic |
| Application | Oil and gas pipeline
Drainage system
Chemical Plant |
Main parts material| Body,bonnet | A216 WCB | CF8 | CF8M | WC9 |
| Ball | 420+HF | 304+HF | 316+HF | F22a+HF |
| Stem | 420 | 304 | 316 | F22a |
| Seat | 420 | 304 | 316 | F22a |
| Packing | Graphite | Graphite | Graphite | Graphite |
| Bolt | A193 B7 | A320-B8 | A320-B8 | A193 B16 |
| Nut | A194 2H | A194-8 | A194-8 | A194-4 |
Manufacture Standard| Design standard | API608 |
| Face to face | ASME/ANSI B 16.10 |
| Flanged Ends Connection | ASME/ANSI B 16.5 |
| Butt-weld ends connection | ANSI B 16.25 |
| Inspection and test | API598 |
Why choose us?l Professional manufacturer with many years' experience in this area.
l Best price with superior quality.
l 3-5 hours fast reply.
l OEM service acceptable, customer providing sample for special requirement is accepted.
l Low MOQ with convenient payment, support Western Union,Paypal.
l Meet delievery date in time
| Prod Model: |
Q47F |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Ball Tyoe: |
Fixed Ball |
| Connection Form: |
Flange |
| Channel: |
Straight Through Type |
| Structure: |
Fixed Ball Valve |
| Type: |
Fixed Ball Valve |
| Material: |
Stainless Steel |
| Application: |
Industrial Usage |
Yongjia Jiali Valve Manufacture Co., Ltd. is a professional valve manufacturer located in China famous Pump$Valve Town-Oubei. The main of our products are Gate Valves, Globe Valves, Check Valves, Ball valves, Plug valves, Butterfly valves, Strainer and other special valves applied broadly in petroleum, chemical, metallurgical and power station industries.
Established in 2004, Jiali Valve has grown up into a professional manufacturer integrating valve design, production, sale and service. The company covers more than 60series and thousands of specifications which strictly comformed to international advanced standards such as API, ANSI, BS, DIN, NF, JIS, JPI, GB, JB and so on. We can also casting and processing valves according to the client's special requirement.
The Products nominal diameter (NPS), 1/4"-44"(DN8-DN1400);
Pressure class from 150LB to 2500LB (PN0.1MPa-32MPa);
Operating temperature: -196° C~680° C;
Main materials includes WCB, WC6, WC9, C5, C12, LCB, LCC, CF8, CF8M, CF3, CF3M, CF8C, etc.

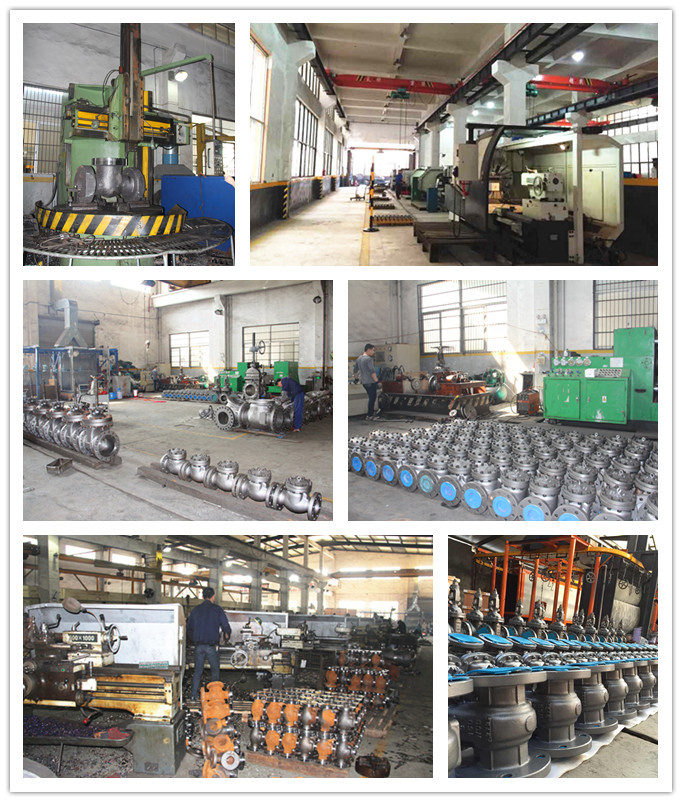

Jiali Valve has established a perfect quality control in order to ensure excellent quality and service. The company has a sophisticated processing center, testing and inspecting center, chemical composition analysis center, mechanical performance test, nondestructive inspection, liquid pressure test, low leak test as well as various special facilities. Just because of these strict quality control system and advanced technical support, our company are highly recognized and trusted by our customers including Europe, America, Middle East, Southeast Asia. etc
Technology innovation, strict quality control, perfect after-sales service, Jiali valve casts higher quality valves, we are always doing the best. We warmly welcome clients all over the world come to visit us to create a brilliant future.
