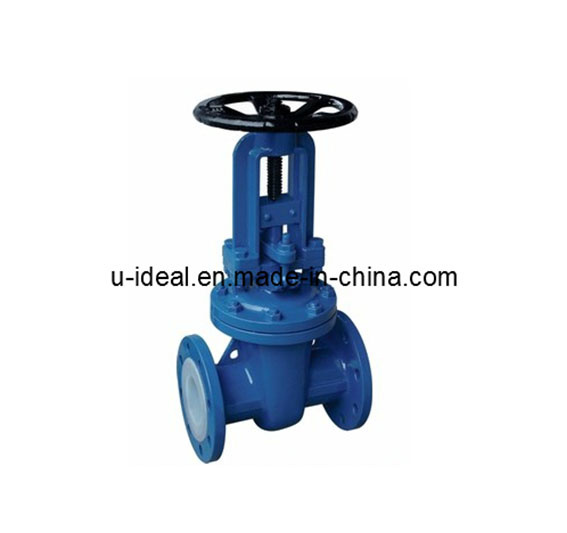

API Flanged Type Gate Valve
| Price: |
US $ 70/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Western Union |
Specifications
API Flanged Gate Valve
1. Design: ANSI B16.34, BS1873, Etc.
2. Pressure: 150-1500LB
3. Size: 1/2"-24"
4. Material: WCB, LCB, LCC, WC6, CF8, CF8M, CF3, CF3M
ANSI Cast Steel Flanged Gate Valves
Specification:
Size: 1/2"~24"
Pressure: 150LB~1500LB
Material: WCB, WCC, LCB, LCC, WC6, WC9, C5, C12, CF8, CF8M, CF3, CF3M, CF8C, CN7M, Etc
Operation: Hand wheel. Gear, electricty, etc.
Standard:
Design & Manufacture Std.: API6D, API 600, ANSI B16.34, Etc.
Face to Face Std.: ANSI B16.10, Etc.
End Connection Std.: ANSI B16.5, Etc.
Test Pressure: API 598, Etc
| Standard or Nonstandard: | Standard | Structure: | Gate | Pressure: | Medium Pressure,150LB-1500LB |
| Power: | Manual | Material: | Casting | Temperature of Media: | Normal Temperature |
| Media: | Water,Gas,Oil,Etc. | Port Size: | 1/2"-24" | Place of Origin: | Tianjin China (Mainland) |
NO. | Part name | WCB | LCB | WC6 | WC9 |
| 05 | Bolt and nut | A193 Gr B7/A194 Gr 2H | A320 Gr L7/A194 Gr 4 | A193 Gr B16/A194 Gr 4/7 | A193 Gr B16/A194 Gr 4/7 |
| 04 | Gland Packing | Graphite | Graphite | Graphite | Graphite |
| 03 | Gasket | Spiral wound/Soft lron | Spiral wound/Soft lron | Spiral wound/SS304 | Spiral wound/SS304 |
| 02 | Bonnet | A216 Gr WCB | A352 Gr LCB | A271 Gr WC6 | A271 Gr WC9 |
| 01 | Body | A216 Gr WCB | A352 Gr LCB | A271 Gr WC6 | A271 Gr WC9 |
Materials |
NO. |
Part name |
Material |
19 |
Grease nipple |
Brass |
18 |
Grub screw |
Carbon steel |
17 |
Hand wheel nut |
Carbon steel |
16 |
Hand wheel |
Malleable lron/cast steel/ ducile lron/fabricated steel |
15 |
Yoke nut |
Carbon steel/SS |
14 |
Eye bolt and nut |
A 193 B7/A194 2H~A193 B8/A194 8 |
13 |
Pin |
Carbon steel/stainless steel |
12 |
Stem nut |
A 439-D2/cu-alloy |
11 |
Gland flange |
Carbon steel/equivalent to body material |
10 |
Gland |
Stain less steel |
09 |
Back seat |
Stain less steel |
08 |
Stem |
Stain less steel |
07 |
Seat ring |
CS+SS/SS/SS+STL |
06 |
Wedge |
Material see body
|
| Prod Model: |
z40y |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
1/4"-24" |
| Material.: |
Wcb, Lcb, Lcc, Wc6, CF8, CF8m, CF3, CF3m |
| Design & Manufacture: |
ANSI B16.34, BS1873, etc. |
| Operation: |
Hand Wheel. Gear, Electricty, etc. |
| Test Pressure: |
API 598, etc |
| Material: |
Stainless Steel |
| Connection Form: |
Flange |
| Seal Surface: |
Wedge Gate Valve |
| Thread Position Of Valve Rod: |
Outside Gate Valve |
| Application: |
Household Usage |
