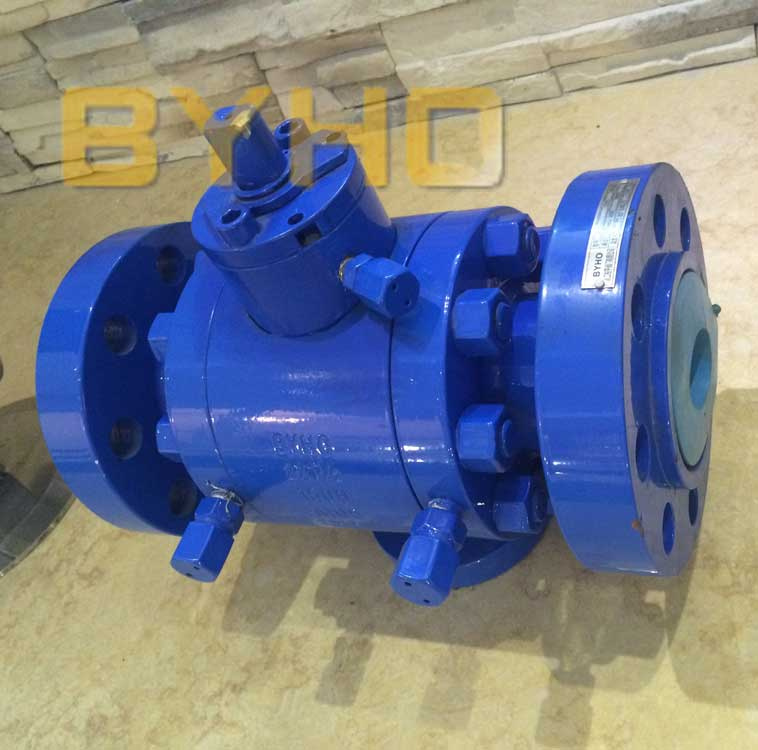

API Forged Steel A105 Bare Shaft Ball Valve

Price:	US $ 65/Set
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Set
Pay Type:	L/C,T/T

Contact Supplier

Zhejiang BYHO Valve Co., Ltd.

Showroom Product Company Profile

Bolted bonnet,Two-piece Body,Floating Ball

Full or Reduced bore,Blowout Proof Stem

Fire safe and Anti static

Stainless steel ball

ASTM A216 WCB,A351 CF8,A351 CF8M,

A351 CF3,A351 CF3M,A351 CN7M

Materials
NO.	Part name	Material
13	Handle	Carbon steel
12	Lock nut	Carbon steel
11	Gland nut	Carbon steel
10	Thrust washer	PTFE/NYLON
09	Gland bush	Stainless steel
08	Stem	Stainless steel

NO.	Part name	WCB	LCB
07	Stud and nut	A193 Gr B7/A194 Gr 2H	A320 Gr L7/A194 Gr 4
06	Packing	Graphite/ptfe	Graphite/ptfe
05	Ball seat	PTFE/RPTFE/NYLON	SPTFE/RPTFE/NYLON
04	Gasket	Grafoil/spiral wound	Grafoil/spiral wound
03	Ball	A182 F6a	A182 F304
02	R-body	A216 Gr WCB	A352 Gr LCB
01	L-body	A216 Gr WCB	A352 Gr LCB

NO.	Part name	CF8	CF8M
07	Stud and nut	A193 Gr B16/A194 Gr 4/7	A193 Gr B7/A194 Gr 2H
06	Packing	Graphite/ptfe	Graphite/ptfe
05	Ball seat	PTFE/RPTFE/NYLON	PTFE/RPTFE/NYLON
04	Gasket	Grafoil/spiral wound	Grafoil/spiral wound
03	Ball	A182 F304	A182 F316
02	R-body	A351 Gr CF8	A351 Gr CF8M
01	L-body	A351 Gr CF8	A351 Gr CF8M

CLASS 150~300 FLOATING BALL VALVE

Dimensions
Class 150
Size	inch	1/2	3/4	1	1-1/2	2	2-1/2	3	4	6	8
L-RF	mm	108	117	127	165	178	191	203	229	394	457
L1-BW	mm	140	152	165	190	216	241	283	305	457	521
L2-RTJ	mm	-	-	140	178	191	203	216	241	406	470
B	mm	13	19	25	38	51	64	76	102	152	203
H	mm	65	70	80	95	110	135	145	170	235	275
K	mm	150	155	160	180	200	225	325	350	500	600
WT.	Kg	3	4	5	8	12	21	26	43	80	155

Dimensions
Class 300
Size	inch	1/2	3/4	1	1-1/2	2	2-1/2	3	4	6	8
L-RF	mm	140	152	165	190	216	241	283	305	403	502
L1-BW	mm	140	152	165	191	216	241	283	305	457	521
L2-RTJ	mm	151	165	178	203	232	257	298	321	419	518
B	mm	13	19	25	38	51	64	76	102	152	203
H	mm	70	85	90	105	120	145	160	195	250	290
K	mm	155	160	180	200	225	325	350	500	600	700
WT.	Kg	3	5	7	13	15	28	32	55	105	170

Prod Model:	Q47F, Q047F
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Design And Manufacture:	API 608,API 6D,BS5351
Face To Face:	ANSI B16.10,API 6D
Flanged End:	ANSI B16.5
Fire-Safe:	API 607,API 6fa
Test And Inspection:	API 598, API 6D
Connection Form:	Flange
Channel:	Straight Through Type
Structure:	Floating Ball Valve
Type:	Floating Ball Valve
Application:	Household Usage
Material:	F304,F316,F321,F51

Zhejiang BYHO Valve Co., Ltd. is located in Ou Bei Twon of Wenzhou City, China known as China Pump & Valve country. Our company has advanced manufacturing equipment such as CNC center, large-scale vertical lathe, borer as well as professional testing equipment.

Our company professionally produce gate valves, globe valves, check valves, ball valves, butterfly valves, plug valves and strainers in accordance with the standards like API 6D, API 600, API 602, API 607 DIN, and so on. Such special materials as WCB, LCB, LCC, WC6, WC9, C5, C12, CF8, CF8M, CN7M, F51, F11, F22, F51 or F53 can be selected according to customers' requirements.

Our company focus on informational construction, and consider everything from the angel of customers and work on information collection and resource share issues. Our company adopts leading management software to monitor the whole course of production and sales part and informs customers of product information and production schedule that customers mostly concerned about so that customer can get to know production schedule of the order.

Our company always put our attention on the development of the valve industry and take the lead to maintain the trace and pursuit of the latest technology in this industry and play an important role in the industry information promoter and technology service disseminator.
