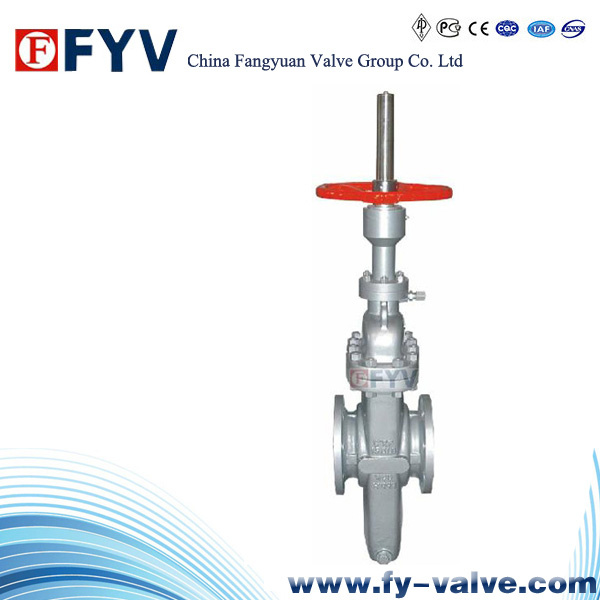

API Gas Through Conduit Flat Gate Valve
| Price: |
US $ 29-99/Piece |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal |
Working Principle
1. With equal pressure throughout the valve(and the gate in closed position), and initial seal is formed with the raised PTFE ring on the faces of the seats. (The seat-inserts clean both sides of the gate each time the valve is opened or closed)
2. As line pressure is applied to the valve. It acts on the gate, forcing it against the PTFE ring on the downstream seat, compressing it until the seat against the steel seat. Thus, a double seal is formed...First, a PTFE-to-metal seal; Then, metal-to-metal. The seat is also forced firmly into its recess. The O-ring prevents any downstream flow at this point.
3. Upstream seal is provided when valve cavity pressure is bled off. This is caused by the force of line pressure acting against the upstream seat moving the seat against the gate and providing a tight PTFE-to metal seal at this point. At the same time. The O-ring forms a tight seal with the seal recess.
4. Valve automatically relieves itself of excessive valve cavity pressure. When valve cavity pressure exceeds line pressure...From such causes as thermal expansion...The upstream seat is forced back into its recess and the excess pressure in the valve cavity is bled between the seat and the gate into the line.
Fuel gas gate valve Technical specification
| Design reference | API |
| Design standard | API 6D ASME B16.34 |
| Structual length | Flanged ends | API 6D ASME B16.10 |
| Welded connection |
| Flanged ends | ASME B16.5 MSS SP44 |
| Butt-welding ends | ASME B16.25 |
| Test &inspection | API 6D API598 |
Note:valve can be designed according to customers' request.
Major parts material form
No.
Accessory Name | Material |
|
| 1- Body | A216-WCB |
| 2-Gate disc | A216-WCB |
| 3-Wedge block | A216-WCB+STL |
| 4- Seat | A105+STL |
| 5-Disc | A105+STL |
| 6-Gasket | Graphite+304 |
| 7-Packing press-sleeve | A276-420 |
| 8-Stem | A276-410 |
| 9-Packing | Graphite |
| 10-Bonnet | A216-WCB |
| 11-Stud | A193-B7 |
| 12-Nut | A194-2H |
| 13-Packing gland | A276-WCB |
| 14-Back seat | A276-410 |
| 15-Yoke | A216-WCB |
| 16-Stem nut | C95500 |
| 17-Gland | A105 |
| 18-Hand wheel | A536-60-40-18 |
| 19-Indicating cover | A105 |
| Prod Model: |
FYV |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
2''-48'' |
| Class: |
150~1500 |
| Ends Con: |
RF,Rtj,Sw,Bw |
| O-Ring Sealing: |
PTFE,NBR,Rptfe |
| Material: |
Stainless Steel |
| Connection Form: |
Flange |
| Seal Surface: |
Parallel Gate Valve |
| Thread Position Of Valve Rod: |
Inside Gate Valve |
| Application: |
Household Usage |
