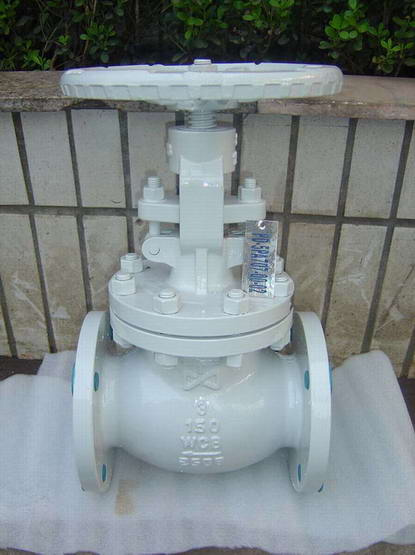

API Globe Valve(WW-AJ41Y)
| Price: |
Negotiable |
| Min Order: |
1 |
Applicable standards
- steel valves, ansi b16.34
- face to face, ansi b16.10
- end flanges, ansi b16.5
- buttwelding ends, ansi b16.25
- inspection and test, api 598
DESIGN FEATURES
Universal Trim:13Cr stem,wedge in CA 15 or 13Cr faced,and Stellited seat API Trim No.8 , suitable for applications up to 454 Celsius Degree.
Seat face:stellited ground and lapped to a mirror finish.
Flexible Wedge: with low center stem-wedge contact.in solid CA15(13Cr)or hardface with 13Cr ,SS316,monel or stellited.Wedge is ground and lapped to a mirror finish and tightly guided to prevent dragging and seat damage ,a stellite 6 hardfaced CF8M wedge is also available.
Non-rotating Stem: with precision Acme threads and burnished finish.Double Acme for faster operation.
Body and Bonnet:castings are precision machined.One-piece bonnet up to 12"(300mm)for better alignment and fewer parts.
Gland:has two-piece construction for easy alignment.
Flanges:
Classes 150-300:1/6" raised face.
Classes 600-1500:1/4" raised face.
Finish 125-250 AARH for all valves
Rotating Stem nut:is austenitic ductil iron Gr D-2C renewable in line(as shown).Thrust bearings are supplied as follows:
150-300Lb:10-12"(250-300mm).
1 bearing(top)
16"(400mm) and up 2 bearings
600Lb:6"(150mm) and up
900-1500Lb: 6"(150mm)and up
