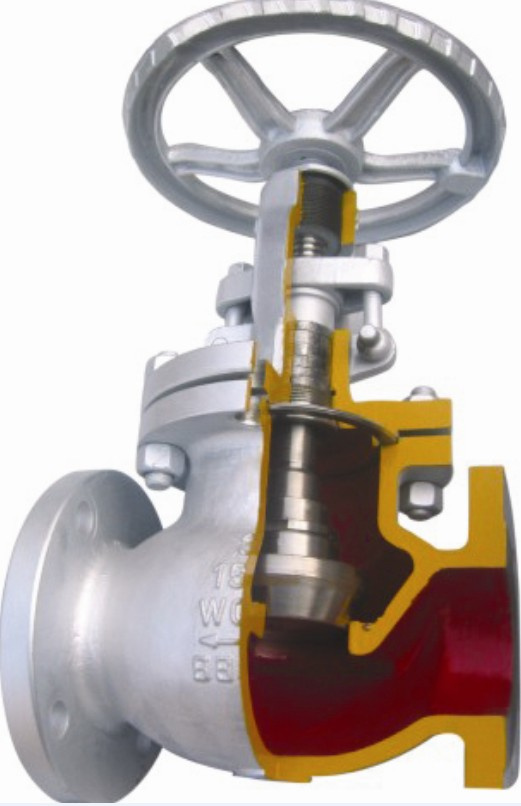

Globe valve is extensively used in petroleum field, energy field, metallurgy, chemical industry, power station and so on, including forged, stainless steel, cast steel. The main materials of valve body are WCB\CF8\CF8M\CF3\CF3M\A105\F304\F304L\F316\F316L\chromium-molybdenum steel\chromium-molybdenum vanadium steel and so on. Gate valves are accordance with GB, API, ANSI, JIS, BD, DIN, NF
Specifications of Gear operated globe valves:
1) Size: 2 - 48"
2) Class: 150lb - 2500lb
3) Material: WCB, LCB, CF8 304, CF8M 316, CF3 304L, CF3M 316L, WC1, WC6, WC9, CN7M, Monel etc.
Constructions: OS&Y, Bolted Bonnet and Pressure Sealed Type Solid,
Flexible or Split Wedge Design Back-seating, Renewable Seat Ring Renewable Seat Ring & wedge,
Full Port Or Reduced Bore
To MR 0175 and MR 103 on request
F. E.:
Body: ASTM A216 WCB
Bonnet: ASTM A216 WCB
Disc: ASTM A216 WCB +13Cr or ASTM A216 + STL
Handwheel: Ductile Cast Iron
Packing: Graphite
Seat: A105 +13Cr or A105 +STL
Stem: ASTM A182 F6a (13Cr)
Jinggong Valve Factory is one of the leading valve manufactures in China which was established in 1978. It can offer a wide variety of materials and sizes of valves which was extensively used in petroleum field, energy field, metallurgy, chemical industry, power station and so on, including the butterfly valve, ball valve, globe valve, gate valve, check valve, needle valve, control valve, knife gate valve, bellows valve and other special valves. The main materials of valve body are ductile iron (for gas valve), cast and forged carbon steel, high-temperature alloy steel and anti-corrosive austenitic stainless steel etc. Its nominal diameter is 1/8"-80" and nominal pressure is 150lb-2500lb.
Meanwhile, our products had acquired national pressure pipeline AZ authentication, API6D, CE certification and ISO9001 standard in Moreover, our factory is one of the members of Materials Source Market of Sinopec, Supplying Network of valves of National Power Systems, the firs rate supplying network of high-MID pressure valves of CNPC, China General Machinery Valve Industry Association, Wenzhou Pump & Valve Association and Scientific & Technological Information Network of Machinery Industry Valve.
Our works had got the right to import and export, thus ours products had exported to many countries, such as the Africa, Europe, South Asia, Japan, North America, Middle East, etc. Accordingly, we had earned good reputation between our clients in those countries for ours high quality, competitive price and excellent after sale services.
We adhere to two F, that is "Credibility First, Quality First". We endeavor to continuously supplying our best quality and efficient services to all of our customers and giving every user and consumer in the world a chance of enjoying the benefits of our cooperation. All your inquiries will be met with a quick response and courteous welcome.
