API High Pressure Cast Steel Wcb Stem Rising Glange Gate Valve Cl600, 6inch
| Price: |
US $ 690/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |

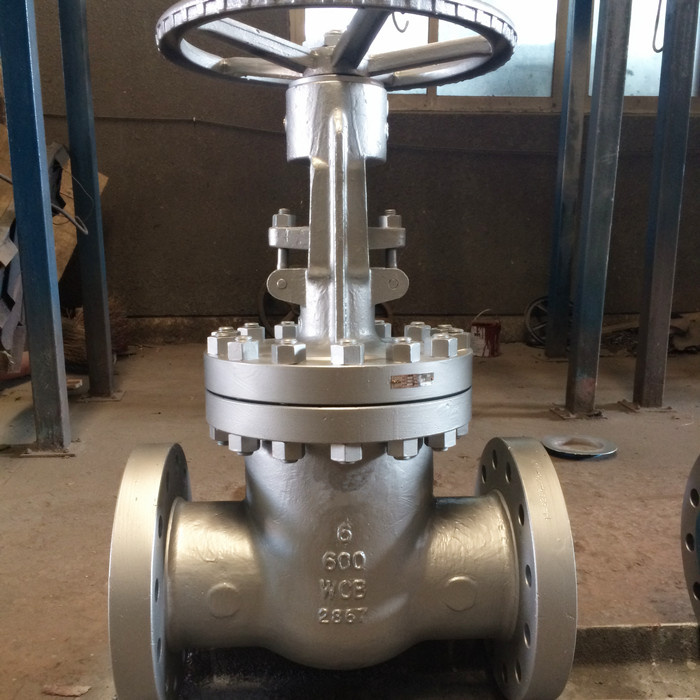

Cast steel Gate Valve, Class600, Body: WCB/13CR, 6", Flexible Wedge, OS&Y, BB, RF
Main Products: gate valve, globe valve, check valve, ball valve, bellow valve
Sizes: 2" - 36"
Pressure class: 150-2500Lb
Connection: RF, BW, RTJ
Material: WCB, WCC, WC6, WC9, CF8, CF8M, CF3, CF3M, C5 ETC.
Guarantee: 18months; OEM offer
Suitable medium: Water, oil, gas...
STANDARDS:
Design and Manufacture: API600, ASME B 16.34, BS 1873
Inspection and Test: API598
End flange dimension: ASME B16.5 (for NPS≤ 24); AMSE B16.47 series B
End flange dimension: ASME B 16.25
Socket-weld dimension: ASME B16.11
Face to face and end to end: ASME B 16.10
Pressure-temperature rating: ASME B16.34
Wall thickness dimension: API600 and BS1868
Packing: Wooden case, Plywood case
|
1 |
Body |
A216-WCB |
|
2 |
Bonnet |
A216-WCB |
|
3 |
Wedge |
A216-WCB+13CR |
|
4 |
Stem |
A182-F6a |
|
5 |
Seat ring |
A105+13CR |
|
6 |
Stem backseat |
A276-420 |
|
7 |
Bonnet gasket |
SS304+GRAPHITE |
|
8 |
Bonnet stud |
A193-B7 |
|
9 |
Bonnet stud nut |
A194-2H |
|
10 |
Packing |
GRAPHITE |
|
11 |
Gland |
A276-420 |
|
12 |
Gland Flange |
A216-WCB |
|
13 |
Eyebolt pin |
CARBON STEEL |
|
14 |
Eyebolt pin |
A193-B7 |
|
15 |
Eyebolt nut |
A194-2H |
|
16 |
Grease fitting |
COPPER ALLOY |
|
17 |
Yokesleeve |
A439-D2 |
|
18 |
Yokesleeve jam nut |
ANSI 1025 |
|
19 |
Handwheel |
ASME A395 |
|
20 |
Handwheel nut |
ANSI 1025 |
| Prod Model: |
Z41H |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| 6 Inch: |
Class 600 |
| OS&Y: |
Bb |
| Connection Form: |
Flange |
| Material: |
Carbon Steel |
| Seal Surface: |
Wedge Gate Valve |
| Thread Position Of Valve Rod: |
Outside Gate Valve |
| Application: |
Industrial Usage |
Our factory, Gao Dong Valve Co., Ltd is located in Oubei Town Of Wenzhou City, Zhejiang Province, which is known as the homeland of China pump and Valves.
Our company is a professional valve manufacturer, specialized in design, research, manufacturing and distribution.
Our company has passed the certificates of ISO 9001, ISO 14001, ISO 18001 international quality management system smoothly, and already got the certificate of API6D, CE and TS.
The main products include: Gate Valve, Globe Valve, Check Valve, Ball Valve, Low Temperature Valve, Bellows Valve and Marine Valve.
Company even manufactures forged steel valve, cast steel American standard valve, flat gate valve, stainless steel valve, butterfly valve, etc.
Better than others in quality, prices and manufacturing time required, because it got its own staff of over 400, including senior management person, senior engineers and engineers working with technicians, not like others, which hire workers and their staff for time being when order is placed.
Our company has got reputation of sincere cooperation, high ambition and assurance of quality as having its own staff, not like others.
Inside nominal diameter: DN8~DN1000 (1/4"~40")
Nominal Pressure: PN1.0~PN42.0MPa (150LB~2500LB).
The material of main body: A105N, LF2, F5, F11, F22, F304, F304L, F316, F316L, WCB, WC6, WC9, CF8, CF8M, CF3 and CF3M etc.
The design standard: API602, ANSI B16.34, API6D, API600, API603, DIN, JIS, GB, HG, and BS etc.
Meanwhile, we can also accept and manufacture as per customer's requirement.
