We are a leading manufacturer of DIN WCB gate valve PN16-PN160, API WCB gate valve CLASS150-CLASS2500, etc.

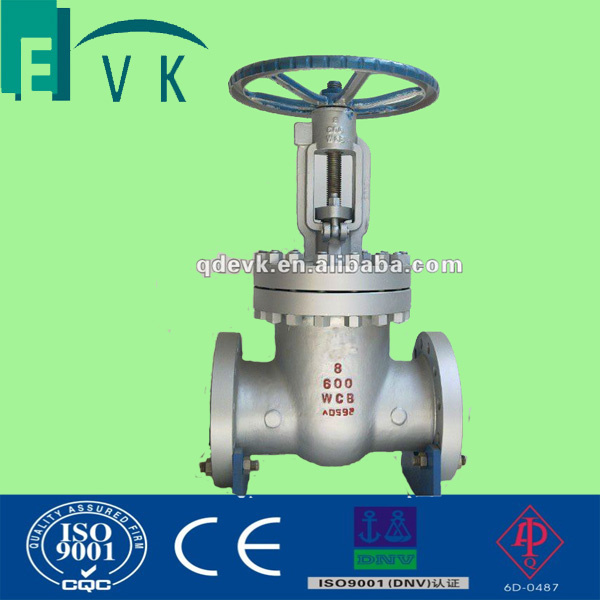

DIN WCB Gate Valve
Outside screw stem rising through handwheel type gate valve, BB, API&ISO certification, 40 years` experence, wholesales price.
Flexible/Solid wedge gate, PTFE or combined packing material, Belleville Spring Loaded Packing Impacting System, Forged Steel Seat, Back Seating Design, Integral Forged Design of Stem, Extended Stem Optional Specification, Rising/Non-rising Stem.
Specifications:
1. Design Standard: API 6D, API 600, ISO 14313, ISO 10434, DIN 3352
2. Face to face standard: ASME B16.10, DIN 3202, EN558-1, ISO 5752
3. Connection standard: ASME B 16.5, ASME B 16.47 A, API 605, ASME B 16.25-2007, MSS-SP-44, ASME B 16.47B, EN1092-1, DIN 2544, DIN 2545, DIN 2546, etc.
4. Testing Standard: API 6D, API 598, API 600, ISO 14313, ISO 10434, ISO 5208, EN 12266
5. Connection: Butt Welding, Flange
6. Pressure Rating: Class 150LB-2500LB(PN10-PN420)
7. Size: NPS 2"-36"
8. Material: WCB, WC6, WC9, CF8, CF8M, CF3, CF3M, etc.
9. Actuator: Handwheel, Bevel gear, Electric, Pneumatic, etc.
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, MID East, Eastern Asia, Western Europe, etc.
Certificates: ISO9001 TS CE API6D
|
Steel Gate Valve |
|
|
Standards applied |
API. ASME, ANSI, NACE, CE/ EN, DIN, JIS, BS, ISO, TS, GB, etc. |
|
Flange standard |
AASME B16.5, B16.47 series A or B. |
|
Face to face end |
ASME B16.10 |
|
Pressure temperatur rating |
ASME B16.34 |
|
Inspection and test |
API598 |
|
Main material |
WCB, WCC, LCB, CF8, CF8M, CF3, CF3M, CN7M, CF8C, 4A, A105, LF2, F304, F316, F304L, F316L, F321, F51, ect. |
|
Gasket of cover flange |
stainless steel add flexible graphite combined gasket. |
|
|
stainless steel add flexible graphite wounded gasket. |
|
|
stainless steel add flexible graphite wounded gasket,metal ring joint gasket on optional. |
|
Pressure rating |
Class 150 to Class 2500 (PN2.5 to PN 420) |
|
Operative temperature |
-196 °C to 980 °C ( -320.8 °F to 1796 °F) |
|
Optional operation |
Manual, Gear, Electric, Pneumatic, Hydraulic. |
EVK FITTING GROUP Co., Ltd (China) is a leading group, engaged in manufacturing valve, pipe fitting and flange, affilicating Qingdao EVK Industrial Co., Ltd, Yantai EVK Valve Manufacturing Co., Ltd, Hebei EVK Pipe Fitting Co., Ltd and Tianjin EVK Flange Fabrication Co., Ltd. EVK Group has more than 2000 staffs and covers around 150000 square meters totally.
Main production includes:
Valve: Cast iron/Ductile iron/Cast steel/Forged steel Valve( DIN3352 Resilient seated F4/F5 Gate valve, DIN3352 F4/F5 metal seated Gate valve, BS5163/BS5150/AWWA C509 Gate valve, API600 Gate valve, Wafer/Lug/Double flange butterfly valve, DIN/MSS Globe valve, Wafer/swing check valve, Y-strainer, JIS marine valve)
Pipe fitting: Carbon steel butt welding pipe fitting(Elbow, Straight and reducing tee, concentric and eccentric reducer, cap), Forged steel pipe fitting(Elbow, Tee, Reducer), Malleable iron pipe fitting.
Flange: Carbon steel and stainless steel forged flange(Flat flange, welding neck flange, slip on flange, blind flange).
Autoparts: Brake shoes, Brake pads, Brake discs, Brake drums.
We exported to more than 25 countries in the world, our main customers have CRANE, WALWORTH, OARI, etc. Our company was awarded with ISO9001 certificate and CE for our valve, pipe fitting and flange products.
Our blief is "Do friend first, Do business second", we welcome all friends from all over the world to do business together!
