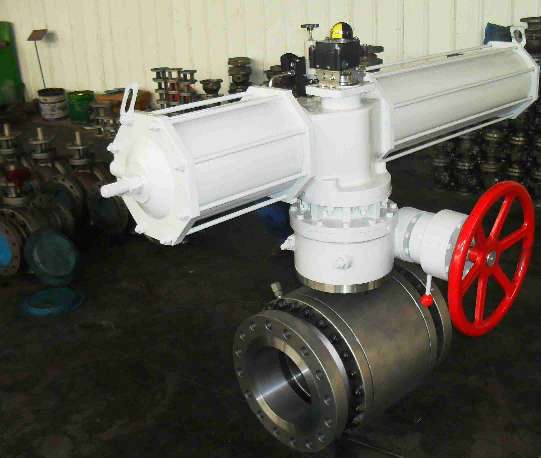

API Pneumatic Forged Ball Valve (Q347)
Price: |
US $ 510/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T |
DESIGN STANDARDS:ASME Standards:B1.20.1Pipe Threads, General Purpose(Inch)B16.10Face-to-Face and End-to-End Dimensions of ValvesB16.25Buttwelding EndsB16.11Forged Fittings, Socket-Welding and ThreadedB16.5Flanged Fittings and Pipe FlangesB16.47Large Diameter Steel FlangesAPI Standards:6DSpecifications for Pipeline valves598Valve Inspection and Testing607Fire test for soft-seated quarter-turn valves6FASpecification for Fire Test for ValvesMSS Standards:SP-55Quality Standard for Steel Castings for Valves, Flanges, and Fittings and Other Piping Components-Visual Method for Evaluation of Surface IrregularitiesSP-54Quality Standard for Steel Castings for Valves, Flanges, and Fittings and Other Piping Components-Radiographic Examination MethodSP-53Quality Standard for Steel Castings for Valves, Flanges, and Fittings and Other Piping Components-Magnetic Particle Examination MethodDESIGN FEATURE:3-pieces body, full bore. Fire-Safe certified, trunnion ball with spring loaded seats, blow out proof stem, flanged connections.Non-removable antistatic devices assure electric continuity between ball andBody through the stem.Double block & bleed function, drain&vent, Sealant injection on stem & seats.All wetted component materials and bolting meet NACE MR. 01.75 latest edition as standard.Asbestos free.APPLICATION:RefineryChemicalPetrochemicalPower plantGasFactory Show:Recently Exhibitons Show:The Valve World Expo ( Sep. 2012,German)
The OTC exhibition ( May, 2013 Houston)
The Valve Word Expo ( Sep. 2013, China)
Standards: |
API, DIN, GB, JIS, BS, etc.
|
Connection end: |
RF, RTJ, BW, SW, NPT
|
Pressure: |
150LB-2500LB, ( PN16 - PN250, 10K - 40K )
|
Size: |
1/2" -36" , ( DN15 - DN900 )
|
Packing: |
Export Packing
|
Prod Model: |
Q347F |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Channel: |
Straight Through Type |
Structure: |
Fixed Ball Valve |
Application: |
Industrial Usage |
Connection Form: |
RF, Rtj,Sw, Bw, etc. |
Type: |
Pneumatic Ball Valve |
Material: |
Wcb,A105,CF8,CF8m,Lcb,etc. |
Temperature: |
-64deg ~+550deg C |
Nominal Pressure: |
ANSI Class 150-2500 |

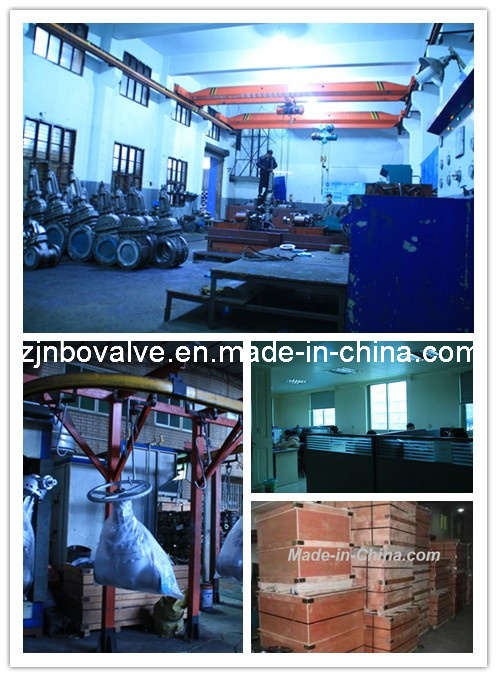

Zhejiang Number One Valve Co., Ltd(ONEV) has been for 15 years in Valve manufacture, design, sales and service. The company covers an area of 18000 square meters.
The main products of ONEV are Ball valve, Gate valve, Globe valve, Check valve, Plug valve, Butterfly valve, etc., API, ANSI, BS, DIN, NF, JIS, JPI, GB, JB. Standard.
ONEV has been accredited to CE, API, ISO 9001: 2000, international qualified certificates. Has set up the perfect quality control and guarantee system to ensure excellent quality and best service.
ONEV for years experience and service, in Chinese industry line and important projects of oil refining, gas pipelines, petroleum, electric power, pharmaceuticals etc. Meantime, our products make a broad market in more than twenty countries over the world, distributed in Europe and United States, South American, Middle East, Southeast Asia, Africa, and have enjoyed good reputation and trust. We will try our best to supply superior quality products, satisfied after-sale service and technical supports to customers.
ONEV always persist in the idea of "All for customer satisfaction" to become bigger and stronger for country valve construction. We warmly welcome all the partners come to co-operate with us and make a brilliant future.
