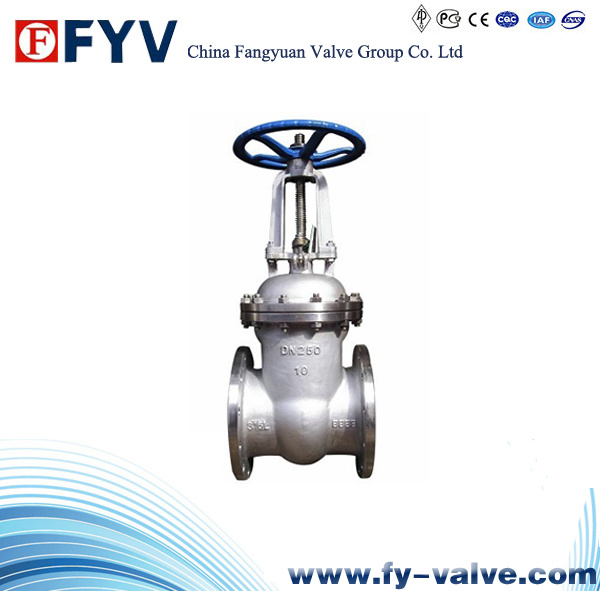

API Stainless Steel Gate Valve

API Stainless Steel Gate Valve
Price: US $ 10-300/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T
Product Detail

Flanged Gate Valve
Class: 150#~2500#
Material: WCB, WC6, WC9, CF8, A105, AISI 4130, Duplex SS
Size: 1/2''-48''
Face to face: ANSI16.10 API standard
Designed and Tested in Accordance to: API-6A, API 6D, ANSI, JIS, DIN, GB, etc
Rising Stem Gate Valve
Designed and Tested in Accordance to API-6A
Factory pressure test accordance to API-6D or API-6A. Sour service models to NACE MR-01-75.
Low alloy steel or stainless steel valve body & bonnet.
Available in working pressure from 2, 000 to 5, 000psi and flange size from 2" to 5".
Offer with thread, weld and flanged end connection.
Replacement and repair of valve core is conveniently.
Valve volume and weight is less than other gate valve

Design Feature:
Design of Disc
Gate vlaves with NPS>2 are of flexible wedge gate; Gate valves with NPS <2 are of solid wedge gate.

Body and Bonnet Connection
The body and bonnet of Class 150~Class 900 gate valves are usually bolted bonnet design. And Class 1500~Class 2500 gate valves are usually of pressurized seal design.

Gasket of Cover Flange
Carbon steel or stainless steel+flexible graphite combined gasket is used for Class 150 gate valve; Stainless steel+flexible graphite wounded gasket is used for Class 300 gate valve; Stainless steel+flexible graphite wounded gasket is used for Class 600 gate valve, and ring joint gasket is also optional for Class 600 gate valve; Ring Joint gasket is used for Class 900 gate valve; Pressurized seal design is used for Class 1500~Class 2500 gate valve.

Actuation
Hand wheel or gear box is usually used for gate valve actuation. Chain wheel and electric actuator can be also used for gate valve actuatuo if being requested by the customers.

Packing Seal
Molded flexible graphite is used for packing material. PTFE or combined packing material can be also used if being requested by the customers. The internal surface of the stuffing box, of which area is contacted with the packing, is of excellent finish(Ra 3.2um). The stem surface, contacting with the packing, should be rolled and pressed after being precisely machined, so as to reach to the high finish and compactness(Ra 0.8um)and ensure the reliable tightness of the stem area.

Belleville Spring Loaded Packing Impacting System
If being requested by the customer, the Belleville spring loaded packing impacting system can be adopted for enhancing the durability and reliablity of the packing seal.

Back Seating Design
All our gate valves have the back seating design. In most cases, the carbon steel gate valve is fitted with a renewable back seat. For stainless steel gate valve, the back seat is machined directly in the bonnet or is machined after welding. When the gate valve is at fully open position, the sealing of the back seat can be very reliable. However, as per the requirement of API600, it is not advisable to add or change packing by the mean of back seating when the valve is pressure containing.

Seat
For carbon steel gate valve, the seat is usually forged steel. The sealing surface of the seat is spray welded with hard alloy specified by the customer. Welded seat is used for NPS<10 gate valves, and welded on seat can be also optional if being requested by the customer. Welded on seat is used for NPS<10 carbon steel gate valves. For Stainless steel gate valve, intergral seat is usually adopted, or to weld hard alloy directly integrally. Threaded or welded on seat is also optional for stainless steel gate valve if being requested by the customer.

Stem Design
The stem is of integral forged design. The minimum diameter of the stem shall per the standard requirement. The connection of the stem and disc is T type. The strength of the connecting area is bigger than that of the T threaded part of the stem. The strength test if that area conforms to API 591.
ITEM PART NAME MATERIAL
1 Body ASTM A216 GR.WCB
2 Seat Ring ASTM A105 + Stellite Faced
3 Disc ASTM A216 GR.WCB+13Cr Faced
4 Stem ASTM A182 GR.F6
5 Gasket Soft Iron + Graphite
6 Bonnet ASTM A216 GR.WCB
7 Bonnet Bolt Nuts ASTM A194 GR.2H
8 Bonnet Bolts ASTM A193 GR.B7
9 Backseat Bushing ASTM A276 Type 410
10 Stem Packing Braided Graphite & Die Formed Graphite Ring
11 Eye Bolt Pins Die formed Graphite Ring Carbon Steel
12 Gland Eye Bolts ASTM A307 GR.B
13 Gland ASTM A276 Type 410
14 Gland Flange ASTM A216 GR.WCB
15 Eye Bolt Nuts ASTM A194 GR.2H
16 Grease Nipple Carbon Steel
17 Stem Nut ASTM A439 GR.D-2
18 Retaining Nut Carbon Steel
19 Hand wheel Ductile Iron
20 Hand wheel Nut Carbon Steel
21 Screw Carbon Steel
22 Yoke ASTM A216 GR.WCB
23 Yoke Pan Bolt Nuts ASTM A194 GR.2H
24 Yoke Pan Bolts ASTM A193 GR.B7
25 Bearing Steel
Cast steel gate valve-Class 150 dimensions & weights
Size L L 1 L2 H W Weight RF
in mm in mm in mm in mm in mm in mm kg
2" 50 7.00 178 8.50 216 7.50 191 15.31 389 8 200 17
2.5" 65 7.50 191 9.50 241 8.00 203 17.28 439 8 200 23
3" 80 8.00 203 11.12 283 8.50 216 19.69 500 10 250 29
4" 100 9.00 229 12.00 305 9.50 241 23.43 595 10 250 47
6" 150 10.50 292 15.88 403 11.00 279 30.59 975 14 350 80
8" 200 11.50 267 18.00 419 12.00 305 38.39 777 14 350 129
10" 250 13.00 330 16.50 457 13.50 343 45.67 1160 16 400 192
12" 300 14.00 381 19.75 502 14.50 368 54.72 1555 18 450 287
14" 350 15.00 356 22.50 572 15.50 394 61.22 1390 22 560 410
16" 400 16.00 406 24.00 610 16.50 419 71.30 1811 24 600 571
18" 450 17.00 610 26.00 660 17.50 445 82.80 2103 25 640 720
20" 500 18.00 432 28.00 711 18.50 470 90.55 2300 27 680 1170
24" 600 20.00 457 32.00 813 20.50 521 102.72 2609 30 760 1466
28" 700 24.00 508 36.00 914 - - 130.98 3327 24 610 1931
30" 750 24.00 610 36.00 914 - - 141.97 3606 24 610 2380
32" 800 28.00 711 38.00 965 - - 145.98 3708 24 610 2490
36" 900 28.00 711 40.00 1016 - - 154.49 3924 24 610 3600
40" 1000 30.00 762 42.00 1067 - - 168.50 4280 24 610 4580
42" 1050 31.00 787 43.00 1092 - - 175.39 4455 32 810 4710
48" 1200 34.00 864 46.00 1168 - - 193.31 4910 32 810 6500
