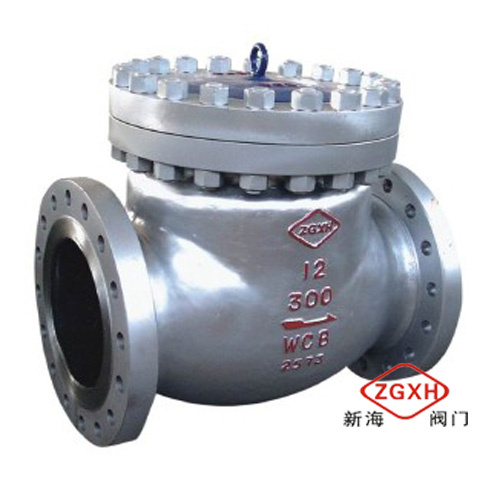

API Swing Check Valve (H44)
| Price: |
Negotiable/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
3/Set |
| Pay Type: |
L/C,T/T |
Material: WCB, LCB, CF8 304, CF8M 316, CF3 304L, CF3M 316L, WC1, WC6, WC9, CN7M, Monel
Class: 150Lbs Size: 2"~36"
Class: 300Lbs Size: 2"~36"
Class: 600Lbs Size: 2"~24"
Class: 900Lbs Size: 2"~24"
Class: 1500Lbs Size: 2"~20"
Class: 2500Lbs Size: 2"~12"
Stardards:
A) Design and manufacture: BS1868-1873, API60D, ASME B16.34
B) End flange dimensions: ANSI B16.5, ASME B16.47A, ASME B16.47B, API605
C) Face to face: ASME B16.10
D) Butt welded end: ANSI B16.25
E) Pressure-temperature ratings: ASME B16.34
F) Inspection and test: API598, API6D
|
Parts Name |
Carbon Steel to ASTM |
Alloy Steel to ASTM |
Stainless Steel to ASTM |
|
1 |
Body |
A216 WCB |
A352 LCB |
A217 WC1 |
A217 WC6 |
A217 WC9 |
A217 C5 |
A351 CF8 |
A351 CF8M |
A351 CF3 |
A351 CF3M |
|
11 |
Cover |
A216 WCB |
A352 LCB |
A217 WC1 |
A217 WC6 |
A217 WC9 |
A217 C5 |
A351 CF8 |
A351 CF8M |
A351 CF3 |
A351 CF3M |
|
3 |
Disc |
A216 WCB |
A352 LCB |
A217 WC1 |
A217 WC6 |
A217 WC9 |
A217 C5 |
A351 CF8 |
A351 CF8M |
A351 CF3 |
A351 CF3M |
|
4 |
Hinge |
A216 WCB |
A352 LCB |
A217 WC1 |
A217 WC6 |
A217 WC9 |
A217 C5 |
A351 CF8 |
A351 CF8M |
A351 CF3 |
A351 CF3M |
|
9 |
Bolt |
A193 B7 |
A320 L7 |
A193 B7 |
A193 B16 |
A193 B16 |
A193 B16 |
A193 B8 |
A193 B8 |
A193 B8 |
A193 B8 |
|
8 |
Nut |
A194 2H |
A194 4 |
A194 2H |
A194 4 |
A194 4 |
A194 4 |
A194 8 |
A194 8 |
A194 8 |
A194 8 |
|
5 |
Disc Nut |
A194 2H |
410 |
410 |
410 |
410 |
410 |
304 |
316 |
304L |
316L |
|
10 |
Gasket |
SS Spiral Wound W/graphite, or SS Spiral Wound W/PTFE, of Reinforced PTFE |
|
12 |
Eye bolt |
Steel |
|
7 |
Yoke |
A216WCB |
A352 LCB |
A217 WC1 |
A217 WC6 |
A217 WC9 |
A217 C5 |
A351 CF8 |
A351 CF8M |
A351 CF3 |
A351 CF3M |
| Prod Model: |
H44 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Industrial Usage |
| Material: |
Stainless Steel |
| Structure: |
Swing |
| Connection Form: |
Flange |
Zhejiang Xinhai Valve Manufacturing Co., Ltd, located in Oubei, Wenzhou city, was established in 1986. with more than 20 years experience, our company now becomes a professional valve manufacturer by developing, manufacturing, marketing and servicing. And it covers an area of 10, 000 square meters and has two subsidiary factories.
Our product includes gate, check, globe, ball, butterfly, plug, strainer and other valve. The valves are manufactured according to ANSI, API, DIN, GOST, BS, JIS, Chinese GB standers and the customers' requirements. These products have been installed throughout the world, having a wide variety of applications in the Gas, Oil, Refining, Chemical, Marine, Power Generation and Pipeline Transmission Industries.
Pressure range: Class125-Class2500, PN6-PN420
Size range: NPS1/2-NPS48
Operation type: Manual, gearbox, chain wheel, pneumatic, electronic, etc
Connection End: Flanged, BW, SW, NPT, wafertype, etc.
Materials(casting): WCB, WCC, LCB, LCC, LC1-3, CF8, CF3, CF8M, CF3M, CF8C, CN7M, CA15, C5, WC5, WC6, WC9, Monel, etc.
In order to introduce the international quality management system, Xinhai have got the approval o ISO 9001, API-6D, CE and Chinese TSG certification. Also, Xinhai established a multi-functionl phys-chemical lab to futher supervise the quelity time to time and fittde out spectrum analyzer, portable spectrograph(PMI), impact tester, hardness meter, tensile tester, thickness meter, magnetic particle tester, gugitive emission tester and NDE testing equipment.
The main target of Xinhai is to offer a high quality products and service to ensure the highest degree of satisfication and fidelity of our customers. Welcome the new and old customers to cooperate with Xinhai to explore wider global markets and create more brilliant future together!
