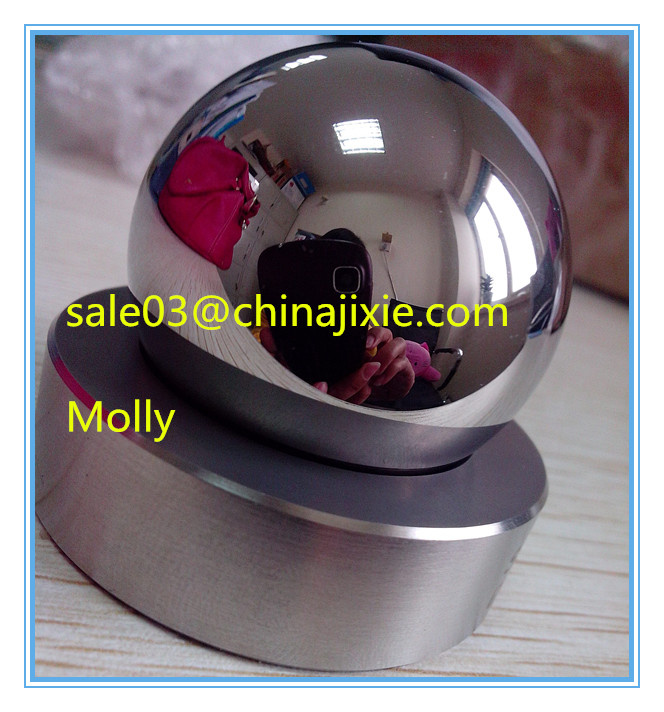

API valve balls and valve seats / sucker rod pumps valve balls and valve seats
The valve balls and valve seats are main components and parts of the sucker rod pump.
For sealing of valves of oil pumps in petroleum industry's sand containing wells, viscous oil wells, sea oil wells,high pressure sulfur resistant oil wells, compatible Cemented Carbide valve seats, etc.Various grades for cemented carbide balls/pellets can be supplied according to customer's drawings.The surface finish, tolerance class and tolerances of dimensions have respectively reached the standards of the machine industry.
Specifications of Valve Ball & Valve Seat for API 11AX Sucker Rod Pumps:
valve units main specifications for reference:
API No. | Seat Size | Ball Size |
V11-106 | 1-1/16" | 5/8" |
V11-125 | 1-1/4" | 3/4" |
V11-150 | 1-1/2" | 15/16" |
V11-175 | 1-3/4" | 1-1/8" |
V11-200 | 2" | 1-1/4" |
V11-225 | 2-1/4" | 1-3/8" |
V11-250 | 2-3/4" | 1-1/16" |
V11-375 | 3-3/4" | 2-1/4" |
Standard: API Spec 11AX
High Precission in Shape;
Strong corrosion resistance
Excellent mechanical property
Materials: Stainless Steel, Tungsten Carbide, Titanium Carbide, Cobalt Alloy
Main Specifications for reference:
Dimensional Symbol | V11-106 | V11-125 | V11-150 | V11-175 | V11-200 | V11-225 | V11-250 | V11-375 |
Ball-D +0.020/-0.010 (+0.51/-0.25) | 15.88 (0.625in) | 19.05 (0.75in) | 23.83 (0.938in) | 28.58 (1.125in) | 31.75 (1.25in) | 34.93 (1.375in) | 42.88 (1.688in) | 57.15 (2.25in) |
Seat-ID ± 0.050 (± 1.27) | 11.68 (0.46in) | 13.97 (0.55in) | 17.02 (0.67in) | 20.96 (0.825in) | 24.38 (0.96in) | 26.92 (1.06in) | 33.27 (1.31in) | 43.18 (1.7in) |
Seat-OD +0.000/-0.005 (+0.00/-0.13) | 20.14 (0.793in) | 23.32 (0.918in) | 29.67 (1.168in) | 35.26 (1.388in) | 37.54 (1.478in) | 43.69 (1.72in) | 51.05 (2.01in) | 78.03 (3.072in) |
Seat-H +0.020/-0.010 (+0.51/-0.25) | 0.500 (12.70in) | 0.500 (12.70in) | 0.500 (12.70in) | 0.500 (12.70in) | 0.500 (12.70in) | 0.500 (12.70in) | 0.500 (12.70in) | 0.750 (19.05in) |
