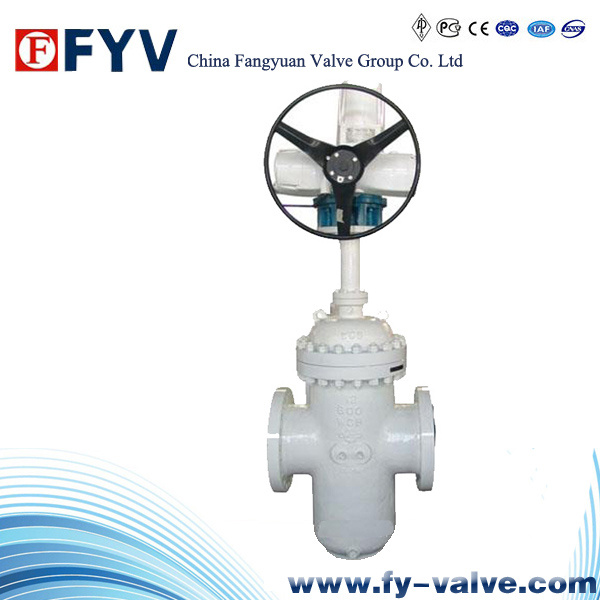

API Wcb Flanged Gate Valve with Gear

API Wcb Flanged Gate Valve with Gear
Price: US $ 99-299/Piece
Trade Terms: FOB,CIF,EXW
Min Order: 1/Piece
Pay Type: L/C,T/T,Paypal
API Slab Gate Valve
Slab gate valves are usually used for the oil & gas pipe-lines.

Applicable standards of API Slab Gate Valves:
A) Design & Manufacture: API 600, API 6D, BS 1414
B) Face to Face: API 6D, ASME B16.10, EN 558
C) Connection End: ASME B16.5, ASME B16.25, EN 1092, EN 12627, JIS B2220
D) Test: API 598, API 6D, EN 12266

Sizes: 2" - 48" or DN50 - DN1200
Pressure Rating: Class 150 - Class 2500 or PN 16 - PN 420
Valve Materials: WCB, LCB, WC6, WC9, C12, C5, CF8, CF8M, Duplex Stainless Steels, etc.

Operated by: Handwheel, Gear, Pneumatic, Hydraulic and Electric actuator

Slab gate valve are manufactured with a full bore, slab gate, rising stem OS&Y and floating seats.
Slab gate is a simple solid gate design, featuring metal-to-metal seal between gate and seats, to apply for the most severe service condition, including corrosive and abrasive fluid environments. A floating seat is designed to match the slab gate. A belleville spring and O-ring between each seat and body ensure a tight seal against the slab gate. The floating slab gate uses the natural force of line pressure to obtain a dynamically tight downstream seal in high-pressure differential applications. Low-pressure sealing is accomplished with an o-ring that energizes the seat and minimizes corrosion and debris build up. Common trims are available.

Double block and bleed capability and automatic relief of excess body pressure are standard feature of this seat design.
Slab Gate valve design minimizes and eases the maintenance allowing for the service operations to be done without the removal of the valve from the line.

Features of API Slab Gate Valves:
Floating slab gate
Spring/pressure loaded seat ring with relief valve
Bubble tight shut off at high and low pressure
Bi-directional operations
Double Block and Bleed performance available
Seat faces protected from erosion by flow
Position indicator
Top entry assembly for on-line maintenance
Various actuation (Electric, Pneumatic and Hydraulic actuators)


Design&Manufacture API 6D, ASME B16.34
Face to Face API 6D, ASME B16.10, DIN 3202
Connection End ASME B16.5, ASME B 16.47, DIN2543-2550
Test ISO5208, API 600, BS 6755


Prod Model: FYV
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: 2''-48''
Rating: Class150-2500lb
Operation: Handwheel,Gear,Pneumatic,Electric
Ends Con,: Sw,Bw,Rtj,Butt-Bolt
Connection Form: Flange
Material: Carbon Steel
Seal Surface: Parallel Gate Valve
Thread Position Of Valve Rod: Inside Gate Valve
Application: Household Usage
Fangyuan Valve Group Co. Ltd, seated at Wuxing Industrial Zone, Oubei, Yongjia County, so called as "Pump & Valve Village of China", close to the national scenic spot Nanxijiang River to the east and facing the downtown of Wenzhou City to the south, and established in 1998 with the former as Zhejiang Fangyuan Valve Manufacturing Co. Ltd, has got a great achievement via hard work and continual going forth ahead and become a magnate of plate gate valve from an unknown small enterprise and leads the future of this industry. Fangyuan Valve Group Co. Ltd was derived from Zhejiang Fangyuan Valve Manufacturing Co. Ltd in 2005 and holds 5 stock subsidiaries, three production bases in Wenzhou, Shanghai and Lishui and a cast base in Lishui, a total registered capital up to 4, 000, 000 USD, a total land area 110000m2, over 600 staff members, 60 of which are technicians, a digital process center and more than 350 sets of various middle and large equipments and an annual output up to 12000 tons.

This Group comes as a key enterprise among the said"Pump & Valve Village of China"and a well known enterprise in the national valve industry and specializes in the production of plate gate valve, gas valve, electric station valve etc., with the development, design and invention patent know-how up to the advanced technical level of the world and the leading level of the nation and some of the products used to replace the imported ones. This Group has been accredited to ISO9001, API6A/6D, CE, AZ etc., won the first prize of scientific advance of Zhejiang Province and elected as a member of the first-grade supply network of China Petroleum, a member of China Petrochemical Resource Market, a member of No. 1 Energy Network, a member for supply of the national electric power system, an appointed production enterprise by Chemical Equipment General Corp., a Wenzhou high-tech enterprise, a start enterprise of Yongjia County, one of the 30 powerful enterprises among the said village and a banking credit AAA grade enterprise in the successive recent years. It holds a powerful strength in the technical, management and market etc. Respects and a notable superiority in the severe market competition.

The products, approved by the nation and province early or late, have been elected as quality products of Zhejiang Province and well-known ones of Wenzhou. This Group follows the guide policy of"takeing people as the base, managing the company with laws, prospecting the enterprise with quality, continuing innovations"and makes the products well sold to all over the country and USA, Canada, the Middle East, Europe etc. World markets, greatly favored by the users therein. Therefore a solid basis has been made for the further open-up of the world market, for the making of Fangyuan brand, for the national industrial progression and for the great target to create a valve magnate of China and step forward to the 50 powerful valve companies of the world.

Slab gate valve: Slab gate and expanding gate, double sealed upstream and downstream design, double block and bleed open and closed design. Size: DN50~DN1400, pressure: PN16~PN420, handwheel, gear, electric, pneumatic.

Fully welded ball valve.

Forged steel valve. Material: A105, LF2, F11, F22, F5, F304, F316, F321 etc.
