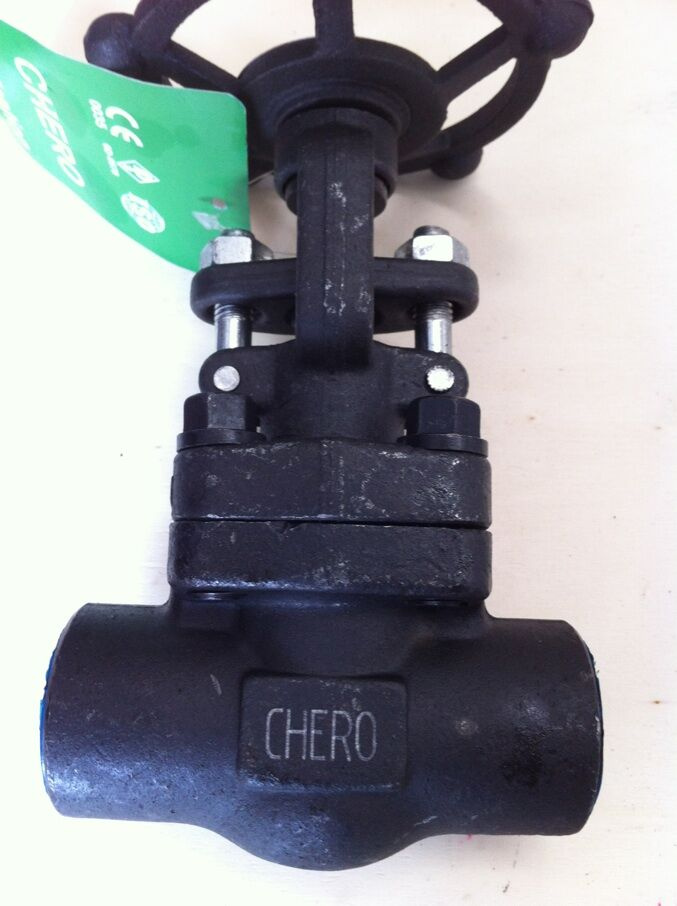

API600&API602 SW Forged Gate Valve
1. CE, ISO9001, API6D, CQC, PDO.
2. Size 1/4"~3"
3. Class 150~2500LB
A105, F5, F9, F11, F316, LF2 etc
Forged Gate Valve
1. Design and manufacture as per API 602 & ANSI/ASME B16.34
2. Full Port & Conventional Port
3. Face to Face Dimension as per ANSI B16.10
4. Structure: Bolted Bonnet, Outside Screw and Yoke (OS&Y)
Integral Backseat
5. Body Material: A105, A105N, 304, 316, F11, F22...
6. Trim: 13%Cr, F6, 304, 316, F11, F22...
7. Pressure Rating: Class150LB, Class300LB, Class600LB, Class1500LB
8. Size: 1/2" to 2"
9. Connections: Flanged End as per ANSI B16.5
Butt Welded End as per ASME B16.25
10. Suitable Medium: Water, Oil, Gas, Nitric Acid, Acetic Acid
11. Suitable Temperature: -29oC to 550oC
12. Test: API 598
Standard Material Specifications
NO. |
Part Name |
CS to ASTM |
AS to ASTM |
SS to ASTM |
Type A105 |
Type F22 |
Type F304(L) |
Type F316(L) |
1 |
Body |
A105 |
A182 F22 |
A182 F304(L) |
A182 F316(L) |
2 |
Seat Ring |
A276 420 |
A276 304 |
A276 304(L) |
A276 316(L) |
3 |
Wedge |
A276 430&410 |
A182 F304 |
A182 F304(L) |
A182 F316(L) |
4 |
Stem |
A182 F6 |
A182 F304 |
A182 F304(L) |
A182 F316(L) |
5 |
Gasket |
Corrugated SS+graphite |
SS+PTFE |
6 |
Bonnet |
A105 |
A182 F22 |
A182 F304(L) |
A182 F316(L) |
7 |
Bonnet Bolt |
A193 B7 |
A193 B16 |
A193 B8 |
A193 B8M |
8 |
Pin |
A276 420 |
A182 F304 |
9 |
Gland |
A276 410 |
A182 F304(L) |
A182 F316(L) |
10 |
Gland Eyebolt |
A193 B7 |
A193 B16 |
A193 B8 |
A193 B8M |
11 |
Gland Flange |
A105 |
A182 F11 |
A182 F304(L) |
A182 F316(L) |
12 |
Gland Nut |
A194 2H |
A194 4 |
A194 8 |
A194 8M |
13 |
Yoke Nut |
A276 420 |
14 |
H.W.Lock Nut |
A194 2H |
A194 4 |
A194 8 |
A194 8M |
15 |
Nameplate |
SS |
16 |
Handwheel |
A197 |
17 |
Bearing Gasket |
A473 431 |
18 |
Stem Packing |
Flexible Graphite |
PTFE |
Suitable Medium |
W.O.G.etc |
W.O.G.etc |
HNO3,CH2OOH etc |
Suitable Temperature |
-29~425 |
-29~550 |
-29~180 |
Note: Other materials are available upon request.
Dimensions (mm) and Weights (Kg) 800Lb
NPS |
Conv. |
3/8" |
1/2" |
3/4" |
1" |
1-1/4" |
1-1/2" |
2" |
|
Full |
|
3/8" |
1/2" |
3/4" |
1" |
1-1/4" |
1-1/2" |
2" |
L |
79 |
79 |
92 |
111 |
120 |
120 |
140 |
178 |
H(OPEN) |
158 |
158 |
169 |
197 |
236 |
246 |
283 |
330 |
W |
100 |
100 |
100 |
125 |
160 |
160 |
180 |
200 |
Weights |
Bolted |
2.1 |
2.0 |
2.3 |
4.3 |
5.9 |
6.9 |
11.1 |
15.2 |
Welded |
1.8 |
1.7 |
2.0 |
3.8 |
5.1 |
6.1 |
10.2 |
14.2 |
Dimensions (mm) and Weights (Kg) 900Lb~1500Lb
NPS |
Conv. |
3/8" |
1/2" |
3/4" |
1" |
1-1/4" |
1-1/2" |
2" |
|
Full |
|
3/8" |
1/2" |
3/4" |
1" |
1-1/4" |
1-1/2" |
2" |
L |
92 |
111 |
111 |
120 |
120 |
140 |
178 |
210 |
H(OPRN) |
169 |
197 |
197 |
236 |
246 |
283 |
330 |
354 |
W |
100 |
125 |
125 |
160 |
160 |
180 |
200 |
240 |
Weights |
Bolted |
2.5 |
4.3 |
4.2 |
6.6 |
8.8 |
12.5 |
17.2 |
23.5 |
Welede |
2.4 |
4.2 |
4.0 |
6.3 |
8.7 |
12.1 |
17.2 |
22.0 |
