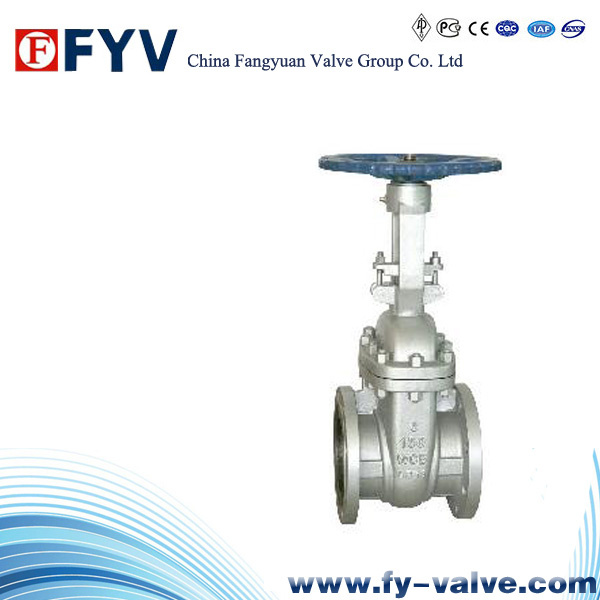

API600 Manual Cast Steel Wedge Gate Valve
Price: |
US $ 49-99/Piece |
Trade Terms: |
FOB,CIF,EXW |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,Paypal |
API 600 DESIGN
OUTSIDE SCREW AND YOKE
BOLTED BONNET (PRESSURE SEAL BONNET FOR 1500 LBS)
FLEXIBLE WEDGE, FULLY GUIDED
RENEWABLE SEAT RINGS
RISING STEM AND NON-RISING HANDWHEEL
AVAILABLE WITH GEAR OPERATOR
AVAILABLE WITH ACTUATOR
AVAILABLE WITH BY-PASS VALVE
Material:
A216-WCB
A217-WC6
A352-LCB
OTHER MATERIALS UPON CUSTOMER'S REQUEST
Ends:
FLANGED ENDS
BUTTWELDING ENDS
JIS 1OK, 20K, 30K and 40K
PN 16 and 40
API 600 Bolted Bonnet Steel Gate Valve for Petroleum and Natural Gas Industries
BS 1414 Specification for Steel Wedge Gate Valves (Flanged and Butt-welding Ends) for the Petroleum, Petrochemical and Allied Industries
ASME B16.34 Valves Flanged, Threaded and Welding Ends
ASME B16.5 Pipe Flanges and Flanged Fittings: NPS 2 through 48
ASME B16.25 Buttwelding Ends
ASME B16.10 Face to Face and End to End Dimensions of Valves
MSS SP-25 Standard Marking System for Valves, Fittings, Flanges and Unions
Structural formation | Bolt-jointed bonnet outside stem yoke structure |
Driving manner | Hand-operated,Gear-operated and Electric-driving |
Design standard | API 600 API 6D |
Face to face | ASME B16.10 |
Flanged ends | ASME B16.15 |
Test &inspection | API598 |
No. Accessory Name | Material |
1- Body | ASTM A216-WCB ASTMA217-WC1/WC6/WC9/C5 ASTMA351-CF8/CF8M/CF8C/CF3/CF3M |
2-Gate disc | ASTM A216-WCB ASTMA217-WC1/WC6/WC9/C5 ASTMA351-CF8/CF8M/CF8C/CF3/CF3M |
3-Bonnet | ASTM A216-WCB ASTMA217-WC1/WC6/WC9/C5 ASTMA351-CF8/CF8M/CF8C/CF3/CF3M |
4-Seat | ASTM A105 ASTM A182-F11/F22/F5/F9 |
5-Valve stem nut | Copper alloy |
6-Gasket | Graphite+Stainless steel |
7-Packing press-sleeve | ASTM A182Gr.F6a ASTM CHI A182-F304/F316/F321/F304L/F316L |
8-Stem | ASTM A182Gr.F6a/ ASTM A182F22 ASTMA182-F304/F316/F321/F304L/F316L |
9-Packing | Graphite |
10-Handwheel | ASTM A47-32510 |
11-Stud | ASTM A193-B7/A320-B8/A193-B8M |
12-Six angle nuts | ASTM A194-2H/A194-8/A194-8M |
13-Packing gland | ASTM A276-WCB ASTM A351-CF8/CF8M/CF8C/CF3/CF3M |
14-Back seat | ASTM A182Gr.F6a/ ASTM A182F22 ASTMA182-F304/F316/F321/F304L/F316L |
Prod Model: |
Z41H |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Size: |
2''-48'' |
Class: |
150~1500 |
Ends Con.: |
RF,Rtj,Sw,Bw |
O-Ring Sealing: |
PTFE,NBR,Rptfe |
Connection Form: |
Flange |
Material: |
Carbon Steel |
Seal Surface: |
Wedge Gate Valve |
Thread Position Of Valve Rod: |
Outside Gate Valve |
Application: |
Industrial Usage |
Fangyuan Valve Group Co. Ltd, seated at Wuxing Industrial Zone, Oubei, Yongjia County, so called as "Pump & Valve Village of China", close to the national scenic spot Nanxijiang River to the east and facing the downtown of Wenzhou City to the south, and established in 1998 with the former as Zhejiang Fangyuan Valve Manufacturing Co. Ltd, has got a great achievement via hard work and continual going forth ahead and become a magnate of plate gate valve from an unknown small enterprise and leads the future of this industry. Fangyuan Valve Group Co. Ltd was derived from Zhejiang Fangyuan Valve Manufacturing Co. Ltd in 2005 and holds 5 stock subsidiaries, three production bases in Wenzhou, Shanghai and Lishui and a cast base in Lishui, a total registered capital up to 4, 000, 000 USD, a total land area 110000m2, over 600 staff members, 60 of which are technicians, a digital process center and more than 350 sets of various middle and large equipments and an annual output up to 12000 tons.
This Group comes as a key enterprise among the said"Pump & Valve Village of China"and a well known enterprise in the national valve industry and specializes in the production of plate gate valve, gas valve, electric station valve etc., with the development, design and invention patent know-how up to the advanced technical level of the world and the leading level of the nation and some of the products used to replace the imported ones. This Group has been accredited to ISO9001, API6A/6D, CE, AZ etc., won the first prize of scientific advance of Zhejiang Province and elected as a member of the first-grade supply network of China Petroleum, a member of China Petrochemical Resource Market, a member of No. 1 Energy Network, a member for supply of the national electric power system, an appointed production enterprise by Chemical Equipment General Corp., a Wenzhou high-tech enterprise, a start enterprise of Yongjia County, one of the 30 powerful enterprises among the said village and a banking credit AAA grade enterprise in the successive recent years. It holds a powerful strength in the technical, management and market etc. Respects and a notable superiority in the severe market competition.
The products, approved by the nation and province early or late, have been elected as quality products of Zhejiang Province and well-known ones of Wenzhou. This Group follows the guide policy of"takeing people as the base, managing the company with laws, prospecting the enterprise with quality, continuing innovations"and makes the products well sold to all over the country and USA, Canada, the Middle East, Europe etc. World markets, greatly favored by the users therein. Therefore a solid basis has been made for the further open-up of the world market, for the making of Fangyuan brand, for the national industrial progression and for the great target to create a valve magnate of China and step forward to the 50 powerful valve companies of the world.
Slab gate valve: Slab gate and expanding gate, double sealed upstream and downstream design, double block and bleed open and closed design. Size: DN50~DN1400, pressure: PN16~PN420, handwheel, gear, electric, pneumatic.
Fully welded ball valve.
Forged steel valve. Material: A105, LF2, F11, F22, F5, F304, F316, F321 etc.
