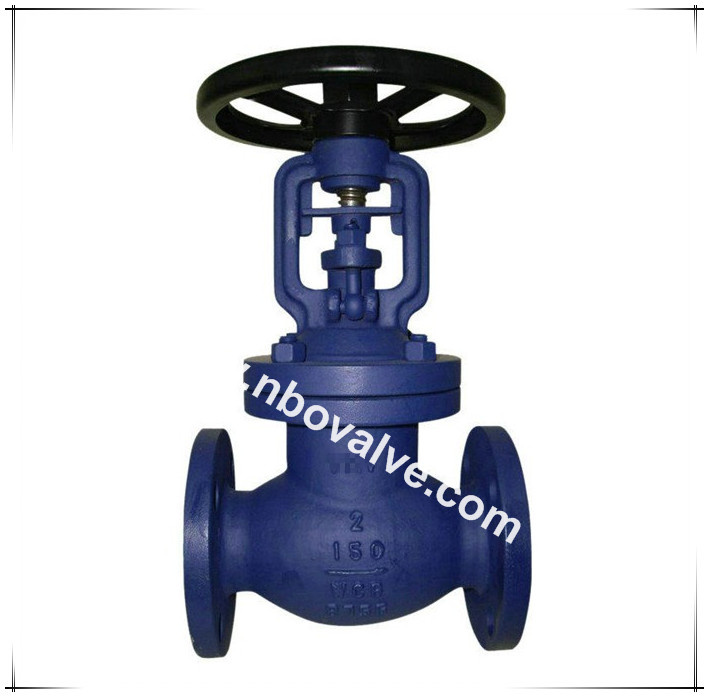

API600 Wcb/304 Bellows Flanged Globe Valve (10"-300#)
| Price: |
US $ 250-2401/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T |
Product Description

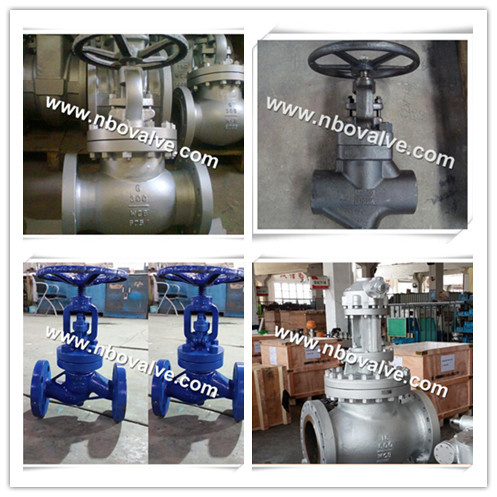

BS 1873 Cast Steel Globe Valve Conform to BS1873, and ASME B16.34.
They are tested according to API 598, and marked as per MSS SP-25
1. Construction is as follows:
| - Regular Port |
| - Outside Screw and Yoke(OS&Y) |
| - Bolted Bonnet with spiral-would gasket, threaded and seal welded bonnet and threaded and pressure seal bonnet |
| - Backseat |
| - Solid Disc(Plug, Ball/Spherical, Throttling) |
| - Butt Weld Ends to ASME B16.25 |
- Flanged Ends to ASME B16.5 and B16.47 A/B
|
Pressure: PN 1.6mpa--PN 16 mpa
Temperature: -29 ~+350C
Pressure Sealing Globe Valve:Pressure: Class 600--Class 2500
Size: 2"--12"Main parts & Materials:
| Part Names | Part Materials |
| Body | WCB | LCB | WC6 | CF8 | CF8M | CF3 | CF3M | C83600/C95800 |
| Bonnet | WCB | LCB | WC6 | CF8 | CF8M | CF3 | CF3M | C83600/C95800 |
| Disc/Ball/Wedge | WCB | LCB | WC6 | CF8 | CF8M | CF3 | CF3M | C83600/C95800 |
| Stem | F6a | F304 | F6a | F304 | F316 | F304L | F316L | C83600/C95800 |
| Seat/Seat Ring | 13%Cr | SS304 | 13%Cr | SS304 | SS316 | SS304L | SS316L | C83600/C95800 |
| Packing | Graphite/PTFE |
| Gasket | SS304+Graphite/SS304+Graphite |
| Bolts/Nuts | B7/2H | L7/4 | B16/4 | B8/8 | B8M/8M | B8/8 | B8M/8M | B8M/8M |
| Suitable Medium | W.O.G etc. | HNO3, CH3OOH etc. | Sea Water etc. |
| Suitable Temperature | -29~425 °C | -46~340 °C | -46~340 °C | -196~427 °C | -196~427 °C | -196~427 °C | -196~427 °C | -29~220 °C
|
The Standard and Material can be Customized.Quality Test:
Our Recently Exhibitons:The OTC exhibition ( May, 2015 Houston)The Valve World Expo ( Sep. 2014,German)
The MIOG exhibition ( May, 2014, Russia)
The OTC exhibition ( May, 2015, US)
The Valve Word Expo ( Sep. 2013, China)
Welcome to contact us, once you have any request.| Size: | 1/2"-16", DN15-DN400
|
| Pressure: | 150LB-2500LB, PN16-PN250, 10K-40K
|
| Connection end: | RF, RTJ, BW, SW, NPT
|
| Standards: | API, DIN, GB, JIS, BS, etc.
|
| Raw material: | WCB, A105, CF8, 304, F11, etc.
|
| Operator: | Handwheel, Gear operated , Electric operated, etc.
|
| Prod Model: |
WJ41Y |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Structure: |
Through Way Globe Valve |
| Sealing Form: |
Bellows Globe Valve |
| Stem Thread Position: |
Outside Screw Stem Globe Valve |
| Application: |
Bellows Globe Valve |
| Standard: |
JIS |
| Material: |
Cast Steel, Stainless Steel.Alloy.etc.. |
