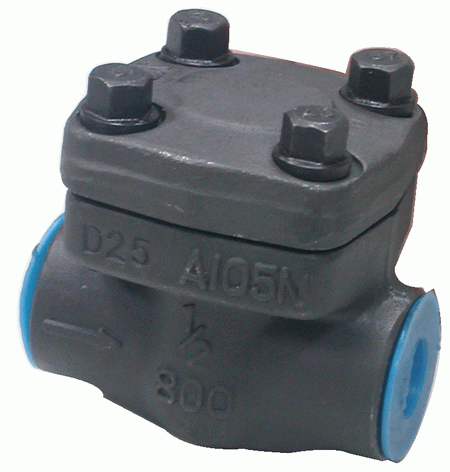

API602 Lift Check Valve Thread (FCAXTH-LF)
| Price: |
Negotiable |
| Trade Terms: |
by sea, by air |
| Min Order: |
300 |
| Pay Type: |
L/C,T/T |
DESIGN DESCRIPTION:
* LIFT TYPE;
* BOLTED COVER;
* OPTIONAL: WELD COVER;
* SPRING LOADED DISC OR PISTON DISC;
* CONNECTRION: THREADED END, SOCKETED END
* THREAD TYPE(NPT, BSPT, DIN ENDS)
* MATERIAL: A105, F304, F316, F11, F22, F304L, F316L
| WORKING TEMPERATURE |
| MATERIAL | CELSIUR SCALE | FAHRENHEIT |
| CARBON STEEL | -29 0 C~425 0 C | 6 0 F~822 0 F |
| STAINLESS STEEL | -40 0 C~550 0 C | 15 0 F~1047 0 F |
GENERAL DESIGN SPECIFICATIONS:
| ITEM | CLASS 600 | CLASS 800 | CLASS 1500 |
| MANUFACTURE | API 602 | API 602 | API 602 |
| PRESSURE-TEMPERATURE RATINGS | ANSI B16.34 | ANSI B16.34 | ANSI B16.34 |
| END TO END | ANSI B16.10 | ANSI B16.10 | ANSI B16.10 |
| END THREAD | ANSI B 1.20.1 | ANSI B 1.20.1 | ANSI B 1.20.1 |
| SOCKET-WELDING | ANSI B 16.11 | ANSI B 16.11 | ANSI B 16.11 |
| INSPECTION AND TEST | API 598 |
| ANSI | SHELL (WATER) | SEAT (WATER) | SEAT (AIR) | BACK SEAT (WATER) |
| CLASS 600 | 15.3MPA | 2225PSI | 11.2MPA | 1630PSI | 0.6MPA | 80PSI | 11.2MPA | 1630PSI |
| CLASS 800 | 21MPA | 3000PSI | 15.4MPA | 2200PSI | 0.6MPA | 80PSI | 15.4MPA | 2200PSI |
| CLASS 1500 | 38.7MPA | 5500PSI | 28.1MPA | 4000PSI | 0.6MPA | 80PSI | 28.1MPA | 4000PSI |
TEST PRESSURE TO API598
| ANSI | SHELL (WATER) | SEAT (WATER) | SEAT (AIR) | BACK SEAT (WATER) |
| CLASS 600 | 15.3MPA | 2225PSI | 11.2MPA | 1630PSI | 0.6MPA | 80PSI | 11.2MPA | 1630PSI |
| CLASS 800 | 21MPA | 3000PSI | 15.4MPA | 2200PSI | 0.6MPA | 80PSI | 15.4MPA | 2200PSI |
| CLASS 1500 | 38.7MPA | 5500PSI | 28.1MPA | 4000PSI | 0.6MPA | 80PSI | 28.1MPA | 4000PSI |
TRIMS SPECITIED DUE TO TABLE 3:
| |
|---|
| DISC SEAT SURFACE PART NO.2 | BODY SEAT SURFACE PART |
| F6 | F6 |
| STELLITE | STELILITE |
| F6 | STELILITE |
| F304 | F304 |
| F316 | F316 |
| MONEL | MONEL |
| ALLOY 20 | ALLOY 20 |
| HASTELLOY B | HASTELLOY B |
| OTHER MATERIALS ARE AVAILABLE UPON REQUEST. |
PARTS AND MATERIAL (ASTM)
| NO. | PARTS NAME | MATERIALS |
| 1 | BODY | ASTM A105 | ASTM F304 | ASTM F316 | ASTM F304L | ASTM F316L |
| 4 | GASKET | GRAPHITE+304 | GRAPHITE+316 |
| 5 | CAP | ASTM A105 | ASTM F304 | ASTM F316 | ASTM F304L | ASTM F316L |
| 6 | CAP BLOT | ASTM A193 B7 | ASTM A193 B8 |
| OTHER MATERIALS ARE AVAILABLE UPON REQUEST. |
DIMENSIONS LIST(UNIT:MM):
| CLASS 600 |
| DN | SIZE | D | H | L | WT (KG) |
| STD | FULL | STD | FULL |
| 15 | 10 | 1/2” | 3/8” | 10 | 61 | 79 | 1.2 |
| 20 | 15 | 3/4” | 1/2” | 13 | 61 | 92 | 1.4 |
| 25 | 20 | 1” | 3/4” | 17.5 | 78 | 111 | 2.3 |
| 32 | 25 | 1-1/4” | 1” | 23 | 84 | 120 | 3.9 |
| 40 | 32 | 1-1/2” | 1-1/4” | 30 | 103 | 120 | 5.6 |
| 50 | 40 | 2” | 1-1/2” | 35 | 118 | 140 | 8.9 |
| | 50 | | 2” | 46 | 132 | 178 | 12.5 |
| CLASS 800 |
| DN | SIZE | D | H | L | WT (KG) |
| STD | FULL | STD | FULL |
| 15 | 10 | 1/2” | 3/8” | 10 | 61 | 79 | 1.2 |
| 20 | 15 | 3/4” | 1/2” | 13 | 61 | 92 | 1.4 |
| 25 | 20 | 1” | 3/4” | 17.5 | 78 | 111 | 2.3 |
| 32 | 25 | 1-1/4” | 1” | 23 | 84 | 120 | 3.9 |
| 40 | 32 | 1-1/2” | 1-1/4” | 30 | 103 | 120 | 5.6 |
| 50 | 40 | 2” | 1-1/2” | 35 | 118 | 140 | 8.9 |
| | 50 | | 2” | 46 | 132 | 178 | 12.5 |
| CLASS 1500 |
| DN | SIZE | D | H | L | WT (KG) |
| STD | FULL | STD | FULL |
| 15 | 10 | 1/2” | 3/8” | 10 | 41 | 111 | 2.1 |
| 20 | 15 | 3/4” | 1/2” | 13 | 68 | 111 | 2.3 |
| 25 | 20 | 1” | 3/4” | 17 | 81 | 130 | 3.6 |
| 32 | 25 | 1-1/4” | 1” | 23 | 101 | 152 | 7.9 |
| 40 | 32 | 1-1/2” | 1-1/4” | 30 | 108 | 172 | 9.8 |
| 50 | 40 | 2” | 1-1/2” | 38 | 108 | 220 | 9.8 |
| Prod Model: |
FCAXTH-LF |
| Function: |
Sfcv Rubber Lobe |
| Material: |
Stainless Steel |
| Connection Form: |
Thread |
