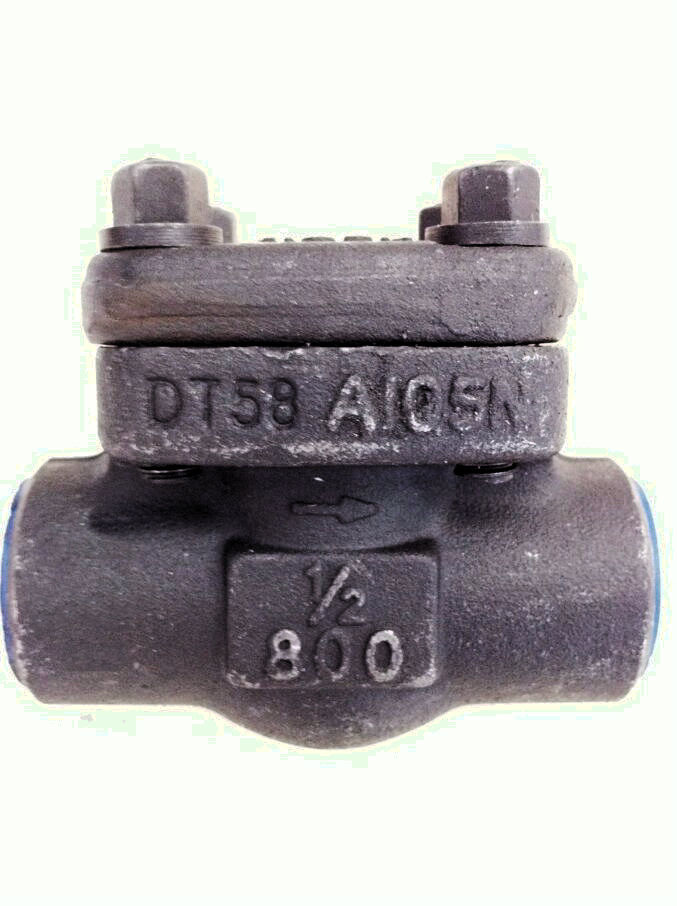

API602 Sw Forged Piston Check Valve (H11H-800C-DN20)
Price: |
US $ 10/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,Paypal,Western Union |
API602 SW Forged Piston Check Valve(H11H-800C-DN20)
Specifications
Size: 1/2"-2"
Class: 800Lb-4500Lb
Design and Manufacture: API602, BS5352
Size: 1/2"-2"
Pound Class: 800Lb-4500Lb
Design and Manufacture: API602, BS5352
Socket-Weld Dimension: ANSI B16.11
End Connection Std.: ANSI B1.20.1
Pressure & Temperature Ratings: ASME B16.34
Test Standard: API 598
Material: A105. LF2, F5, F11, F22, 304/L, 316/L, F347, F321 F51, Monel, Alloy 20
Name | Forged Steel Y Type Check Valve |
1. Size | 1/2" --2" |
2. Pressure | 150LB--2500LB |
3. Material | A105. LF2, F5, F11, F22, 304/L, 316/L, F347, F321 F51, Monel, Alloy 20 |
4. Design and Manufacture | API602, BS5352 |
5. Socket-Weld Dimension | ANSI B16.11 |
6. End Connection Std | ANSI B1.20.1 |
7. Pressure & Temperature Ratings | ASME B16.34 |
8. Test Standard | API 598 |
|
|
Piston Check Valves
Standard Material Specifications
NO. | Part Name | CS to ASTM | AS to ASTM | SS to ASTM |
Type A105 | Type F22 | Type F304(L) | Type F316(L) |
1 | Body | A105 | A182 F22 | A182 F304(L) | A182 F316(L) |
2 | Piston Disc | A276 410 | A276 304 | A276 304(L) | A276 316(L) |
3 | Gasket | Corrugated SS + graphite | SS + PTFE |
4 | Bonnet | A105 | A182 F22 | A182 F304 L | A182 F316(L) |
5 | Nameplate | SS |
6 | Bolt | A193 B7 | A193 B16 | A193 B8M | A193 B8M |
7 | Ball | A182 F304 | A182 F304 | A182 F304 | A182 F304 |
Suitable Medium | W.O.G.etc | W.O.G.etc | HNO3CH3OOH etc |
Suitable Temperature | -29~425 | -29~550 | -29~180 |
Note: Other materials are available upon request.
Dimensions (mm) and Weights (Kg) 800Lb
NPS | Conv. | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | |
Full | | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" |
L | 79 | 79 | 92 | 111 | 120 | 152 | 172 | 200 |
H | 61 | 61 | 65 | 79 | 95 | 103 | 118 | 132 |
Weights | Bolted | 1.4 | 1.2 | 1.5 | 3.1 | 3.9 | 5.6 | 8.9 | 12.5 |
Welded | 1.1 | 1.0 | 1.2 | 2.9 | 3.3 | 4.9 | 8.1 | 10.9 |
Dimensions (mm) and Weights (Kg) 900Lb~1500Lb
NPS | Conv. | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | |
Full | | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" |
L | 92 | 111 | 111 | 120 | 152 | 172 | 200 | 220 |
H | 65 | 79 | 79 | 97 | 104 | 120 | 139 | 215 |
Weights | Bolted | 1.6 | 3.4 | 3.3 | 5.5 | 6.0 | 9.2 | 12.9 | 16.2 |
Welded | 1.3 | 3.2 | 3.1 | 4.8 | 5.4 | 8.5 | 11.2 | 14.3 |
Prod Model: |
H11H-800C-DN20 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Body: |
A105 |
Connection Form: |
Welding |
Structure: |
Swing |
Material: |
Cast Steel |
Function: |
Nrvz Silence |
Application: |
Household Usage |
China zhongya valve Co., Ltd. is a collection research and development, manufacturing, sales and integrated high-tech enterprises. The company is located in NO. 3511 Yongqiang Avenue Longwan District Wenzhou city Zhejiang China...The company introduces advanced technology from abroad, the modern scale production, and equips Germany processing center, Taiwan CNC machine, super precision vertical lathe, automatic painting line and special equipment, machining center, CNC machine tools, special molding, slinging cleaning, passivation treatment, ultrasonic cleaning equipment and a variety of valve pressure testing equipments. As well as equipped with photoelectric direct reading analyzer, thickness tester, radiographic, ultrasonic and liquid penetrant ect, non-destructive testing equipment to ensure that the company's products can be manufactured strictly in accordance with clients'requirements of related standard, to meet the different demands of them.
The company mainly in producing gate valve, globe valve, ball valve, check valve, butterfly valve, hydraulic control valve, supply and drainage water equipment and a variety of special non-standard special valves.
The company implements API (USA) and EN (European Union), ISO (international organization for standardization), BS (British), JIS (Japan) and GB (China) and other major advanced industrial countries and the latest standards of the national standard designing production. Valve body materials are used of carbon steel, alloy steel, chrome molybdenum steel, stainless steel, low-temperature steel, high-temperature steel, nickel base and cobalt base alloy and other materials, and materials specified by the user. Products are widely used in petroleum, chemical, natural gas, coal chemical industry, electric power, shipbuilding, pharmaceutical, paper making, beer industry, food, building, water supply, prevent pollution, and a large number of them are exported to the United States, Europe, Russia, Middle East, Japan, South Korea and southeast Asia and other regions.
