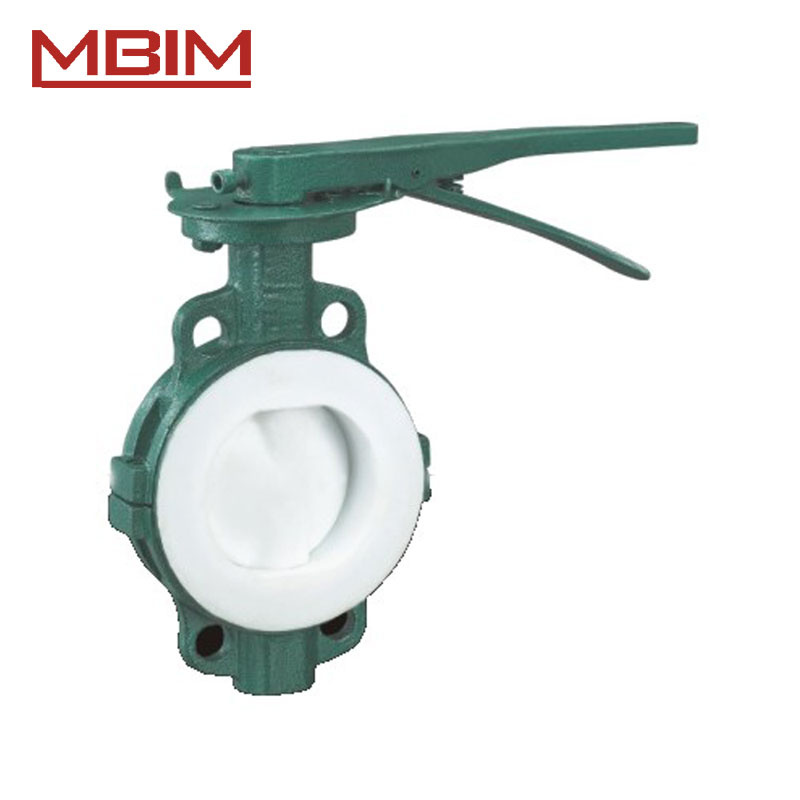

API609 Lined Butterfly Valve (DN40-DN1200)

API609 Lined Butterfly Valve (DN40-DN1200)
Price: US $ 50-5000/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Overview:
MBIM Lined Butterfly Valve,High Performance,Tight Shut Off,Bi-directional,Flanged,Wafer or Lug Style,Slim Seal,Integral Stem & Centric Disc Design,Lever/Gear Operated Type suitable for chemical corrossion & temperature resistance.
Size Range:40mm to 1200mm
Industries:
Acid Transfers, Caustic & Chlor-Alkali, Chemicals, Pharmaceuticals, Water Treatment

Feature & Benefits:
1.Standard Design
MBIM Lined Butterfly Valves are design in accordance with face to face dimension of
GB/T12221 Specification and suitable to mount between two flanges of ANSI B 16.5 # 150 flanges which permits this valves to replace with any standard Butterfly valve without altering existing piping.
2.PTFE,FEP,PFA,PVDF,PE,PO or PP Body & Disc Liner
The nonstick and nonporosity properties of the liner ensure high performance of the valve under highly corrosive chemicals in conjunction with high pressure and temperature.
3.Locked in Disc Liner
The liner of this Butterfly valve is securely locked in to cast hole of disc,which helps to prevent liner to collapse in vacuume condition and blow out in high pressure conditions regardless of high temperature.
4.Tight Shut Off
A silicon backing strip is provided inside deep machined body groove for the liner, to resist against the disc edge which creates tight shut-off.

Lining Specifications:
Lining Material
We offer lining materials like PTFE,FEP,PFA,PVDF,PE,PO,PP.
Temperature:
PTFE Max : 260°C
FEP Max : 204°C
PFA Max : 260°C
PVDF Max : 140°C
PO Max : 80°C
PE Max : 70°C
PP Max : 120°C
Lining Thickness
Min. 3.0mm
Spark Test
Body liners & all wetted parts are spark tested at 15,000 Volts
The body material is generally,Grey Cast Iron,Cast Ductile Iron,Cast Steel and alternatively we
offer completely SS304,SS304lL,SS316,SS316L.

Standard Followed:
Manufacturing:API 6D
Testing:API 598
Flange dimensions:ANSI B16.5
Face to Face:GB/T 12221

Optional Accessories:
The MBIM Lined Ball Valve can be offered with following optional accessories.
Positioner
Pneumatic Actuator
Electrical Actuator
Limit Switch
Gear Box
Wrench
Air Filter Regulator

Prod Model: DN40-DN1200
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: Dn50-Dn1200
Operation: Worm-Gear Operated Butterfly Valve
Work Pressure: Low Pressure (',Pn<1.6mpa)
Material Of Seal Surface: Soft Sealed
Connection Form: Wafer
Structure: Centre Sealing
Seal Form: Force Sealed
Working Temperature: Medium Temperature (',120??C
Application: Household Usage
