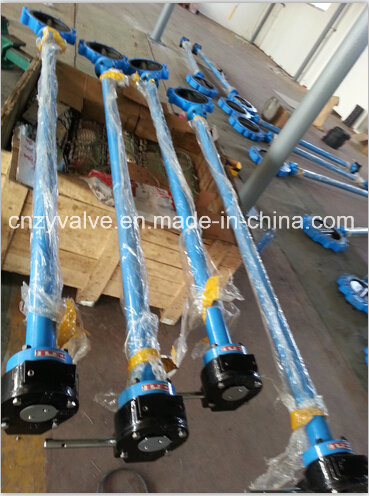

API609 Lug Butterfly Valve 150lb with Ext-Stem Butterfly Valve
Price: |
US $ 800/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,Western Union |
Features
L Compact structure, convenient manufacture;
L Easy handling, 90 degrees rotation with quick on/off switch;
L Stable flow regulating, good regulating characteristics;
L Low flow resistance, large fluid;
L Numbers of on/off times up to tens of thousands; Long life service;
L Various type of parts materials opted for use in different medium;
L Both inner and outer surfaces of the valve body are electro-statically coated with epoxy resin powder which is environmentally friendly and non-toxic, directly applying to living and potable water, as well as food and drug industry;
L Symmetrical structure in both sides, duplex use, especially applied to in condition with duplex sealing and easy corrosion of valve body;
| worm gear lugged butterfly valve |
Size: | DN50-DN1600 |
End flange: | ANSI B 16.1, EN 1092, AS 2129 |
Face to face: | ANSI B 16.10 |
Top flange: | ISO 5211 |
Normal pressure: | PN1.0/1.6MPa(150/200PSI) |
Body: | CI/DI/WCB/ALB/CF8/CF8M |
Disc: | DI/ALB/Rubber lined Disc/1.2501/1.4529/CF8/Hastelloy Alloy/Monel |
Stem: | 416/304/431/17-4PH |
Seat: | NBR/Hypalon/EPDM/Neoprene/NR/Wear-Resistant EPDM/Viton/Silicon/Heat-Resistant EPDM/White EPDM/EPDMPTFE |
Suitable temperature: | -25~120 |
Medium: | Fresh water, sewage, sea water, air, vapor, food, medicine, oils, alkalis, salt etc. |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Size: |
2"-64:" |
End Flange: |
ANSI B 16.1, En 1092, as 2129 |
Type: |
Lug |
Colour: |
Blue |
Connection Form: |
Lug Support |
Structure: |
Three-Eccentric Sealing |
Seal Form: |
Force Sealed |
Work Pressure: |
Mid-Pressure (',2.5mpa< Pn <6.4mpa) |
Working Temperature: |
Medium Temperature (',120??C
|
Material Of Seal Surface: |
Soft Sealed |
Application: |
Household Usage |
China zhongya valve Co., Ltd. is a collection research and development, manufacturing, sales and integrated high-tech enterprises. The company is located in NO. 3511 Yongqiang Avenue Longwan District Wenzhou city Zhejiang China...The company introduces advanced technology from abroad, the modern scale production, and equips Germany processing center, Taiwan CNC machine, super precision vertical lathe, automatic painting line and special equipment, machining center, CNC machine tools, special molding, slinging cleaning, passivation treatment, ultrasonic cleaning equipment and a variety of valve pressure testing equipments. As well as equipped with photoelectric direct reading analyzer, thickness tester, radiographic, ultrasonic and liquid penetrant ect, non-destructive testing equipment to ensure that the company's products can be manufactured strictly in accordance with clients'requirements of related standard, to meet the different demands of them.
The company mainly in producing gate valve, globe valve, ball valve, check valve, butterfly valve, hydraulic control valve, supply and drainage water equipment and a variety of special non-standard special valves.
The company implements API (USA) and EN (European Union), ISO (international organization for standardization), BS (British), JIS (Japan) and GB (China) and other major advanced industrial countries and the latest standards of the national standard designing production. Valve body materials are used of carbon steel, alloy steel, chrome molybdenum steel, stainless steel, low-temperature steel, high-temperature steel, nickel base and cobalt base alloy and other materials, and materials specified by the user. Products are widely used in petroleum, chemical, natural gas, coal chemical industry, electric power, shipbuilding, pharmaceutical, paper making, beer industry, food, building, water supply, prevent pollution, and a large number of them are exported to the United States, Europe, Russia, Middle East, Japan, South Korea and southeast Asia and other regions.
