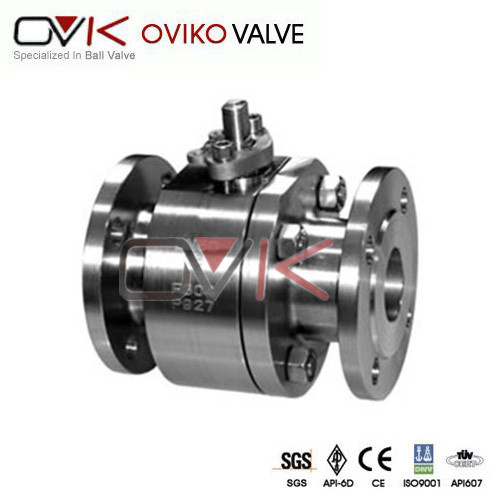

API6d Forged Floating Ball Valve with High/ Low Temperature

API6d Forged Floating Ball Valve with High/ Low Temperature
Price: US $ 20-20000/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P

FORGED FLOATING BALL VALVE
STRUCTURAL FEATURES
1. Special Seat Design
The floating ball valve adopts the design of flexible seal ring structure. When the medium  pressure is lower, the contact area of seal ring and ball is smaller. so higher sealing ratio is formed at the place where the seal ring and ball contact to ensure reliable sealing. When the medium pressure is higher, the contact area of seal and ball becomes bigger along with the elastic deformation of seal ring, so the seal ring can endure higher medium thrust without being damaged.
2. Fireproof Structure Design
In case of fire during the use of valve, the seat ring made of PTFE or other non-metal materials will be decomposed or damaged under high temperature and cause higher leakage. The fireproof seal ring is set between ball and seat so that after the valve seat is burnt, the medium will push the ball rapidly towards the downstream metal seal ring to form the auxiliary metal to metal sealing structure, which can effectively control valve leakage. In addition, the middle flange sealing gasket is made of metal wound gasket, which can ensure sealing even under high temperature. The fireproof structure design of floating ball valve conforms to requirements in API 607,spi 6FA,BS 6755 and other standards.


3.Reliable Sealing Of Valve Stem
The stem is provided with the shoulder at its bottom so that it will not be blown out by the medium even under the extreme conditions such as abnormal pressure rise inside the valve cavity, failure of gland plate and etc. In addition, to avoid leakage after the stem packing is burnt in case of fire, the thrust bearing is set at the place where the stem shoulder and body contact to form a reverse sealing seat. The sealing force of the reverse seal will increase according to the increase of medium pressure, so as to ensure reliable stem sealing under various pressure, prevent leakage and avoid accident spreading.

The stem adopts V type packing sealing structure. The V type packing can effectively change the pressing force and medium force of the gland into the sealing force of the stem.
According to user requirements, the disc spring loaded packing pressing mechanism can be adopted to make the sealing of stem packing more reliable.

4. Anti-static Structure
The ball valve is provided with anti-static structure and adopts the static electricity discharge device to directly form a static channel between the ball and body or form a static channel between the ball and body through the stem, so as to discharge the static electricity produced due to friction during the opening and closing of ball and seat through the pipeline, avoiding fire or explosion that may be caused by static spark and ensuring system safety.

5. Lock And Misoperation Prevention
The manual ball valve can be locked by a lock when it is at the full open or full close position. The 90°open and close positioning piece with lock hole is designed to avoid valve misoperation caused due to handle operation by non-opearators, and it can also prevent valve opening or closing, or other accidents caused by pipeline vibration or unpredictable factors. It is very effective especially for inflammable factors. It is very effective especially for inflammable and explosive oil, chemical and medical working pipelines or field tubing. The part on the head of the stem that is installed with the handle adopts flat design. When the valve is opened, the handle is parallel to the pipeline, so that the opening and closing indications of the valve are guaranteed to have no error.
Design Standards API 6D/ API 608/BS 5351/DIN3357
Pressure-Temperature RatingASME B16.34/BS 5351
Face to faceASME B16.10/ API 6D /DIN EN558.1
Flange Ends ASME B16.5(MSS SP-44)/ASME B 16.47/BS 1560/DIN EN1092.1
Butt-Welding EndsASME B16.25/DIN EN12627
Socket-Welded EndsASME B16.11
Threaded Ends ASME B1.20.1
Inspection and TestAPI6D/API 598/BS 5146/DIN EN12266.1
OperationHand wheel, Gear, Pneumatic, Electrical etc.
Norminal diameter1/2"~48",DN15~DN1200
Pressure ratingCLASS150~ CLASS 2500,PN10-PN420
Material WCB,WCC, LCB, LCC, C5, WC6, WC9, CF8, CF8M, CF3, CF3M,
A105, LF2, LF3, F304, F316, F304L, F316L etc.
 OVIKO GROUP CO.,LTD. was founded in 2004.It located  in Heyi Industrial Zone, Oubei Town, Wenzhou, China,where is the China Pump & Valve hometown.We have more than one hundred empolyees ,including 4 engineers ,5 QC and QA.And we have a professinal ball machining workshop,where can make all kinds of precision balls,including top entry,metal seat and V type balls.On this base,our products range of floating,trunnion,top entry,metal seat,full welded,NPT ends,V type,3-way ball valve,etc.Surely we can design them by customer's special requirements.

We are one of regional leading valves manufacturer, and most of the valves exporting to American and Europe markets.All the valves conform to national and international advanced standards, such as ANSI,BS,DIN,GB, size:1/2"~48",class:150Lb-2500Lb,working temperature-196 degrees celsius to 680 degrees celsius, material including carbon steel,stainless steel, cryogenic service steel,special alloy:Inconel 625,F51,Monel, Titanium, Hastelloy,Etc.With these years effort and good management,we have got API 6D,CE and fire safe API607 certificates.
   We insist on the concept of  " Quality first, prestige important",after continuous innovation and development,the products have been widely used in many fields, range from oil plants, chemical plants, fertilizer plants, smelters, medical factories and power stations,Not only the products sold well in the world's market, but also have enjoyed a good reputation in the markets.With our professonal and experience, offer excellent quality and best service, hope can enlarge your market and obtain a new brilliance in the future.
Prod Model: OVK-150423
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: 0.5"--48"
Pressure: 150lb--1500lb
Designed And Tested: API6d,CE,ISO9001
Main Material: Carbon Steel, Bearing Steel, Stainless Steel
Connection Form: Flange
Channel: Straight Through Type
Structure: Fixed Ball Valve
Type: Fixed Ball Valve
Material: Stainless Steel
Application: Household Usage
OVIKO is one of leading all kinds of ball valve and ball valve parts manufacturers. The products included Trunnion mounted ball valves, floating ball valves, top entry ball valves, fully welded ball valves, metal to metal ball valves, 3 way ball valves, V port ball valves, etc. Also we can make ball valves' parts according to customer drawings.

Our products nominal dia is 1/4"--48". Pressure grade is 150LB-2500LB. Working temperature is -196ºC-450ºC. The material are carbon steel, alloy steel, stainless steel, and so on. To guarantee the products quality, we passed ISO 9001 International Quality Assurance System, CE, API 6D, API607, API6FA, etc. High quality and excellent after-service get our products good market nearly every parts of the world, such as U. S. A, Spain, UK, Italy, Canada, Mexico, MID-east, India, etc. With years of exporting experience, we are good at manufacturing to standards: GB, DIN, ANSI, BS, AS, JIS, ISO, API etc.

We insist on the concept of "Quality first, prestige important", and after continuous innovation and development, the products have been widely used in many fields, range from oil plants, chemical plants, fertilizer plants, smelters, medical factories and power stations. Not only the products sold well in the world's market, but also have enjoyed a good reputation in the markets. We offers the customers with valves of excellent quality and best service, hope to build a new brilliant with you in the future.
