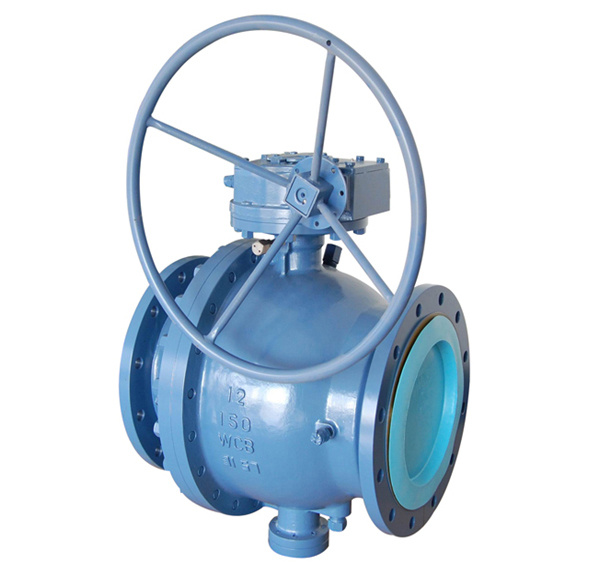

API6d Forged Steel Trunnion Mounted Ball Valve

API6d Forged Steel Trunnion Mounted Ball Valve
Price: US $ 60/Piece
Trade Terms: FOB
Min Order: 2/Piece
Pay Type: L/C,T/T
Applicable standards:
Design: API 608, ANSI B16.34
Face To Face: API 6D, ASME B16.10
Flange end: ANSI B16.5, ASME B16.47
Fire safe: API 607
Testing and inspection: API598, API6D

Forged Steel floating ball valve
Size: 1/2"-12"
Pressure: 150LB-2500lb
Body material: WCB, CF8M, CF8, GR4A, LCB, WC6, WC9, LCC, CF3, CF3M, LF2, LF3, A351 CN7M
Operate: Manual, gear box, electric, neumatic, hydraulic atuators
END: RF, BW

Design description
Double block and bleed design(DBB)
Double stem sealing. The ball can maintain pressure sealing of pipeline when it is closed or fully opened.
Shorter upper sleeve reducces bearing load and operation torue
Limit device ensures the accurate opening and closing position of the valve
The vall and stem are separated so as to reduce stem load. The stem adopts anti-blow-out design.
The sealing surface is inserted into te metal seat by polymer or plastic
The metalbacked self-lubricating PTFE bearing and PTFE thrust washers
Reduce the opening torque and prolong the service life of the valve. Stem leakage can be prevented through the emergency grease fitting.

Nickel and phosphor treatment to the parts can enhance the anticorrosive performance.
The fireproof design of metal wound gasket compased of stainless steel and graphite can prevent external leakage.
Anti-static design
Floating Type
Full bore/Reduced bore
Bolted cover/welded cover
Turn 90 degree opening or close
Detachable seat PTFE/RPTFE
END: RF, BW, SW
Applicable temperature: -196-540
Supply Air: 1Bar to 8Bar

Floating ball valve design feature:
Live loaded gland flang
Live loading is designed to provide gland load retention, compensating for expected in-service consolidation of packing. A set of belleville spring washers are used on each gland stud to help exert a continuous compressive force on the gland follower flange and therefore reduce fugitive emissions from the stem packing. ARITA standard belleville-spring washers are protected by a weatherproof cap to keep them free from environmental contamination, resulting in a long stable life.
Prod Model: Q347
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: 1/2 ''---12''
Application: Piping Applications
Driving Mode: Manual, Gearbox, Chain Wheel, Pneumatic, Electroni
Connection Form: Flange/Butt-Welded/Thread
Channel: Straight Through Type/Tee Type/Angle Type
Structure: Floating/Fixed/Flexible/Oil Seal Ball Valve
Type: Floating/Fixed/Flexible/Tee Type
Material: Forged Steel/Cast Steel/Stainless Steel
Temperature: Low/Normal/High Temperature
Nominal Pressure: ANSI Class 150lb-2500lb
Zhejiang xiongtai valve manufacturing Co., Ltd., eattablished in 1998 and situated in Oubei Yongjia, a China hometown of pump and valve is a plant integrating R&D, production, sales and survi of valves and has abundent strengths and plentiful production experience with a staff of about 200 involving several steel valve and steel valve etc., and has obtained certifications of ISO9001, API6D, TS and so on.
