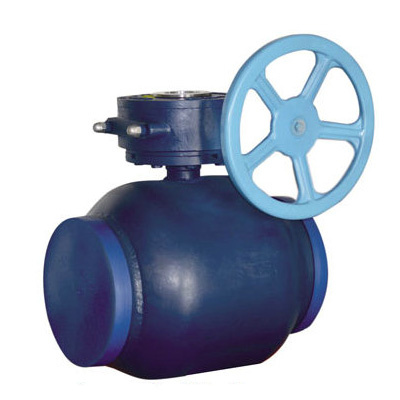

API6d Stainless Steel Full Welded Ball Valve
| Price: |
US $ 10-100/Piece |
| Trade Terms: |
FOB,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Money Gram,Western Union |
Full Welded Ball Valve(Q61F )Main Specification1. Body is adopted for seamless steel pipe to the molding.2. The overall structure of the body can reduce the extremely leakage by the full weld manufacturing process,the weight of the valve is greatly reduced and installed much more conveniently.3. To adopt the spring washer and carbon fiber seal ring,they can support hundreds of times reciprocating motion .Thus there is no leakage to ensure the service life of the valve. 4. The valve sealing can be used continuously without failure in the -40°C to 200°C situation.5. Long stem buried welding ball valve can be deep-seated underground,easy to operate.Normal Feature| Size Range | DN15~DN900 |
| Pressure | PN25~PN40 |
| Material | WCB,WC6,LCB,WC9,CF8,CF8M,CF3 and CF3M |
| Connection | Butt-welding |
| Feature | Full welded ,floating ball,blow-out proof stem,fire durable construction,anti static device,flanged or butt welding ends,avaible with worm gear operator. |
| Temperature | -40C~200ºC |
| Meduim | Water,gas,oil etc. |
| Actuator | Handle, Turbine |
| Application | Oil and gas pipeline
Drainage system
Chemical Plant |
Manufacture Standard
Design standard | API6D,API608 |
| Face to face | ASME/ANSI B 16.10 |
| Butt-weld ends connection | ANSI B 16.25 |
| Inspection and test | API598 |
Why choose us?l Professional manufacturer with many years' experience in this area.
l Best price with superior quality.
l 3-5 hours fast reply.
l OEM service acceptable, customer providing sample for special requirement is accepted.
l Low MOQ with convenient payment, support Western Union,Paypal.
l Meet delievery date in time
| Prod Model: |
Q61H |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Seal Seat Material: |
PTFE |
| Connection Form: |
Welding |
| Channel: |
Straight Through Type |
| Structure: |
Floating Ball Valve |
| Type: |
Floating Ball Valve |
| Application: |
Industrial Usage |
| Material: |
20#Pipe,Ss304 Ball |
Yongjia Jiali Valve Manufacture Co., Ltd. is a professional valve manufacturer located in China famous Pump$Valve Town-Oubei. The main of our products are Gate Valves, Globe Valves, Check Valves, Ball valves, Plug valves, Butterfly valves, Strainer and other special valves applied broadly in petroleum, chemical, metallurgical and power station industries.
Established in 2004, Jiali Valve has grown up into a professional manufacturer integrating valve design, production, sale and service. The company covers more than 60series and thousands of specifications which strictly comformed to international advanced standards such as API, ANSI, BS, DIN, NF, JIS, JPI, GB, JB and so on. We can also casting and processing valves according to the client's special requirement.
The Products nominal diameter (NPS), 1/4"-44"(DN8-DN1400);
Pressure class from 150LB to 2500LB (PN0.1MPa-32MPa);
Operating temperature: -196° C~680° C;
Main materials includes WCB, WC6, WC9, C5, C12, LCB, LCC, CF8, CF8M, CF3, CF3M, CF8C, etc.

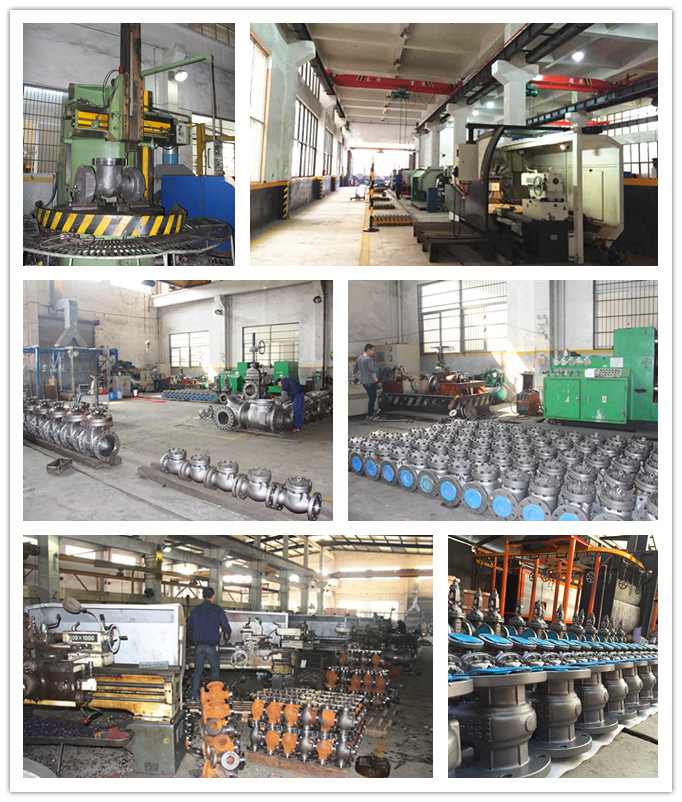

Jiali Valve has established a perfect quality control in order to ensure excellent quality and service. The company has a sophisticated processing center, testing and inspecting center, chemical composition analysis center, mechanical performance test, nondestructive inspection, liquid pressure test, low leak test as well as various special facilities. Just because of these strict quality control system and advanced technical support, our company are highly recognized and trusted by our customers including Europe, America, Middle East, Southeast Asia. etc
Technology innovation, strict quality control, perfect after-sales service, Jiali valve casts higher quality valves, we are always doing the best. We warmly welcome clients all over the world come to visit us to create a brilliant future.
