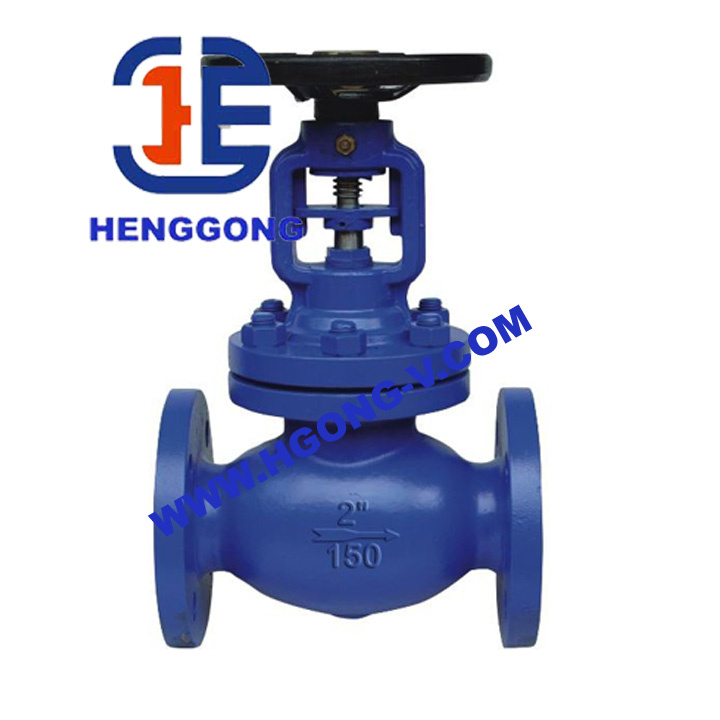

Apl Cl150 Bellow Seat Globe Valve

Apl Cl150 Bellow Seat Globe Valve
Price: US $ 100/Piece
Trade Terms: FOB,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T

Product Description
Manual Operated Bellows Sealed Globe Valve (WJ41H)

Technical Specifications:

Design and Manufacture: DIN3356, BS160, BS5160 or API602

Face to Face Dimension: DIN3202 or ANSI B16.10,

Flanged Dimension: DIN2543-2545 or ANSI B16.5

Socketed Ends to ANSI B16.11

Inspection and Test: DIN3230, API 598 or MSS SP-117

Size Range of Bellow Sealed Globe Valve: 1/2" to 12"N. B. (DN15~DN300)

Bellow Sealed Globe Valve Pressure Ratings: ANSI 800, 900, 1500 (PN16~PN40)

Bellow Sealed Globe Valve Materials Available in: CS-G25, A105, F304, F316



Design and Manufacture
DIN3356, BS160, BS5160 or API602
Face to Face DimensionDIN3202 or ANSI B16.10,
Flanged DimensionDIN2543-2545 or ANSI B16.5
Socketed EndsANSI B16.11
Inspection and Test:DIN3230, API 598 or MSS SP-117

Prod Model: WJ41H
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Bellow Globe Valve: DIN
Structure: Through Way Globe Valve
Sealing Form: Bellows Globe Valve
Stem Thread Position: Outside Screw Stem Globe Valve
Application: Bellows Globe Valve
Standard: JIS
Established in 1998, HengGong valve Group Co., Ltd., is located in Dongou Industrial Area in Oubei Town of Yongjia County, the cradleland of "China Pump and Valve", which enjoys favorable geographical location and convenient transportation. Presently, our company is covering an area of 3000 square meters, and owns 10 senior engineers, 20 technicians and more than 150 staff. The company has strong technical capabilities and high-quality personnel teams.

Our company owns advanced manufacturing technologies, testing equipments. Moreover, our products have passed the ISO9001 Quality System Certification and Pressure Equipment Direction EC Certification. From design to delivery, in each procedure, products are controlled strictly in accordance with ISO9001(CQC) and the quality of products produced by our company is all insured by People's Insurance Company of China.

The company is specialized in production of a series of products such as knife style gate valves, various types of metal hard sealed ball valves, PTFE soft sealed ball valves, high temperature and pressure wrought steel ball valves and eccentric semispherical valves, three way valves(T-pattern, Y-pattern and L-pattern), API valves, forged steel valves, butterfly valve, globe valves, check valves and more, which are designed and manufactured according to international standards like GB, ANSI/API, JIS, DIN and etc. The main body material of produced valves.

Includes: WCB, WC1, WC6, WC9, CF8, CF8M, CF3, CF3M, 12CrMoV, 15Cr1Mo1V, LCB, LF and so on. The nominal diameter vary from 10mm to 1000mm and from 1/2" to 24". Operating pressure vary from 10MPa to 160MPa and 150Lb to 2500Lb. There are many driving modes including manual drive, helical wheel drive, electric drive, pneumatic power, hydraulic power, combined drive by electricity and liquid. All sorts of non-standard valves can be designed and produced in accordance with customers' request.
